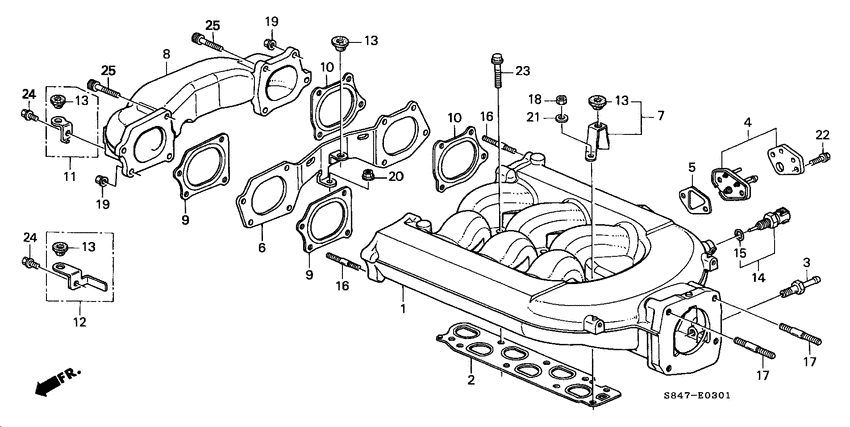

Intake manifold (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0IV6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- immobilizer
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17100-P8A-A11 ManifoldINTAKE 4800071 - |
17100-P8A-A11 |
US $766.72 |
||
|
1
|
1
17100-P8A-A10
Manifold
00000000 - 4800070 |
17100-P8A-A10 |
— | ||
|
2
|
2
17105-P8A-A01 GasketINTAKE MANIFOLD (NIPPON LEAKLESS) |
17105-P8A-A01 |
US $49.92 |
||
|
4
|
4
17111-P8A-A00 Plate assy.BOOST |
17111-P8A-A00 |
US $17.66 |
||
|
5
|
5
17112-P8A-A01 GasketBOOST PLATE |
17112-P8A-A01 |
US $4.34 |
||
|
6
|
6
17132-P8A-A00
Stay comp
|
17132-P8A-A00 |
— | ||
|
7
|
7
17133-P8A-A00
Stay assy. a
|
17133-P8A-A00 |
— | ||
|
8
|
8
17140-P8A-A10
Chamber b
|
17140-P8A-A10 |
— | ||
|
9
|
9
17144-P8A-A01 GasketFR. INTAKE MANIFOLD STAY (NIPPON LEAKLESS) |
17144-P8A-A01 |
US $5.74 |
||
|
10
|
10
17145-P8A-A01 GasketRR. INTAKE MANIFOLD STAY (NIPPON LEAKLESS) |
17145-P8A-A01 |
US $5.74 |
||
|
11
|
11
17148-P8A-A00
Stay b
|
17148-P8A-A00 |
— | ||
|
12
|
12
17149-P8A-A00
Stay c
|
17149-P8A-A00 |
— | ||
|
13
|
13
17213-P8A-A00 RubberINTAKE MANIFOLD COVER MOUNTING |
17213-P8A-A00 |
from US $1.85 |
||
|
14
|
14
37880-P0A-A02 Sensor assyAIR TEMP |
37880-P0A-A02 |
US $50.99 |
||
|
15
|
15
91303-P0A-A02 O-ring |
91303-P0A-A02 |
from US $1.40 |
||
|
16
|
16
92900-06022-0B BoltSTUD, 6X22 |
92900-06022-0B |
from US $0.59 |
||
|
17
|
17
92900-08050-1B BoltSTUD, 8X50 |
92900-08050-1B |
US $1.04 |
||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
19
|
19
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
20
|
20
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
21
|
21
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
22
|
22
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
23
|
23
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.81 |
||
|
24
|
24
96600-060-120-8 BoltSOCKET, 6X12 |
96600-060-120-8 |
from US $0.62 |
||
|
25
|
25
96600-060-250-7 BoltSOCKET, 6X25 |
96600-060-250-7 |
from US $0.78 |
