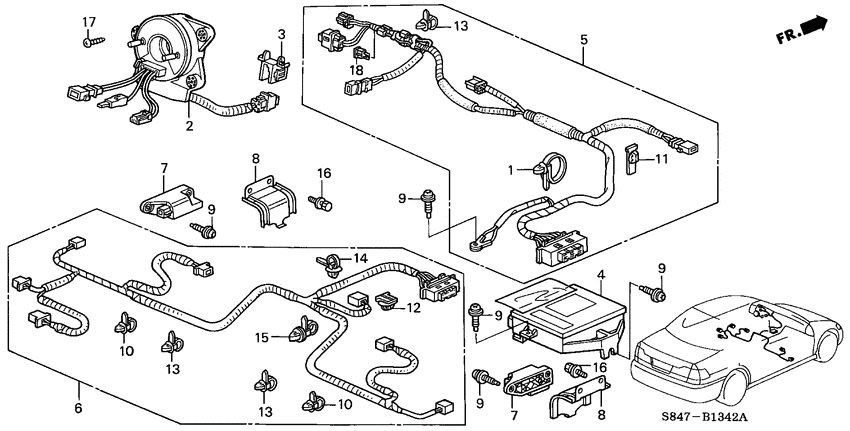

Srs unit (SIDE SRS; LH) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0IV6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- immobilizer
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
77900-S84-X41
Reel assy
|
77900-S84-X41 |
— | ||
|
3
|
3
77907-S84-A01 HolderCONNECTOR (4P) |
77907-S84-A01 |
US $2.59 |
||
|
4
|
4
77960-S84-A95
Srs unit
|
77960-S84-A95 |
— | ||
|
5
|
5
77961-S84-A12
Harness
|
77961-S84-A12 |
— | ||
|
7
|
7
77970-S84-A93 Sensor assySIDE IMPACT |
77970-S84-A93 |
US $93.44 |
||
|
8
|
8
77971-S84-A00
Protector
|
77971-S84-A00 |
— | ||
|
9
|
9
90137-S84-A01 BoltTORX EARTH, 6X20 |
90137-S84-A01 |
from US $2.69 |
||
|
11
|
11
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
13
|
13
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
16
|
16
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
17
|
17
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
