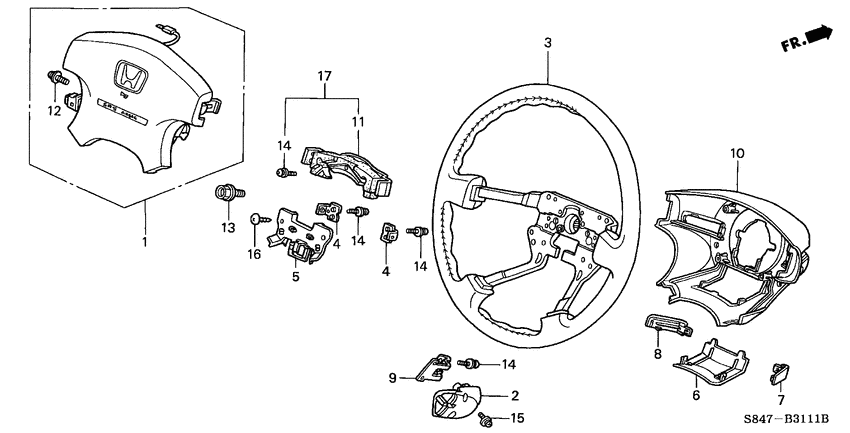

Steering wheel (SRS; V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0IV6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- immobilizer
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06770-S84-G11ZC
Module kit
|
06770-S84-G11ZC |
— | ||
|
1
|
1
06770-S84-G11ZB
Module kit
|
06770-S84-G11ZB |
— | ||
|
2
|
2
36770-S84-A11
Switch assy
|
36770-S84-A11 |
— | ||
|
3
|
3
78501-S87-A71ZC
Body
|
78501-S87-A71ZC |
— | ||
|
3
|
3
78501-S87-A71ZB
Body
|
78501-S87-A71ZB |
— | ||
|
4
|
4
78508-S87-A61 BracketMODULATOR |
78508-S87-A61 |
US $3.15 |
||
|
5
|
5
78516-S84-S61 PlateHOOK |
78516-S84-S61 |
US $4.62 |
||
|
6
|
6
78512-S84-A61ZC
Cap c
|
78512-S84-A61ZC |
— | ||
|
6
|
6
78512-S84-A61ZB
Cap c
|
78512-S84-A61ZB |
— | ||
|
7
|
7
78513-S84-A61ZB
Cap
|
78513-S84-A61ZB |
— | ||
|
7
|
7
78513-S84-A61ZC
Cap
|
78513-S84-A61ZC |
— | ||
|
8
|
8
78514-S84-A61ZC
Cap
|
78514-S84-A61ZC |
— | ||
|
8
|
8
78514-S84-A61ZB
Cap
|
78514-S84-A61ZB |
— | ||
|
9
|
9
78515-S84-A81 PlateSWITCH SETTING |
78515-S84-A81 |
US $4.13 |
||
|
10
|
10
78518-S84-S81ZC
Cover
|
78518-S84-S81ZC |
— | ||
|
10
|
10
78518-S84-S81ZB
Cover
|
78518-S84-S81ZB |
— | ||
|
11
|
11
78520-S87-S81
Damper
|
78520-S87-S81 |
— | ||
|
12
|
12
90134-S04-A81 BoltHEX., 6X12 |
90134-S04-A81 |
US $1.95 |
||
|
13
|
13
90161-SV4-003 BoltSTEERING HANDLE |
90161-SV4-003 |
US $3.03 |
||
|
14
|
14
93892-050-121-7 Screw-washer5X12 |
93892-050-121-7 |
US $0.44 |
||
|
15
|
15
93893-040-101-7 Screw-washer4X10 |
93893-040-101-7 |
from US $0.52 |
||
| replacement | |||||
|
15
|
15
93893-040-100-7 New Genuine Part |
93893-040-100-7 |
from US $0.52 |
||
|
16
|
16
93913-25520 ScrewTAPPING, 5X20 (PO) |
93913-25520 |
from US $0.44 |
||
