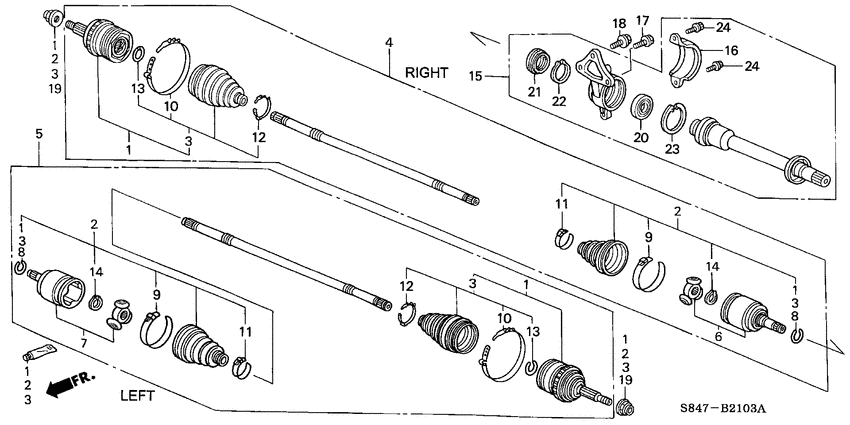

Front driveshaft/ half shaft (V6; '99-) Diagram Honda ACCORD
- Year
- 2000
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0V6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44014-S0K-C00 Joint setOUTBOARD |
44014-S0K-C00 |
US $352 |
||
|
1
|
1
44014-S0K-C10 Joint setOUTBOARD |
44014-S0K-C10 |
US $352 |
||
|
2
|
2
44017-S84-A01
Boot set
|
44017-S84-A01 |
— | ||
| replacement | |||||
|
2
|
2
44017-S84-A02
Boot set
|
44017-S84-A02 |
— | ||
|
2
|
2
44017-S87-A52 Boot setINBOARD |
44017-S87-A52 |
US $69.76 |
||
|
3
|
3
44018-S0K-C20 Boot setOUTBOARD |
44018-S0K-C20 |
US $69.76 |
||
|
3
|
3
44018-S0K-C30 Boot setOUTBOARD |
44018-S0K-C30 |
US $69.76 |
||
|
4
|
4
44305-S4L-A51 Driveshaft assy.R. |
44305-S4L-A51 |
US $820.48 |
||
|
5
|
5
44306-S4L-A52 Driveshaft assy.L. |
44306-S4L-A52 |
US $780.80 |
||
|
6
|
6
44310-SK7-J12 Joint compINBOARD |
44310-SK7-J12 |
US $343.04 |
||
|
7
|
7
44310-S0K-K00
Joint comp
|
44310-S0K-K00 |
— | ||
|
8
|
8
44319-S1K-300
Set ring
|
44319-S1K-300 |
— | ||
|
8
|
8
44319-S0A-300 Set ring28X2.0 |
44319-S0A-300 |
from US $2.21 |
||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
10
|
10
44327-S0K-C01 BandOUTBOARD BOOT (OETIKER LIMITED) |
44327-S0K-C01 |
US $10.22 |
||
|
10
|
10
44327-SX0-C02 BandOUTBOARD BOOT (NIPPON HATSUJO) |
44327-SX0-C02 |
US $7.98 |
||
|
11
|
11
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
12
|
12
44329-S0K-C01 BandDRIVESHAFT (OETIKER LIMITED) |
44329-S0K-C01 |
US $6.58 |
||
|
12
|
12
44329-SX0-C02 BandDRIVESHAFT (NIPPON HATSUJO) |
44329-SX0-C02 |
US $6.19 |
||
|
13
|
13
44337-SM1-300 Ring bSTOPPER |
44337-SM1-300 |
US $1.75 |
||
|
13
|
13
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
US $1.75 |
||
|
14
|
14
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
14
|
14
44338-SM1-300 Circlip26MM |
44338-SM1-300 |
US $2.45 |
||
|
15
|
15
44500-S87-A00
Shaft assy
|
44500-S87-A00 |
— | ||
|
16
|
16
44517-SV7-A00 CoverHEAT |
44517-SV7-A00 |
US $6.72 |
||
|
17
|
17
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
18
|
18
90165-SE0-000
Bolt
|
90165-SE0-000 |
— | ||
|
19
|
19
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
from US $6.35 |
||
|
20
|
20
91057-SH3-008 BearingHALF SHAFT (NTN) |
91057-SH3-008 |
from US $14.28 |
||
|
21
|
21
91260-S84-A01 SealHALF SHAFT OUTER |
91260-S84-A01 |
US $11.25 |
||
|
22
|
22
94510-38000 CirclipEXTERNAL, 38MM |
94510-38000 |
from US $1.04 |
||
|
23
|
23
94520-58000 CirclipINTERNAL, 58MM |
94520-58000 |
from US $0.85 |
||
|
24
|
24
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
