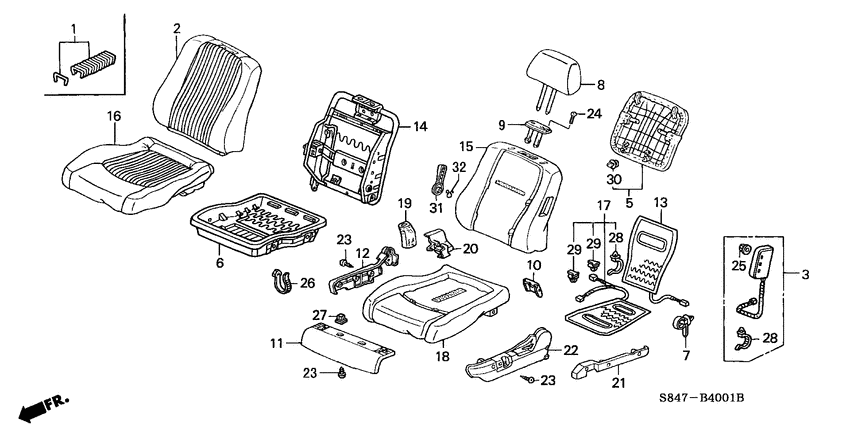

Front seat (L.; 2) Diagram Honda ACCORD
- Year
- 2000
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0V6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
04815-S4K-C80ZC
Cover set
|
04815-S4K-C80ZC |
— | ||
|
2
|
2
04815-S4K-C80ZB
Cover set
|
04815-S4K-C80ZB |
— | ||
|
3
|
3
06788-S84-B80
Module kit
|
06788-S84-B80 |
— | ||
|
5
|
5
81128-S87-A62ZB Cover comp.FR. SEATBACK (LEATHER) *YR169L* |
81128-S87-A62ZB |
US $165.12 |
||
|
5
|
5
81128-S87-A62ZA
Cover comp.
|
81128-S87-A62ZA |
— | ||
|
6
|
6
81136-S84-A03
Frame comp
|
81136-S84-A03 |
— | ||
|
7
|
7
81139-S4K-A81
Clip
|
81139-S4K-A81 |
— | ||
|
8
|
8
81140-S4K-B61ZB
Headrest assy
|
81140-S4K-B61ZB |
— | ||
|
8
|
8
81140-S4K-B61ZA
Headrest assy
|
81140-S4K-B61ZA |
— | ||
|
9
|
9
81144-SH3-003ZX Guide compHEADREST *YR169L* |
81144-SH3-003ZX |
US $10.08 |
||
|
9
|
9
81144-SH3-003YD Guide compHEADREST *NH284L* |
81144-SH3-003YD |
US $11.06 |
||
|
10
|
10
81195-S87-A50ZF CoverRR. OUTER FOOT *YR169L* |
81195-S87-A50ZF |
US $8.82 |
||
|
10
|
10
81195-S87-A50ZB CoverRR. OUTER FOOT *NH283L* |
81195-S87-A50ZB |
US $8.82 |
||
|
11
|
11
81222-S87-A50ZA CoverFR. *NH284L* |
81222-S87-A50ZA |
US $26.37 |
||
|
11
|
11
81222-S87-A50ZB CoverFR. *YR169L* |
81222-S87-A50ZB |
US $26.37 |
||
|
12
|
12
81515-S87-A50ZA
Cover
|
81515-S87-A50ZA |
— | ||
|
12
|
12
81515-S87-A50ZB
Cover
|
81515-S87-A50ZB |
— | ||
|
13
|
13
81524-S87-C62
Heater comp.
|
81524-S87-C62 |
— | ||
|
14
|
14
81526-S4K-A81
Frame comp
|
81526-S4K-A81 |
— | ||
|
15
|
15
81527-S4K-A81
Pad comp
|
81527-S4K-A81 |
— | ||
|
16
|
16
81531-S4K-B61ZB
Cover
|
81531-S4K-B61ZB |
— | ||
|
16
|
16
81531-S4K-B61ZA
Cover
|
81531-S4K-B61ZA |
— | ||
|
17
|
17
81534-S87-C81
Heater comp.
|
81534-S87-C81 |
— | ||
|
18
|
18
81537-S4K-B61
Pad comp
|
81537-S4K-B61 |
— | ||
|
19
|
19
81538-S87-A51ZD
Boot
|
81538-S87-A51ZD |
— | ||
|
19
|
19
81538-S87-A51ZB
Boot
|
81538-S87-A51ZB |
— | ||
|
20
|
20
81596-S87-A50ZD
Cover
|
81596-S87-A50ZD |
— | ||
|
20
|
20
81596-S87-A50ZB
Cover
|
81596-S87-A50ZB |
— | ||
|
21
|
21
81621-S87-A50ZB
Cover
|
81621-S87-A50ZB |
— | ||
|
21
|
21
81621-S87-A50ZA
Cover
|
81621-S87-A50ZA |
— | ||
|
22
|
22
81638-S87-A50ZB
Cover
|
81638-S87-A50ZB |
— | ||
|
22
|
22
81638-S87-A50ZA CoverL. RECLINING *NH284L* |
81638-S87-A50ZA |
US $17.79 |
||
|
23
|
23
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
24
|
24
90161-SB4-003 ScrewFLAT, 4X16 |
90161-SB4-003 |
US $2.10 |
||
|
25
|
25
90321-S84-000 Nut-washer8MM |
90321-S84-000 |
US $1.48 |
||
|
26
|
26
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
27
|
27
90662-671-003 GrommetSCREW, 5MM (WHITE) |
90662-671-003 |
US $2.59 |
||
|
28
|
28
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
29
|
29
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
30
|
30
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
||
|
31
|
31
81321-SD4-J00ZV
Knob
|
81321-SD4-J00ZV |
— | ||
|
31
|
31
81321-SD4-J00ZU
Knob
|
81321-SD4-J00ZU |
— | ||
|
32
|
32
81322-SP0-003 ClipLUMBAR SUPPORT |
81322-SP0-003 |
US $1.40 |
