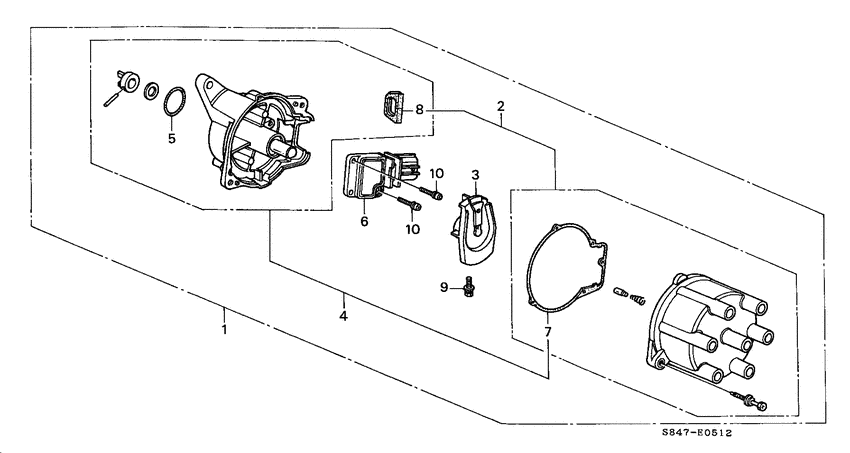

Distributor (HITACHI; V6) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0V6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-P8A-A01
Distributor assy
|
30100-P8A-A01 |
— | ||
|
2
|
2
30102-P8A-A01
Cap assy.
|
30102-P8A-A01 |
— | ||
|
3
|
3
30103-P8A-A01
Head
|
30103-P8A-A01 |
— | ||
|
4
|
4
30105-P8A-A01 Housing compDISTRIBUTOR |
30105-P8A-A01 |
US $241.92 |
||
|
5
|
5
30110-PC6-005
O-ring
|
30110-PC6-005 |
— | ||
|
6
|
6
30120-P8A-A01
Igniter unit
|
30120-P8A-A01 |
— | ||
|
7
|
7
30132-P8A-A01 Packing |
30132-P8A-A01 |
US $4.48 |
||
|
8
|
8
30133-P8A-A01
Grommet
|
30133-P8A-A01 |
— | ||
|
9
|
9
30135-P0A-A01 Bolt-washer5X14 |
30135-P0A-A01 |
US $2.07 |
||
|
10
|
10
30137-P0H-A01 ScrewPAN, 4X14 |
30137-P0H-A01 |
US $2.24 |
