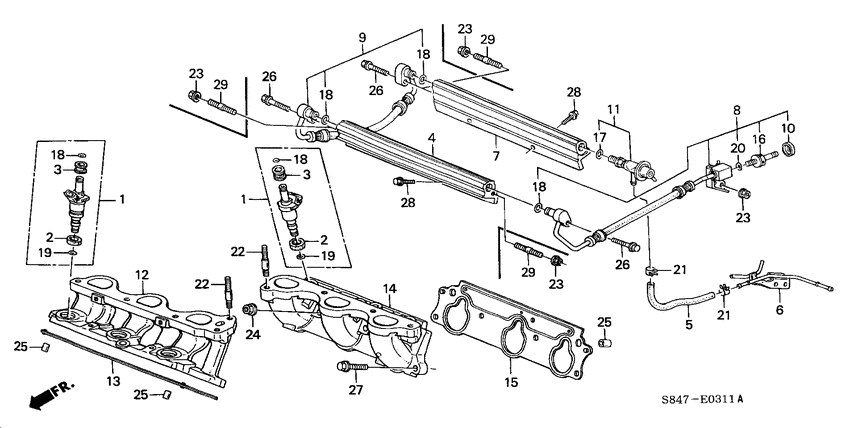

Fuel injector (V6; 2) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0V6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P8A-A00 Packing setINJECTOR |
06164-P8A-A00 |
US $205.36 |
||
|
2
|
2
16472-P0H-A01 Seal ringINJECTOR (NOK) |
16472-P0H-A01 |
US $25.28 |
||
| replacement | |||||
|
2
|
2
16472-PH7-003 Seal ringINJECTOR (OTSUKA) |
16472-PH7-003 |
from US $4.84 |
||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
| replacement | |||||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
|
4
|
4
16611-P8A-A02 PipeFR. FUEL 2084858 - |
16611-P8A-A02 |
US $116.48 |
||
|
4
|
4
16611-P8A-A01
Pipe
00000000 - 2084857 |
16611-P8A-A01 |
— | ||
|
5
|
5
16613-P8A-A00
Hose
|
16613-P8A-A00 |
— | ||
|
6
|
6
16615-P8A-A00 Pipe compFUEL RETURN |
16615-P8A-A00 |
US $12.18 |
||
|
7
|
7
16621-P8A-A02
Pipe
2084858 - |
16621-P8A-A02 |
— | ||
|
7
|
7
16621-P8A-A01
Pipe
00000000 - 2084857 |
16621-P8A-A01 |
— | ||
|
8
|
8
16722-P8A-A03
Hose comp. b
00000000 - 2084857 |
16722-P8A-A03 |
— | ||
|
8
|
8
16722-P8A-A04
Hose comp. b
2084858 - |
16722-P8A-A04 |
— | ||
|
9
|
9
16723-P8A-A02
Hose comp.
00000000 - 2084857 |
16723-P8A-A02 |
— | ||
|
9
|
9
16723-P8A-A03 Hose comp.FUEL JOINT 2084858 - |
16723-P8A-A03 |
US $67.84 |
||
|
10
|
10
16729-P8A-A01 RingFUEL BOLT |
16729-P8A-A01 |
US $3.29 |
||
|
11
|
11
16740-P8A-M01 Regulator assyPRESSURE |
16740-P8A-M01 |
US $136.96 |
||
|
12
|
12
17050-P8A-A00 BaseFR. INJECTOR |
17050-P8A-A00 |
US $133.12 |
||
|
13
|
13
17055-P8A-A01 GasketFR. INJECTOR BASE (NIPPON LEAKLESS) |
17055-P8A-A01 |
US $45.95 |
||
|
14
|
14
17060-P8A-A00 BaseRR. INJECTOR |
17060-P8A-A00 |
US $152.32 |
||
|
15
|
15
17065-P8A-A01 GasketRR. INJECTOR BASE (NIPPON LEAKLESS) |
17065-P8A-A01 |
US $45.95 |
||
|
16
|
16
90025-P8A-A02 BoltSEALING, 12MM |
90025-P8A-A02 |
US $10.22 |
||
|
17
|
17
91301-PM5-A01 O-ring9.8X1.9 |
91301-PM5-A01 |
from US $1.40 |
||
|
18
|
18
91301-PM7-003 O-ring7.3X2.2 (ARAI) |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
18
|
18
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
| replacement | |||||
|
18
|
18
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
18
|
18
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
18
|
18
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
| replacement | |||||
|
18
|
18
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
19
|
19
91302-P0A-A00 O-ring10X1.7 |
91302-P0A-A00 |
US $3.36 |
||
|
20
|
20
91303-P8A-A01 O-ring13.3X1.9 |
91303-P8A-A01 |
US $3.29 |
||
|
21
|
21
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
22
|
22
92900-08032-1B BoltSTUD, 8X32 |
92900-08032-1B |
from US $0.81 |
||
|
23
|
23
94050-06080 NutFLANGE, 6MM 00000000 - 2084857 |
94050-06080 |
from US $0.52 |
||
|
24
|
24
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
25
|
25
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
26
|
26
95701-060-250-8 BoltFLANGE, 6X25 00000000 - 2084857 |
95701-060-250-8 |
from US $0.59 |
||
|
27
|
27
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
|
28
|
28
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
29
|
29
90041-PCA-000 BoltSTUD, 6X32 2084858 - |
90041-PCA-000 |
US $1.33 |
||
