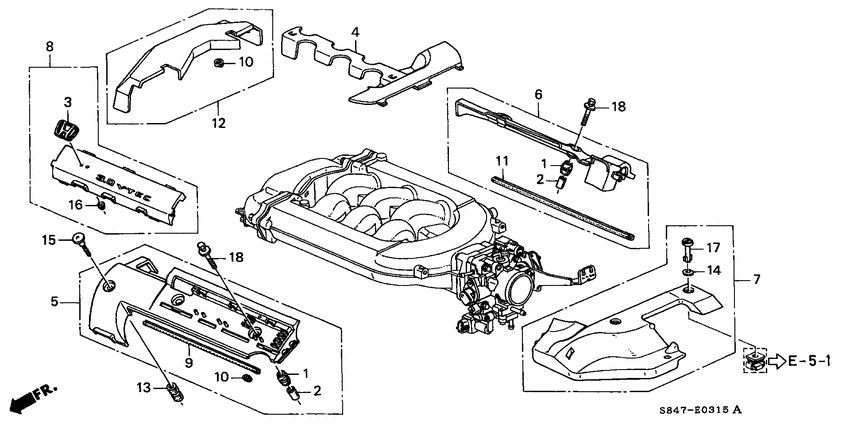

Intake manifold cover (1) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0V6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17115-P8A-A00 RubberINTAKE MANIFOLD COVER MOUNTING |
17115-P8A-A00 |
US $2.24 |
||
|
2
|
2
17116-P0G-A00 CollarINTAKE MANIFOLD COVER MOUNTING |
17116-P0G-A00 |
US $2.24 |
||
|
3
|
3
17120-P8A-K02
Emblem
|
17120-P8A-K02 |
— | ||
|
4
|
4
17121-P8A-A00 Cover aINTAKE MANIFOLD |
17121-P8A-A00 |
US $23.42 |
||
|
5
|
5
17122-P8A-A01
Cover b
|
17122-P8A-A01 |
— | ||
|
6
|
6
17123-P8A-A01 Cover cINTAKE MANIFOLD |
17123-P8A-A01 |
US $23.04 |
||
|
7
|
7
17124-P8A-A00
Cover assy.
|
17124-P8A-A00 |
— | ||
|
8
|
8
17125-P8A-K01
Plate comp
|
17125-P8A-K01 |
— | ||
|
9
|
9
17126-P8A-A00
Rubber a
|
17126-P8A-A00 |
— | ||
|
10
|
10
17127-P8A-A00 Rubber bINTAKE MANIFOLD COVER |
17127-P8A-A00 |
US $2.10 |
||
|
11
|
11
17128-P8A-A00
Rubber c
|
17128-P8A-A00 |
— | ||
|
12
|
12
17147-P8A-A00
Cover assy.
|
17147-P8A-A00 |
— | ||
|
13
|
13
17212-P8A-A00 RubberINTAKE MANIFOLD COVER MOUNTING |
17212-P8A-A00 |
US $2.44 |
||
|
14
|
14
90501-SS8-A01 Retainer |
90501-SS8-A01 |
from US $1.23 |
||
|
15
|
15
90603-P8A-A01 Clip |
90603-P8A-A01 |
US $1.75 |
||
|
16
|
16
90672-SW5-003 Nut |
90672-SW5-003 |
US $1.07 |
||
|
17
|
17
91501-P8A-A01 Stud |
91501-P8A-A01 |
US $1.76 |
||
|
18
|
18
93404-060-280-8 Bolt-washer6X28 |
93404-060-280-8 |
from US $0.74 |
