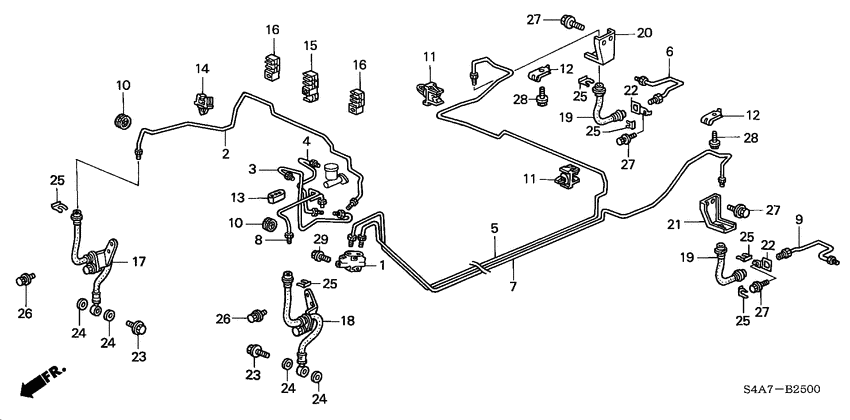

Brake lines (LH) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- D16B
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6IS
- area code
- KR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46210-S1C-G62
Valve assy.
|
46210-S1C-G62 |
— | ||
|
2
|
2
46310-S1A-G62
Pipe comp. a
|
46310-S1A-G62 |
— | ||
|
3
|
3
46320-S1A-G60
Pipe comp. b
|
46320-S1A-G60 |
— | ||
|
4
|
4
46321-S1A-G60
Pipe comp. h
|
46321-S1A-G60 |
— | ||
|
5
|
5
46330-S1A-E01
Pipe comp. c
|
46330-S1A-E01 |
— | ||
|
6
|
6
46331-S1A-E60
Pipe comp. e
|
46331-S1A-E60 |
— | ||
|
7
|
7
46340-S1A-E01
Pipe comp. d
|
46340-S1A-E01 |
— | ||
|
8
|
8
46360-S1A-G61
Pipe comp. f
|
46360-S1A-G61 |
— | ||
|
9
|
9
46361-S1A-E60
Pipe comp. e
|
46361-S1A-E60 |
— | ||
|
10
|
10
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $2.03 |
||
|
11
|
11
46391-SX8-T01 ClipBRAKE PIPE |
46391-SX8-T01 |
US $1.75 |
||
|
12
|
12
46393-S1A-E00
Clamp
|
46393-S1A-E00 |
— | ||
|
13
|
13
46394-SH3-A01 ClipBRAKE PIPE |
46394-SH3-A01 |
US $7.33 |
||
|
14
|
14
46394-S04-003 Clip A |
46394-S04-003 |
from US $1.80 |
||
|
15
|
15
46396-S0A-003
Clip
|
46396-S0A-003 |
— | ||
|
16
|
16
46396-S84-A01 ClipBRAKE PIPE |
46396-S84-A01 |
US $1.96 |
||
|
17
|
17
46410-S1A-E01
Hose
|
46410-S1A-E01 |
— | ||
|
18
|
18
46411-S1A-E01
Hose
|
46411-S1A-E01 |
— | ||
|
19
|
19
46430-S1A-E61
Hose
|
46430-S1A-E61 |
— | ||
|
20
|
20
46435-S1A-E00
Bracket a
|
46435-S1A-E00 |
— | ||
|
21
|
21
46436-S1A-E00
Bracket a
|
46436-S1A-E00 |
— | ||
|
22
|
22
46438-S1A-E60
Bracket b
|
46438-S1A-E60 |
— | ||
|
23
|
23
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
24
|
24
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
25
|
25
90651-SN7-003 ClipBRAKE HOSE |
90651-SN7-003 |
US $1.89 |
||
|
26
|
26
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
27
|
27
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
28
|
28
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
29
|
29
95801-060-450-8 BoltFLANGE, 6X45 |
95801-060-450-8 |
from US $0.74 |
