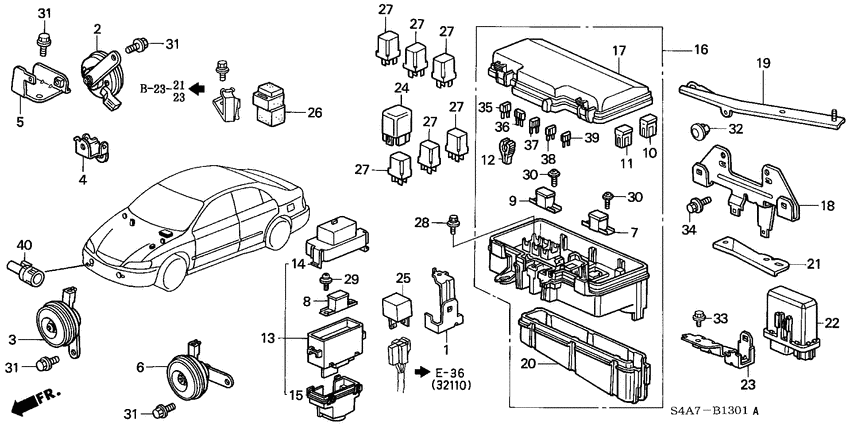

Control unit (ENGINE ROOM; RH) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.0IES
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
- rear door power window
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
38100-SX0-A01 Horn assyLOW (MITSUBA) |
38100-SX0-A01 |
US $42.88 |
||
|
3
|
3
38100-S04-A01 Horn assyLOW (MITSUBA) |
38100-S04-A01 |
US $42.88 |
||
|
4
|
4
38101-S1A-G00 BracketHORN |
38101-S1A-G00 |
US $4.90 |
||
|
5
|
5
38102-S1A-G00
Bracket
|
38102-S1A-G00 |
— | ||
|
6
|
6
38150-S0A-003 Horn assyHIGH (MITSUBA) |
38150-S0A-003 |
US $42.62 |
||
|
7
|
7
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
9
|
9
38218-SM4-003 FuseBLOCK (100A) |
38218-SM4-003 |
from US $8.47 |
||
|
10
|
10
38231-S04-003 FuseBLOCK (30A) |
38231-S04-003 |
US $2.31 |
||
|
11
|
11
38231-S04-961 FuseBLOCK (40A) |
38231-S04-961 |
US $2.31 |
||
|
12
|
12
38235-SX8-003 PullerMINI FUSE (TAIHEIYO) |
38235-SX8-003 |
US $1.96 |
||
|
16
|
16
38250-S1A-E01
Box assy
|
38250-S1A-E01 |
— | ||
|
17
|
17
38251-S1A-G01
Cover
|
38251-S1A-G01 |
— | ||
|
18
|
18
38251-S1A-G10
Bracket
|
38251-S1A-G10 |
— | ||
|
20
|
20
38252-S1A-G01
Cover
|
38252-S1A-G01 |
— | ||
|
24
|
24
39792-SE0-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-H22) |
39792-SE0-004 |
US $36.61 |
||
|
26
|
26
39793-SV4-003 Relay assyPOWER (5P) (MITSUBA) |
39793-SV4-003 |
from US $38.02 |
||
|
27
|
27
39794-S1A-G01 Relay assyPOWER (4P) (MICRO ISO) (BOSCH) |
39794-S1A-G01 |
US $21.12 |
||
|
27
|
27
39794-S01-A01 Relay assyPOWER (4P) (MICRO ISO) (OMRON) |
39794-S01-A01 |
US $25.98 |
||
|
28
|
28
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $1.75 |
||
|
30
|
30
90129-S84-000 Screw-washer5X14 |
90129-S84-000 |
US $1.47 |
||
|
31
|
31
90150-S84-003 BoltEARTH, 8X16 |
90150-S84-003 |
US $1.88 |
||
|
32
|
32
91551-SV4-003 ClipBRACKET |
91551-SV4-003 |
US $1.47 |
||
|
34
|
34
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
35
|
35
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
36
|
36
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.55 |
||
|
37
|
37
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.55 |
||
|
38
|
38
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.55 |
||
|
39
|
39
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.78 |
||
|
40
|
40
80525-SS0-942 SensorAMBIENT |
80525-SS0-942 |
US $28.03 |
