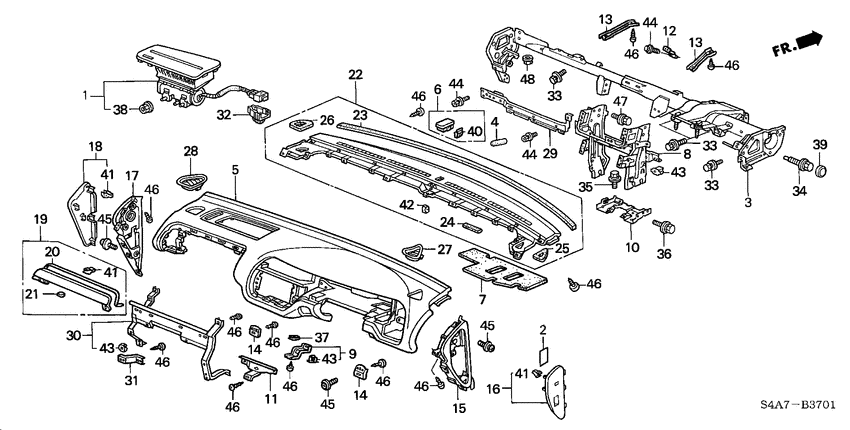

Instrument panel (RH) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.0IES
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
- rear door power window
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06780-S1A-E80ZA
Module kit
|
06780-S1A-E80ZA |
— | ||
|
2
|
2
38205-S1A-E00
Label
|
38205-S1A-E00 |
— | ||
|
3
|
3
61310-S1A-E00ZZ
Beam comp
|
61310-S1A-E00ZZ |
— | ||
|
4
|
4
66844-SA7-000 CapINSTRUMENT PANEL STAY |
66844-SA7-000 |
from US $3.26 |
||
|
5
|
5
77102-S1A-E00ZA
Pad
|
77102-S1A-E00ZA |
— | ||
|
8
|
8
77110-S1A-E00ZZ
Frame comp
|
77110-S1A-E00ZZ |
— | ||
|
9
|
9
77111-S1A-E00ZZ
Bracket
|
77111-S1A-E00ZZ |
— | ||
|
10
|
10
77113-S1A-E00ZZ
Bracket
|
77113-S1A-E00ZZ |
— | ||
|
12
|
12
77120-S1A-E00ZZ
Stay
|
77120-S1A-E00ZZ |
— | ||
|
13
|
13
77131-S1A-E00ZZ
Stay
|
77131-S1A-E00ZZ |
— | ||
|
14
|
14
77205-S1A-E00ZZ
Stay
|
77205-S1A-E00ZZ |
— | ||
|
15
|
15
77210-S1A-E01ZA
Cover
|
77210-S1A-E01ZA |
— | ||
|
16
|
16
77211-S1A-E01ZA
Lid assy
|
77211-S1A-E01ZA |
— | ||
|
17
|
17
77215-S1A-E01ZA
Cover
|
77215-S1A-E01ZA |
— | ||
|
18
|
18
77216-S1A-E01ZA
Lid assy
|
77216-S1A-E01ZA |
— | ||
|
19
|
19
77220-S1A-E11ZB
Panel
|
77220-S1A-E11ZB |
— | ||
|
20
|
20
77222-S1A-E01
Seal
|
77222-S1A-E01 |
— | ||
|
21
|
21
77223-S1A-E01
Felt
|
77223-S1A-E01 |
— | ||
|
22
|
22
77460-S1A-E01ZA
Garnish assy
|
77460-S1A-E01ZA |
— | ||
|
23
|
23
77463-S1A-E01
Seal a
|
77463-S1A-E01 |
— | ||
|
24
|
24
77464-S1A-E01
Seal b
|
77464-S1A-E01 |
— | ||
|
25
|
25
77466-S1A-E01
Seal c
|
77466-S1A-E01 |
— | ||
|
26
|
26
77467-S1A-E01
Seal d
|
77467-S1A-E01 |
— | ||
|
27
|
27
77471-S1A-E00ZA
Garnish
|
77471-S1A-E00ZA |
— | ||
|
28
|
28
77476-S1A-E00ZA
Garnish
|
77476-S1A-E00ZA |
— | ||
|
29
|
29
77552-S1A-E00ZZ
Frame
|
77552-S1A-E00ZZ |
— | ||
|
30
|
30
77555-S1A-E00ZZ
Bracket
|
77555-S1A-E00ZZ |
— | ||
|
31
|
31
77558-S1A-E00ZZ
Bracket
|
77558-S1A-E00ZZ |
— | ||
|
32
|
32
77982-S04-N81 HolderCOUPLER (2P) |
77982-S04-N81 |
US $2.52 |
||
|
33
|
33
90104-SV4-000 Bolt-washer8X25 |
90104-SV4-000 |
US $1.75 |
||
|
34
|
34
90106-S84-A00 Bolt-washer8X40 |
90106-S84-A00 |
US $1.75 |
||
|
35
|
35
90108-S84-A00 Bolt-washer8MM(SRS) |
90108-S84-A00 |
US $2.17 |
||
|
36
|
36
90110-S84-A00 Bolt-washer8X20 |
90110-S84-A00 |
US $2.31 |
||
|
37
|
37
90302-SN7-E00 NutSPRING, 4MM |
90302-SN7-E00 |
US $3.08 |
||
|
38
|
38
90321-SP0-A80 Nut-washer6MM |
90321-SP0-A80 |
from US $1.26 |
||
|
39
|
39
90651-S0A-003 CapBOLT, 8MM |
90651-S0A-003 |
US $1.19 |
||
|
41
|
41
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.63 |
||
|
42
|
42
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
from US $1.26 |
||
|
43
|
43
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.26 |
||
|
44
|
44
93401-050-120-8 Bolt-washer5X12 |
93401-050-120-8 |
from US $0.52 |
||
|
45
|
45
93894-050-120-8 Screw-washer5X12 |
93894-050-120-8 |
from US $0.44 |
||
|
46
|
46
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.38 |
||
|
47
|
47
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
48
|
48
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
