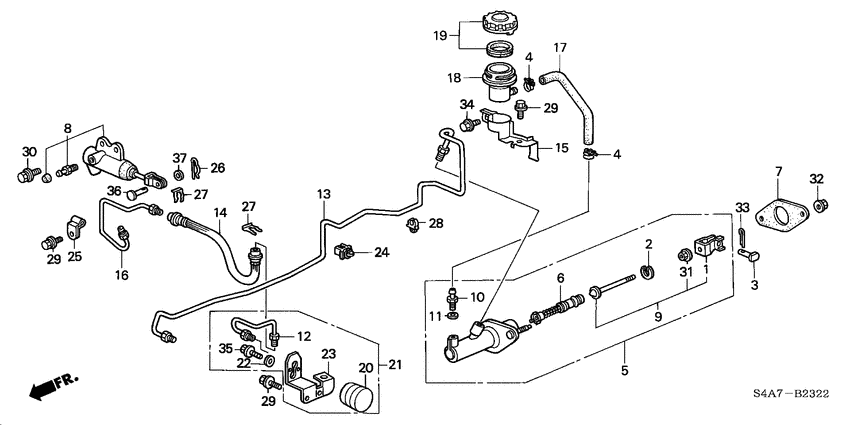

Clutch master cylinder (LH; DIESEL) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- 20T2N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD E
- abs
- +
- area code
- KG
- left-hand drive
- +
- side srs
- +
- rear door power window
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46151-SA5-003 Yoke comp.NISSIN |
46151-SA5-003 |
US $18.24 |
||
|
2
|
2
46182-500-013 Circlip |
46182-500-013 |
from US $2.07 |
||
|
3
|
3
46912-SD4-000 PinCLUTCH PEDAL |
46912-SD4-000 |
US $5.18 |
||
|
4
|
4
46918-SM4-020 Clip a13TUBE |
46918-SM4-020 |
US $6.67 |
||
|
5
|
5
46920-S04-C01 Cylinder assy.CLUTCH MASTER |
46920-S04-C01 |
US $112.64 |
||
|
6
|
6
46926-SF1-003 Piston assy. |
46926-SF1-003 |
from US $37.55 |
||
|
7
|
7
46928-SF1-000 SealCLUTCH MASTER CYLINDER |
46928-SF1-000 |
from US $4 |
||
|
8
|
8
46930-S37-000
Cylinder assy.
|
46930-S37-000 |
— | ||
|
9
|
9
46950-SL4-003 Rod assyPUSH |
46950-SL4-003 |
US $13.86 |
||
|
10
|
10
46952-SD4-003 JointTUBE |
46952-SD4-003 |
US $4.34 |
||
|
11
|
11
46953-SD4-003 Packing |
46953-SD4-003 |
US $2.03 |
||
|
12
|
12
46960-S1B-D01
Pipe comp
|
46960-S1B-D01 |
— | ||
|
13
|
13
46960-S1B-G02
Pipe comp
|
46960-S1B-G02 |
— | ||
|
14
|
14
46961-S37-000
Hose
|
46961-S37-000 |
— | ||
|
15
|
15
46966-S1B-A03
Holder
|
46966-S1B-A03 |
— | ||
|
16
|
16
46970-S1B-000
Pipe comp
|
46970-S1B-000 |
— | ||
|
17
|
17
46971-S1B-G00
Tube
|
46971-S1B-G00 |
— | ||
|
18
|
18
46972-SD4-003
Tank
|
46972-SD4-003 |
— | ||
|
19
|
19
46973-SD4-003 Cap comp.RESERVE TANK |
46973-SD4-003 |
US $18.22 |
||
|
20
|
20
46985-S37-000
Damper
|
46985-S37-000 |
— | ||
|
21
|
21
46993-S1B-D00
Damper assy.
|
46993-S1B-D00 |
— | ||
|
22
|
22
46994-S1B-000
Washer
|
46994-S1B-000 |
— | ||
|
23
|
23
46995-S1B-D01
Bracket
|
46995-S1B-D01 |
— | ||
|
24
|
24
46997-S04-C01 Clip APIPE (BLACK) |
46997-S04-C01 |
US $1.82 |
||
|
25
|
25
46998-SM4-000
Clamp
|
46998-SM4-000 |
— | ||
|
26
|
26
90100-S37-000
Clip
|
90100-S37-000 |
— | ||
|
27
|
27
90651-SN7-003 ClipBRAKE HOSE |
90651-SN7-003 |
US $1.89 |
||
|
28
|
28
91565-SK7-003 ClipWASHER TUBE |
91565-SK7-003 |
US $1.68 |
||
|
29
|
29
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
30
|
30
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
|
31
|
31
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
32
|
32
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
33
|
33
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
33
|
33
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
34
|
34
95801-060-160-8 BoltFLANGE, 6X16 |
95801-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
34
|
34
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
35
|
35
99FS1-06127
Bolt
|
99FS1-06127 |
— | ||
|
36
|
36
99PC1-08321
Pin
|
99PC1-08321 |
— | ||
|
37
|
37
99WA1-08051
Washer
|
99WA1-08051 |
— | ||
