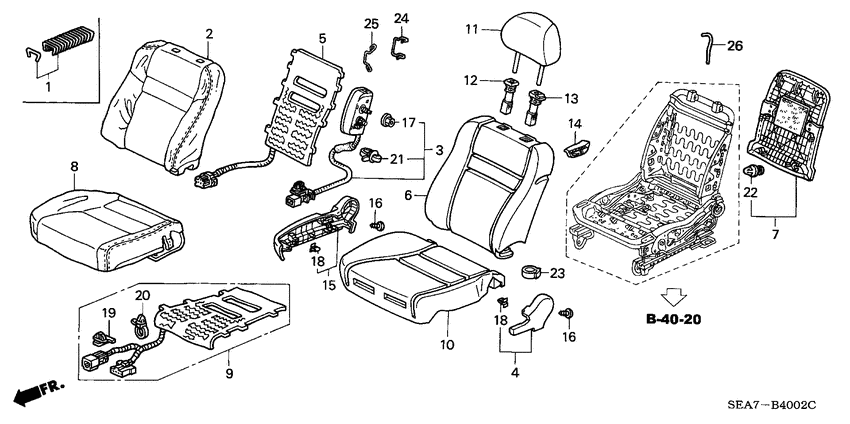

Front seat (R.; LH; 1) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- K20Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0 COMFORT
- area code
- KB
- left-hand drive
- +
- air conditioner (auto)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
81121-SEA-B02ZB CoverR. FR. SEATBACK TRIM *YR239L* |
81121-SEA-B02ZB |
US $300.80 |
||
|
2
|
2
81121-SEA-B02ZA CoverR. FR. SEATBACK TRIM *NH167L* |
81121-SEA-B02ZA |
US $273.92 |
||
|
4
|
4
81115-SEA-003ZB CoverR. CENTER *YR239L* |
81115-SEA-003ZB |
US $17.79 |
||
|
4
|
4
81115-SEA-003ZA CoverR. CENTER *NH167L* |
81115-SEA-003ZA |
US $17.79 |
||
|
6
|
6
81127-SEA-J01 Pad compR. FR. SEATBACK |
81127-SEA-J01 |
US $134.40 |
||
|
7
|
7
81128-SEA-J11ZB
Cover comp.
|
81128-SEA-J11ZB |
— | ||
|
7
|
7
81128-SEA-J11ZA
Cover comp.
|
81128-SEA-J11ZA |
— | ||
|
8
|
8
81131-SEA-G12ZB CoverR. FR. CUSHION TRIM *YR239L* |
81131-SEA-G12ZB |
US $273.92 |
||
|
8
|
8
81131-SEA-G12ZA CoverR. FR. CUSHION TRIM *NH167L* |
81131-SEA-G12ZA |
US $273.92 |
||
|
10
|
10
81137-SEA-J01 Pad compR. FR. SEAT CUSHION |
81137-SEA-J01 |
US $139.52 |
||
|
11
|
11
81140-SEA-E02ZA Headrest assyFR. SEAT *NH167L* |
81140-SEA-E02ZA |
US $138.24 |
||
|
11
|
11
81140-SEA-E02ZB Headrest assyFR. SEAT *YR239L* |
81140-SEA-E02ZB |
US $138.24 |
||
|
12
|
12
81143-SDA-A01ZA GuideHEADREST FREE *NH167L* |
81143-SDA-A01ZA |
US $6.02 |
||
|
12
|
12
81143-SDA-A01ZC GuideHEADREST FREE *YR239L* |
81143-SDA-A01ZC |
US $6.02 |
||
|
13
|
13
81144-SDA-A01ZA Guide compHEADREST LOCK *NH167L* |
81144-SDA-A01ZA |
US $7.42 |
||
|
13
|
13
81144-SDA-A01ZC Guide compHEADREST LOCK *YR239L* |
81144-SDA-A01ZC |
US $7.42 |
||
|
14
|
14
81231-SDA-A01ZA KnobR. RECLINING *NH167L* |
81231-SDA-A01ZA |
US $4.20 |
||
|
14
|
14
81231-SDA-A01ZC KnobR. RECLINING *YR239L* |
81231-SDA-A01ZC |
US $4.20 |
||
|
15
|
15
81238-SEA-G01ZB CoverR. RECLINING *YR239L* |
81238-SEA-G01ZB |
US $13.95 |
||
|
15
|
15
81238-SEA-G01ZA CoverR. RECLINING *NH167L* |
81238-SEA-G01ZA |
US $13.95 |
||
|
16
|
16
93901-35280 ScrewTAPPING, 5X12 |
93901-35280 |
from US $0.37 |
||
|
18
|
18
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
22
|
22
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
||
|
23
|
23
90650-S7A-J01 ClipRATCHET, 15MM |
90650-S7A-J01 |
US $2.45 |
