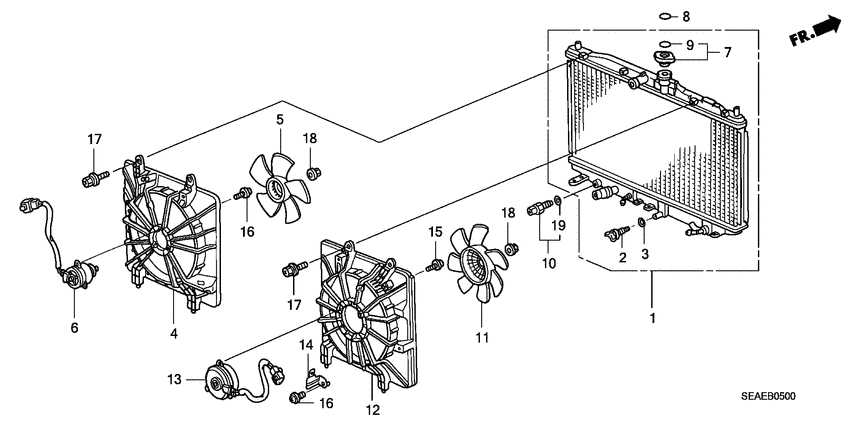

Radiator (2.4L) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 EXECUTIVE-E
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- navigation
- +
- side curtain srs
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-RBB-E51 Radiator compDENSO |
19010-RBB-E51 |
US $1,108.48 |
||
|
2
|
2
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.76 |
||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
from US $1.85 |
||
|
4
|
4
19015-RBB-003
Shroud comp.
|
19015-RBB-003 |
— | ||
|
5
|
5
19020-PNA-003 FanCOOLING |
19020-PNA-003 |
US $70.31 |
||
|
6
|
6
19030-RBB-003 MotorCOOLING FAN |
19030-RBB-003 |
US $216.32 |
||
|
7
|
7
19045-RAA-003 Cap comp.RADIATOR (DENSO) |
19045-RAA-003 |
from US $17.50 |
||
|
9
|
9
19046-RAA-A00 LabelRADIATOR CAP |
19046-RAA-A00 |
from US $1.47 |
||
|
10
|
10
37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)(NIPPON THERMOSTAT) |
37760-P00-003 |
from US $43.66 |
||
|
10
|
10
37760-P00-004
Switch assy
|
37760-P00-004 |
— | ||
| replacement | |||||
|
10
|
10
37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)(NIPPON THERMOSTAT) |
37760-P00-003 |
from US $43.66 |
||
|
11
|
11
38611-RBB-003 FanCOOLING |
38611-RBB-003 |
US $33.92 |
||
|
12
|
12
38615-RBB-003
Shroud comp.
|
38615-RBB-003 |
— | ||
|
13
|
13
38616-RBB-003 MotorCOOLING FAN |
38616-RBB-003 |
US $212.48 |
||
|
14
|
14
38617-RBB-003
Stay
|
38617-RBB-003 |
— | ||
|
15
|
15
90041-P3G-003 Screw-washer5X11 |
90041-P3G-003 |
US $1.41 |
||
|
16
|
16
90041-P5A-003 Screw-washer4X11 |
90041-P5A-003 |
US $1.33 |
||
|
17
|
17
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
18
|
18
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
19
|
19
91307-PN4-000
O-ring
|
91307-PN4-000 |
— | ||
| replacement | |||||
|
19
|
19
91307-PN3-000 O-ring,17.8x1.4 |
91307-PN3-000 |
from US $1.66 |
||
