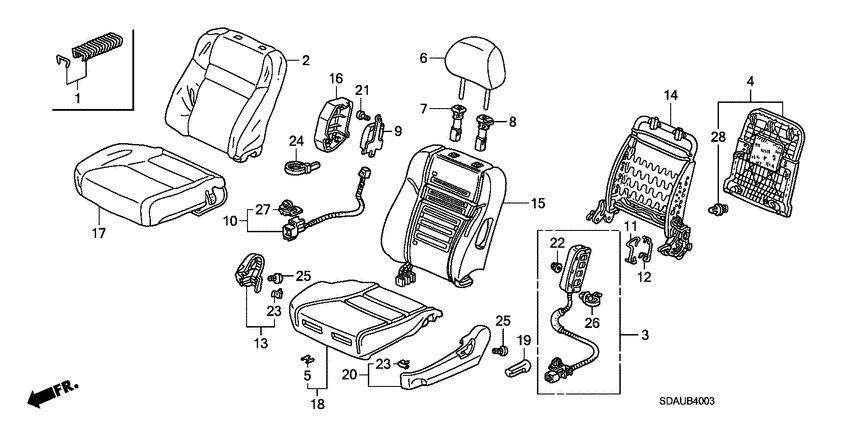

Front seat (L.; RH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K20A
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
US $4.74 |
||
|
2
|
2
81521-SDC-U02ZA CoverL. FR. SEATBACK TRIM *NH361L* |
81521-SDC-U02ZA |
US $273.92 |
||
|
2
|
2
81521-SDC-U02ZB CoverL. FR. SEATBACK TRIM *YR239L* |
81521-SDC-U02ZB |
US $273.92 |
||
|
4
|
4
81129-SDC-A32ZB Cover comp.FR. SEATBACK *NH361L* 7C200989 - |
81129-SDC-A32ZB |
US $104.32 |
||
|
4
|
4
81129-SDC-A31ZC
Cover comp.
00000000 - 7C200988 |
81129-SDC-A31ZC |
— | ||
|
4
|
4
81129-SDC-A32ZC Cover comp.FR. SEATBACK *YR239L* 7C200989 - |
81129-SDC-A32ZC |
US $104.32 |
||
|
4
|
4
81129-SDC-A31ZB
Cover comp.
00000000 - 7C200988 |
81129-SDC-A31ZB |
— | ||
|
5
|
5
81138-S5A-G21 ClipH |
81138-S5A-G21 |
US $0.91 |
||
|
6
|
6
81140-SDC-A42ZC Headrest assyFR. SEAT *YR239L* |
81140-SDC-A42ZC |
US $138.24 |
||
|
6
|
6
81140-SDC-A42ZB Headrest assyFR. SEAT *NH361L* |
81140-SDC-A42ZB |
US $138.24 |
||
|
7
|
7
81143-SDA-A01ZB GuideHEADREST FREE *NH361L* |
81143-SDA-A01ZB |
US $6.02 |
||
|
7
|
7
81143-SDA-A01ZC GuideHEADREST FREE *YR239L* |
81143-SDA-A01ZC |
US $6.02 |
||
|
8
|
8
81144-SDA-A01ZC Guide compHEADREST LOCK *YR239L* |
81144-SDA-A01ZC |
US $7.42 |
||
|
8
|
8
81144-SDA-A01ZB Guide compHEADREST LOCK *NH361L* |
81144-SDA-A01ZB |
US $7.42 |
||
|
13
|
13
81515-SDA-A01ZC CoverL. FR. SEAT CENTER *YR239L* |
81515-SDA-A01ZC |
US $11.62 |
||
|
13
|
13
81515-SDA-A01ZB CoverL. FR. SEAT CENTER *NH361L* |
81515-SDA-A01ZB |
US $11.62 |
||
|
14
|
14
81526-SDC-A11 Frame compL. FR. SEATBACK |
81526-SDC-A11 |
US $272.64 |
||
|
15
|
15
81527-SDC-U01 Pad compL. FR. SEATBACK |
81527-SDC-U01 |
US $139.52 |
||
|
17
|
17
81531-SDC-U02ZB CoverL. FR. CUSHION TRIM *YR239L* |
81531-SDC-U02ZB |
US $273.92 |
||
|
17
|
17
81531-SDC-U02ZA CoverL. FR. CUSHION TRIM *NH361L* |
81531-SDC-U02ZA |
US $273.92 |
||
|
18
|
18
81537-SDC-A01 Pad compL. FR. SEAT CUSHION |
81537-SDC-A01 |
US $139.52 |
||
|
19
|
19
81631-SDA-A01ZC KnobL. RECLINING *YR239L* |
81631-SDA-A01ZC |
US $4.13 |
||
|
19
|
19
81631-SDA-A01ZB KnobL. RECLINING *NH361L* |
81631-SDA-A01ZB |
US $4.20 |
||
|
20
|
20
81638-SDC-A01ZA CoverL. RECLINING *NH361L* |
81638-SDC-A01ZA |
US $17.66 |
||
|
20
|
20
81638-SDC-A01ZB CoverL. RECLINING *YR239L* |
81638-SDC-A01ZB |
US $17.66 |
||
|
23
|
23
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
25
|
25
90666-SA0-003YU ClipTRIM, 5MM *NH120L* |
90666-SA0-003YU |
US $1.89 |
||
|
28
|
28
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
