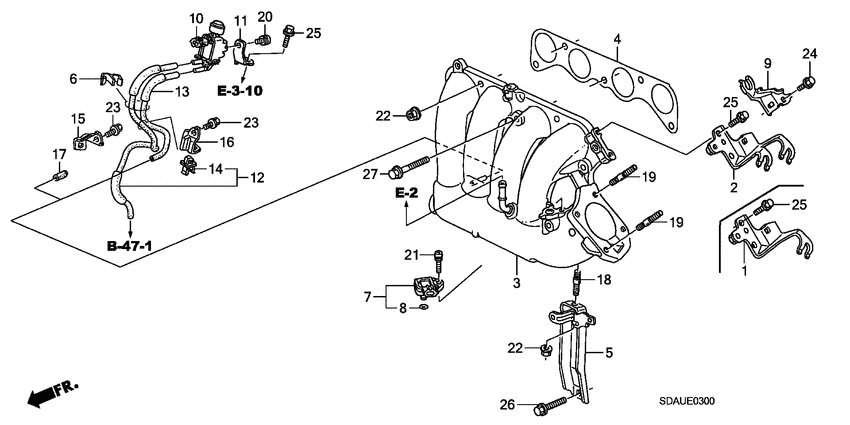

Intake manifold (L4; 1) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTIE
- area code
- KW
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
16411-RAA-A10
Stay comp
|
16411-RAA-A10 |
— | ||
|
3
|
3
17110-RAA-A00 Manifold compINTAKE |
17110-RAA-A00 |
US $202.24 |
||
|
4
|
4
17115-RAA-A01 GasketINTAKE MANIFOLD |
17115-RAA-A01 |
from US $16.18 |
||
|
5
|
5
17132-RAC-U00
Stay comp
|
17132-RAC-U00 |
— | ||
|
7
|
7
37830-PNC-003 Map Sensor assyMAP |
37830-PNC-003 |
from US $145.18 |
||
|
8
|
8
37835-PGK-A01 O-ring |
37835-PGK-A01 |
from US $2.15 |
||
|
9
|
9
46406-SDA-A01
Stay a
|
46406-SDA-A01 |
— | ||
|
17
|
17
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $2.37 |
||
|
18
|
18
92900-08022-0B BoltSTUD, 8X22 |
92900-08022-0B |
from US $0.74 |
||
|
19
|
19
92900-08035-1B BoltSTUD, 8X35 |
92900-08035-1B |
US $0.81 |
||
|
21
|
21
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
22
|
22
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
24
|
24
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
26
|
26
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.52 |
||
|
27
|
27
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
