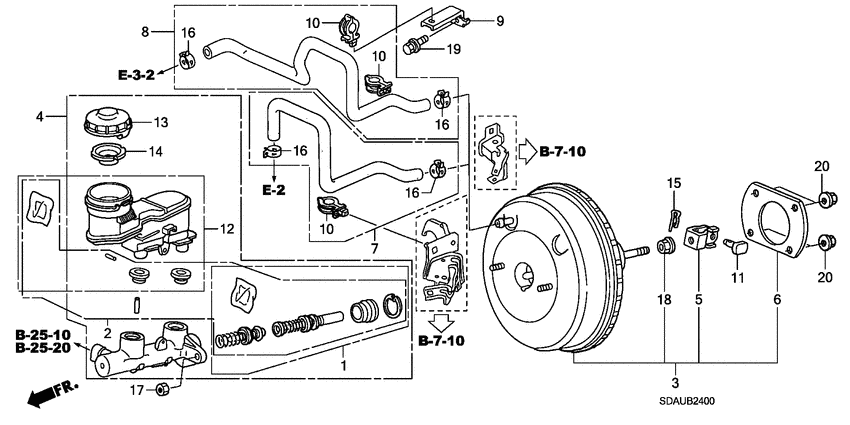

Brake master cylinder/ master power (LH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01462-SDC-A02
Piston set
|
01462-SDC-A02 |
— | ||
| replacement | |||||
|
1
|
1
01462-SDC-A70 Piston set |
01462-SDC-A70 |
US $127.91 |
||
|
3
|
3
01469-SDC-A00 Power setMASTER (10") |
01469-SDC-A00 |
US $492.80 |
||
|
4
|
4
46101-SDC-A04 Cylinder setMASTER |
46101-SDC-A04 |
US $229.12 |
||
|
5
|
5
46151-SA7-951 Yoke compNISSIN |
46151-SA7-951 |
US $11.07 |
||
|
6
|
6
46191-SDA-A00 GasketMASTER POWER |
46191-SDA-A00 |
US $3.08 |
||
|
7
|
7
46402-SDA-A02 Tube assyMASTER POWER |
46402-SDA-A02 |
US $48.92 |
||
|
10
|
10
46407-S84-A01 ClampTUBE |
46407-S84-A01 |
US $2.59 |
||
|
11
|
11
46512-S70-000 PinPEDAL |
46512-S70-000 |
from US $2.31 |
||
|
12
|
12
46661-SDC-A02 Reservoir setOIL |
46661-SDC-A02 |
US $48.38 |
||
|
13
|
13
46662-SDC-A02 Cap comp.RESERVOIR |
46662-SDC-A02 |
from US $13.44 |
||
|
14
|
14
46666-SDC-A01 Filter |
46666-SDC-A01 |
US $6.86 |
||
|
15
|
15
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $1.85 |
||
|
16
|
16
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
17
|
17
90301-SDC-013 NutHEX., 8MM |
90301-SDC-013 |
US $1.68 |
||
|
18
|
18
90301-SEF-003 Nut10MM 00000000 - 7C200083 |
90301-SEF-003 |
US $1.89 |
||
|
18
|
18
90301-SEF-013 Nut10MM 7C200084 - |
90301-SEF-013 |
US $1.68 |
||
|
20
|
20
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
