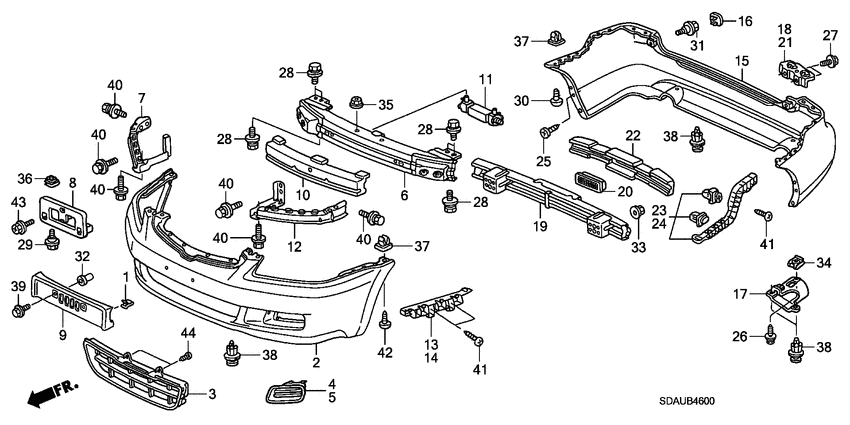

Bumpers Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
71101-SDC-A00ZZ FaceFR. BUMPER |
71101-SDC-A00ZZ |
US $608 |
||
|
3
|
3
71102-SDA-A00 GrilleFR. BUMPER LOWER |
71102-SDA-A00 |
US $69.76 |
||
|
6
|
6
71130-SDC-A00 Beam compFR. BUMPER |
71130-SDC-A00 |
from US $167.68 |
||
|
7
|
7
71140-SDA-A10 Beam compR. FR. BUMPER UPPER |
71140-SDA-A10 |
US $25.22 |
||
|
8
|
8
71145-SDA-A10 BaseFR. LICENSE PLATE |
71145-SDA-A10 |
US $26.88 |
||
|
10
|
10
71170-SDA-A10 AbsorberFR. BUMPER |
71170-SDA-A10 |
US $64 |
||
|
11
|
11
71185-SDA-A11 Damper assy.FR. BUMPER |
71185-SDA-A11 |
US $87.04 |
||
|
12
|
12
71190-SDA-A10 Beam compL. FR. BUMPER UPPER |
71190-SDA-A10 |
US $25.22 |
||
|
13
|
13
71193-SDA-A10
Spacer
|
71193-SDA-A10 |
— | ||
|
14
|
14
71198-SDA-A10
Spacer
|
71198-SDA-A10 |
— | ||
|
15
|
15
71501-SDC-A00ZZ FaceRR. BUMPER |
71501-SDC-A00ZZ |
US $629.76 |
||
|
16
|
16
71503-S9A-000ZR CapRR. BUMPER *NH624P* |
71503-S9A-000ZR |
US $6.16 |
||
|
16
|
16
71503-S9A-000ZV CapRR. BUMPER *YR538M* |
71503-S9A-000ZV |
US $6.16 |
||
|
16
|
16
71503-S9A-000YV CapRR. BUMPER *NH700M* |
71503-S9A-000YV |
from US $6.16 |
||
|
16
|
16
71503-S9A-000ZD CapRR. BUMPER *B92P* |
71503-S9A-000ZD |
US $6.16 |
||
|
16
|
16
71503-S9A-000ZT CapRR. BUMPER *NH658P* |
71503-S9A-000ZT |
US $6.16 |
||
|
16
|
16
71503-S9A-000YU CapRR. BUMPER *B536P* |
71503-S9A-000YU |
US $8.08 |
||
|
17
|
17
71504-SDC-A00ZH FinisherRR. BUMPER COVER *NH624P* |
71504-SDC-A00ZH |
US $27.90 |
||
|
17
|
17
71504-SDC-A00ZB FinisherRR. BUMPER COVER *B92P* |
71504-SDC-A00ZB |
US $30.72 |
||
|
17
|
17
71504-SDC-A00ZE FinisherRR. BUMPER COVER *NH700M* |
71504-SDC-A00ZE |
US $36.27 |
||
|
17
|
17
71504-SDC-A00ZA FinisherRR. BUMPER COVER *B536P* |
71504-SDC-A00ZA |
US $27.90 |
||
|
17
|
17
71504-SDC-A00ZD FinisherRR. BUMPER COVER *NH658P* |
71504-SDC-A00ZD |
US $30.72 |
||
|
17
|
17
71504-SDC-A00ZF FinisherRR. BUMPER COVER *YR538M* |
71504-SDC-A00ZF |
US $30.72 |
||
|
18
|
18
71505-SDA-A00 BracketR. RR. BUMPER SIDE |
71505-SDA-A00 |
from US $7.42 |
||
|
19
|
19
71530-SDC-D10ZZ Beam compRR. BUMPER |
71530-SDC-D10ZZ |
US $243.20 |
||
|
20
|
20
71537-SDA-A00 BoxRR. BUMPER |
71537-SDA-A00 |
US $10.64 |
||
|
21
|
21
71555-SDA-A00 BracketL. RR. BUMPER SIDE |
71555-SDA-A00 |
US $7.42 |
||
|
22
|
22
71570-SDA-A10 AbsorberRR. BUMPER |
71570-SDA-A10 |
US $76.80 |
||
|
23
|
23
71593-SDA-A10
Spacer
|
71593-SDA-A10 |
— | ||
|
24
|
24
71598-SDA-A10 SpacerL. RR. BUMPER SIDE |
71598-SDA-A10 |
US $15.79 |
||
|
25
|
25
90103-SDA-A00 ScrewTAPPING, 5X20 |
90103-SDA-A00 |
from US $1.18 |
||
|
26
|
26
90103-SFY-000
Tapping
|
90103-SFY-000 |
— | ||
|
27
|
27
90108-S0A-003 BoltFLANGE, 6X15 |
90108-S0A-003 |
from US $1.41 |
||
|
28
|
28
90110-SE7-000 Bolt-washer8X21 |
90110-SE7-000 |
US $1.40 |
||
|
29
|
29
90111-SM4-003 BoltBUMPER |
90111-SM4-003 |
from US $1.55 |
||
|
30
|
30
90114-SZ3-000 Screw-washer5X20 |
90114-SZ3-000 |
US $2.52 |
||
|
31
|
31
90149-SA0-003 BoltBUMPER |
90149-SA0-003 |
from US $2 |
||
|
33
|
33
90302-SD2-003 Nut-washer8MM |
90302-SD2-003 |
US $1.82 |
||
|
34
|
34
90331-SD5-003 NutSPRING, 5MM |
90331-SD5-003 |
from US $2 |
||
|
35
|
35
90373-SP0-000 NutFLANGE, 10MM |
90373-SP0-000 |
from US $2.86 |
||
|
36
|
36
90675-SA5-003 NutCLIP, 6MM |
90675-SA5-003 |
from US $1.92 |
||
|
37
|
37
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
38
|
38
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.67 |
||
|
40
|
40
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
41
|
41
93903-25320 ScrewTAPPING, 5X16 |
93903-25320 |
from US $0.22 |
||
|
42
|
42
93903-45380 ScrewTAPPING, 5X16 |
93903-45380 |
from US $0.37 |
||
|
43
|
43
93904-46220 ScrewTAPPING, 6X16 |
93904-46220 |
US $0.44 |
||
|
44
|
44
93913-15480 ScrewTAPPING, 5X16 (PO) |
93913-15480 |
from US $0.37 |
