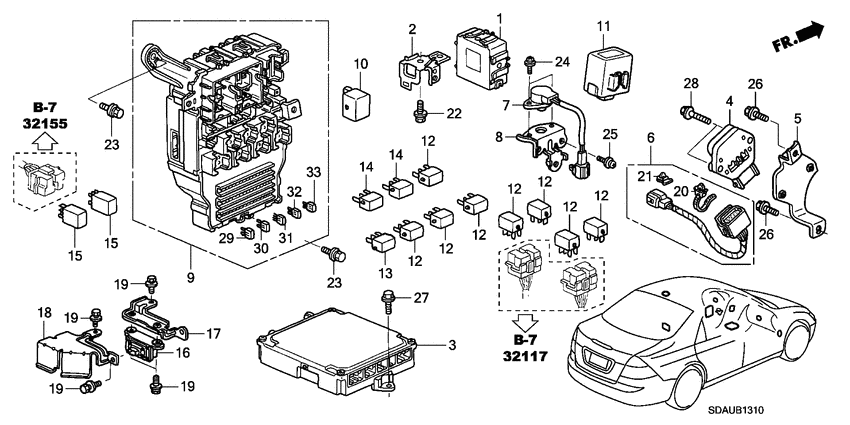

Control unit (CABIN; LH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
37820-RAD-D52
Control module
|
37820-RAD-D52 |
— | ||
|
4
|
4
37850-PPD-911 Driver unitDRIVE BY WIRE |
37850-PPD-911 |
US $367.36 |
||
|
5
|
5
37851-RCA-A00 Bracket comp.DRIVE BY WIRE DRIVER |
37851-RCA-A00 |
US $8.40 |
||
|
6
|
6
37852-RCA-A00
Sub harness
|
37852-RCA-A00 |
— | ||
|
9
|
9
38200-SDA-601 Box assyFUSE |
38200-SDA-601 |
US $500.48 |
||
|
10
|
10
38300-SHJ-A04 Relay assyTURN SIGNAL & HAZARD (MITSUBA) |
38300-SHJ-A04 |
US $43.01 |
||
|
10
|
10
38300-SDC-A02 Relay assyTURN SIGNAL & HAZARD (DENSO) |
38300-SDC-A02 |
US $43.01 |
||
|
11
|
11
38385-SFE-J01 Receiver unitKEYLESS ENTRY |
38385-SFE-J01 |
US $157.44 |
||
|
12
|
12
39794-SDA-A05 Relay assyPOWER(MICRO ISO) (MITSUBA) |
39794-SDA-A05 |
from US $16.18 |
||
|
12
|
12
39794-SDA-A02 Relay assyPOWER(MICRO ISO) (DENSO) |
39794-SDA-A02 |
US $19.45 |
||
|
13
|
13
39794-SDA-004 RELAY ASSY., FUEL PUMP (DENSO)FUEL PUMP (DENSO) |
39794-SDA-004 |
from US $17.68 |
||
|
13
|
13
39794-SDA-003 Relay assyFUEL PUMP (MITSUBA) |
39794-SDA-003 |
US $19.07 |
||
|
14
|
14
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
|
14
|
14
39794-SDA-901
Relay assy, ENGINE CONTROL MODULE (MITSUBA)
|
39794-SDA-901 |
— | ||
| replacement | |||||
|
14
|
14
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
|
15
|
15
39794-S10-003 Relay assyPOWER(5P) (MICRO ISO)(MITSUBA) |
39794-S10-003 |
US $19.45 |
||
|
20
|
20
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
21
|
21
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
23
|
23
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
27
|
27
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
28
|
28
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
29
|
29
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
30
|
30
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
31
|
31
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
32
|
32
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
33
|
33
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
||
