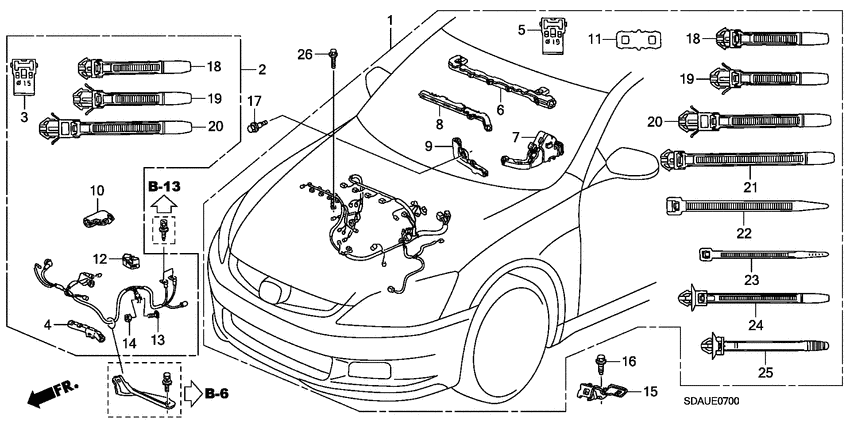

Engine wire harness (L4; LH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32110-RAD-D50 HarnessENGINE WIRE |
32110-RAD-D50 |
US $377.60 |
||
|
2
|
2
32111-RAD-A51
Sub cord
|
32111-RAD-A51 |
— | ||
|
3
|
3
32117-P65-003 HolderCORRUGATED(DARK BLUE) (15MM) |
32117-P65-003 |
US $2.38 |
||
|
4
|
4
32117-RAA-003 HolderCORRUGATED(DARK BLUE) (15MM) |
32117-RAA-003 |
US $20.99 |
||
|
5
|
5
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
6
|
6
32121-RAA-A00 Holder aENGINE HARNESS |
32121-RAA-A00 |
US $8.26 |
||
|
7
|
7
32122-RAA-A00 Holder bENGINE HARNESS |
32122-RAA-A00 |
US $9.10 |
||
|
8
|
8
32123-RAA-A00 Holder cENGINE HARNESS |
32123-RAA-A00 |
US $5.04 |
||
|
9
|
9
32124-RAA-A01 Holder dENGINE HARNESS |
32124-RAA-A01 |
US $5.18 |
||
|
10
|
10
32125-RBA-000 Holder eENGINE HARNESS |
32125-RBA-000 |
US $3.43 |
||
|
11
|
11
32129-RAA-A01
Stay
|
32129-RAA-A01 |
— | ||
|
12
|
12
32418-PND-300 CoverBATTERY TERMINAL |
32418-PND-300 |
from US $7.81 |
||
|
13
|
13
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
14
|
14
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
15
|
15
32741-RAA-A00
Stay e
|
32741-RAA-A00 |
— | ||
|
16
|
16
90028-RAA-003 BoltSPECIAL, 6X18.2 |
90028-RAA-003 |
US $1.61 |
||
|
17
|
17
90051-PNA-000 BoltSPECIAL, 6X28 |
90051-PNA-000 |
from US $1.33 |
||
|
18
|
18
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
19
|
19
91507-RTA-003 Clip bHARNESS BAND (DARK GREEN) (129.4MM) |
91507-RTA-003 |
from US $2.31 |
||
|
20
|
20
91509-RRA-003 Clip dWIRE HARNESS (BLACK) (135.4MM) |
91509-RRA-003 |
from US $2.31 |
||
|
21
|
21
91510-RAA-A01 Clip eHARNESS BAND (DARK GRAY) (179.4MM) |
91510-RAA-A01 |
US $2.31 |
||
|
22
|
22
91551-PNA-003 BandWIRE HARNESS (BLACK) (172MM) |
91551-PNA-003 |
from US $1.61 |
||
|
23
|
23
91556-PDF-E01 BandCLAMP(NATURAL)(143.2MM) |
91556-PDF-E01 |
US $1.61 |
||
|
24
|
24
91558-P8C-A01 ClipHARNESS BAND (VIOLET) (150MM) |
91558-P8C-A01 |
US $1.89 |
||
|
25
|
25
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
26
|
26
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
