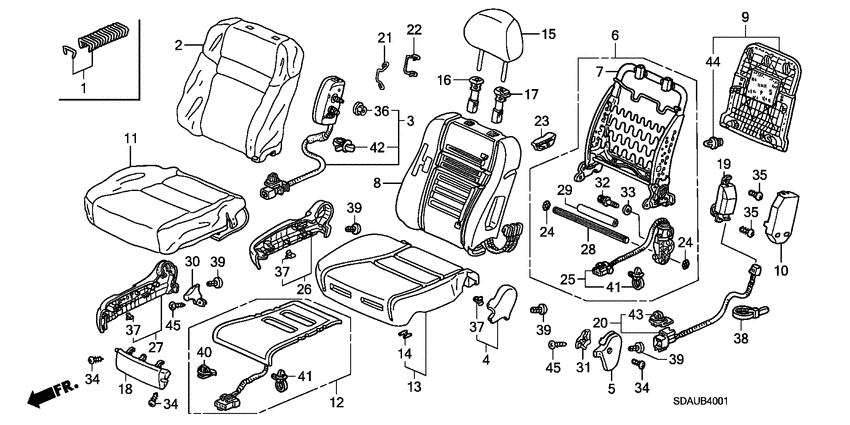

Front seat (R.; LH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
04811-SDC-A50ZA Cover setR. TRIM (LEATHER) (SIDE AIRBAG) *NH167L* |
04811-SDC-A50ZA |
US $783.36 |
||
|
2
|
2
04811-SDC-A50ZC Cover setR. TRIM (LEATHER) (SIDE AIRBAG) *YR239L* |
04811-SDC-A50ZC |
US $783.36 |
||
|
2
|
2
04811-SDC-A50ZB Cover setR. TRIM (LEATHER) (SIDE AIRBAG) *NH361L* |
04811-SDC-A50ZB |
US $783.36 |
||
|
3
|
3
06783-SDC-U80
Module kit
|
06783-SDC-U80 |
— | ||
|
4
|
4
81115-SDA-A01ZC CoverR. FR. SEAT CENTER *YR239L* |
81115-SDA-A01ZC |
US $11.62 |
||
|
4
|
4
81115-SDA-A01ZB
Cover
|
81115-SDA-A01ZB |
— | ||
|
4
|
4
81115-SDA-A01ZA CoverR. FR. SEAT CENTER *NH167L* |
81115-SDA-A01ZA |
US $11.62 |
||
|
7
|
7
81126-SDC-A11 Frame compR. FR. SEATBACK |
81126-SDC-A11 |
US $272.64 |
||
|
8
|
8
81127-SDC-A51 Pad compR. FR. SEATBACK (WITH OPDS SENSOR) |
81127-SDC-A51 |
US $323.84 |
||
|
9
|
9
81129-SDC-A51ZA
Cover comp.
00000000 - 7C200083 |
81129-SDC-A51ZA |
— | ||
|
9
|
9
81129-SDC-A52ZC Cover comp.FR. SEATBACK *YR239L* 7C200084 - |
81129-SDC-A52ZC |
US $139.52 |
||
|
9
|
9
81129-SDC-A51ZC
Cover comp.
00000000 - 7C200083 |
81129-SDC-A51ZC |
— | ||
|
9
|
9
81129-SDC-A52ZB Cover comp.FR. SEATBACK *NH361L* 7C200084 - |
81129-SDC-A52ZB |
US $139.52 |
||
|
9
|
9
81129-SDC-A51ZB
Cover comp.
00000000 - 7C200083 |
81129-SDC-A51ZB |
— | ||
|
9
|
9
81129-SDC-A52ZA Cover comp.FR. SEATBACK *NH167L* 7C200084 - |
81129-SDC-A52ZA |
US $139.52 |
||
|
10
|
10
81129-S5A-J01 CoverR. FR. SEATBACK OPDS |
81129-S5A-J01 |
US $5.74 |
||
|
11
|
11
81131-SDC-A51ZC
Cover
|
81131-SDC-A51ZC |
— | ||
|
11
|
11
81131-SDC-A51ZA CoverR. FR. CUSHION TRIM (LEATHER) *NH167L* |
81131-SDC-A51ZA |
US $870.40 |
||
|
11
|
11
81131-SDC-A51ZB
Cover
|
81131-SDC-A51ZB |
— | ||
|
12
|
12
81134-SDA-A03
Heater comp.
00000000 - 7C200352 |
81134-SDA-A03 |
— | ||
|
12
|
12
81134-SDA-A05
Heater comp.
7C200353 - |
81134-SDA-A05 |
— | ||
|
13
|
13
81137-SDC-A01 Pad compR. FR. SEAT CUSHION |
81137-SDC-A01 |
US $139.52 |
||
|
14
|
14
81138-S5A-G21 ClipH |
81138-S5A-G21 |
US $0.91 |
||
|
15
|
15
81140-SDC-A51ZB Headrest assyFR. SEAT (LEATHER) *NH361L* |
81140-SDC-A51ZB |
US $298.24 |
||
|
15
|
15
81140-SDC-A51ZA Headrest assyFR. SEAT (LEATHER) *NH167L* |
81140-SDC-A51ZA |
US $298.24 |
||
|
15
|
15
81140-SDC-A51ZC Headrest assyFR. SEAT (LEATHER) *YR239L* |
81140-SDC-A51ZC |
US $298.24 |
||
|
16
|
16
81143-SDA-A01ZC GuideHEADREST FREE *YR239L* |
81143-SDA-A01ZC |
US $6.02 |
||
|
16
|
16
81143-SDA-A01ZB GuideHEADREST FREE *NH361L* |
81143-SDA-A01ZB |
US $6.02 |
||
|
16
|
16
81143-SDA-A01ZA GuideHEADREST FREE *NH167L* |
81143-SDA-A01ZA |
US $6.02 |
||
|
17
|
17
81144-SDA-A01ZC Guide compHEADREST LOCK *YR239L* |
81144-SDA-A01ZC |
US $7.42 |
||
|
17
|
17
81144-SDA-A01ZB Guide compHEADREST LOCK *NH361L* |
81144-SDA-A01ZB |
US $7.42 |
||
|
17
|
17
81144-SDA-A01ZA Guide compHEADREST LOCK *NH167L* |
81144-SDA-A01ZA |
US $7.42 |
||
|
19
|
19
81161-SDA-A01 Opds unit |
81161-SDA-A01 |
US $524.80 |
||
|
20
|
20
81166-SDA-A00 CordOPDS |
81166-SDA-A00 |
US $15.74 |
||
|
21
|
21
81216-SDC-A11
Wire
|
81216-SDC-A11 |
— | ||
|
22
|
22
81217-SDC-A11
Wire
|
81217-SDC-A11 |
— | ||
|
23
|
23
81231-SDA-A01ZC KnobR. RECLINING *YR239L* |
81231-SDA-A01ZC |
US $4.20 |
||
|
23
|
23
81231-SDA-A01ZB KnobR. RECLINING *NH361L* |
81231-SDA-A01ZB |
US $4.20 |
||
|
23
|
23
81231-SDA-A01ZA KnobR. RECLINING *NH167L* |
81231-SDA-A01ZA |
US $4.20 |
||
|
26
|
26
81238-SDA-A01ZC CoverR. RECLINING *YR239L* |
81238-SDA-A01ZC |
US $17.66 |
||
|
26
|
26
81238-SDA-A01ZA CoverR. RECLINING *NH167L* |
81238-SDA-A01ZA |
US $17.66 |
||
|
26
|
26
81238-SDA-A01ZB
Cover
|
81238-SDA-A01ZB |
— | ||
|
35
|
35
90160-S5A-003 ScrewTRUSS, 6X12 |
90160-S5A-003 |
US $1.19 |
||
|
36
|
36
90321-SP0-A80 Nut-washer6MM |
90321-SP0-A80 |
from US $1.26 |
||
|
37
|
37
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
38
|
38
90650-KV3-000 BandWIRE |
90650-KV3-000 |
from US $2.59 |
||
|
39
|
39
90666-SA0-003YU ClipTRIM, 5MM *NH120L* |
90666-SA0-003YU |
US $1.89 |
||
|
40
|
40
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
41
|
41
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
42
|
42
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
43
|
43
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
44
|
44
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
