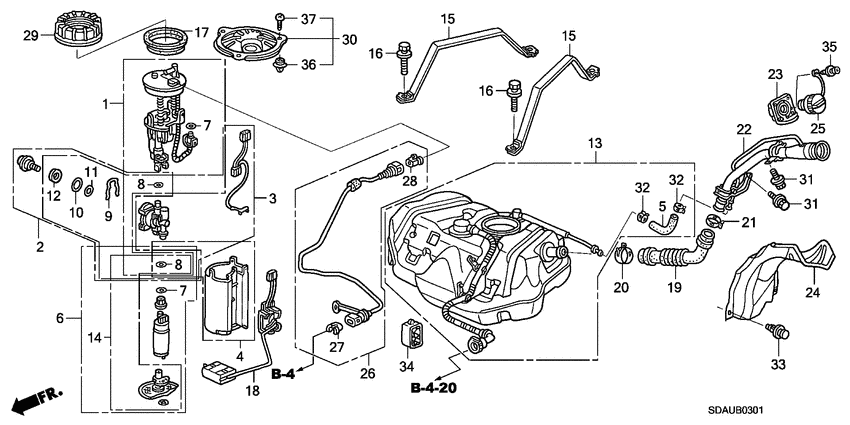

Fuel tank (2) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-SDA-A00 Strainer setFUEL |
16010-SDA-A00 |
US $56.70 |
||
|
2
|
2
16015-SDA-A00 Regulator assy |
16015-SDA-A00 |
US $38.53 |
||
|
3
|
3
16016-SDA-A00
Wire comp
|
16016-SDA-A00 |
— | ||
|
4
|
4
16018-SDA-A00
Reservoir set
|
16018-SDA-A00 |
— | ||
|
5
|
5
16727-SDA-A00
Tube set
|
16727-SDA-A00 |
— | ||
|
6
|
6
17040-SDA-A00 Pump setFUEL |
17040-SDA-A00 |
US $451.84 |
||
|
7
|
7
17041-S5A-930 O-ring |
17041-S5A-930 |
from US $1.61 |
||
|
8
|
8
17044-SAA-003 O-ring |
17044-SAA-003 |
US $1.61 |
||
|
9
|
9
17046-SAA-013 ClipREGULATOR |
17046-SAA-013 |
US $1.19 |
||
|
10
|
10
17047-SAA-003 O-ring |
17047-SAA-003 |
from US $1.61 |
||
|
11
|
11
17048-SAA-003 O-ring |
17048-SAA-003 |
from US $1.61 |
||
|
12
|
12
17049-SAA-003 RingBACK UP |
17049-SAA-003 |
from US $1.61 |
||
|
13
|
13
17500-SDA-A31
Tank comp.
|
17500-SDA-A31 |
— | ||
|
14
|
14
17516-SDA-A00 Filter compFUEL PUMP |
17516-SDA-A00 |
from US $33.54 |
||
|
15
|
15
17521-SDA-A00 BandFUEL TANK MOUNTING |
17521-SDA-A00 |
US $24.34 |
||
|
16
|
16
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $1.78 |
||
|
17
|
17
17574-SDA-A01 PackingFUEL PUMP MODULE |
17574-SDA-A01 |
US $11.06 |
||
|
18
|
18
17630-SDA-A00 Meter comp |
17630-SDA-A00 |
US $26.50 |
||
|
19
|
19
17651-SDA-A01
Tube comp
|
17651-SDA-A01 |
— | ||
|
20
|
20
17652-SDA-A31 ClipFILLER TUBE |
17652-SDA-A31 |
US $2.87 |
||
|
21
|
21
17652-SDA-003
Clip
|
17652-SDA-003 |
— | ||
| replacement | |||||
|
21
|
21
17652-TR0-003 Clip |
17652-TR0-003 |
US $3.67 |
||
|
22
|
22
17660-SDA-A02 Pipe compFUEL FILLER |
17660-SDA-A02 |
US $124.16 |
||
|
23
|
23
17662-SDA-A01 PackingFUEL FILLER |
17662-SDA-A01 |
US $12.18 |
||
|
24
|
24
17668-S84-A01 CoverFUEL FILLER PIPE |
17668-S84-A01 |
US $23.04 |
||
|
25
|
25
17670-SHJ-A02 Cap comp.FUEL FILLER(TOYODA) |
17670-SHJ-A02 |
US $38.02 |
||
|
26
|
26
17707-SDA-A01
Tube comp
|
17707-SDA-A01 |
— | ||
|
27
|
27
17711-S0X-A31 RetainerGREEN)(TOKAI |
17711-S0X-A31 |
from US $3.40 |
||
|
28
|
28
17711-S0X-003 RetainerORANGE) (TOKAI |
17711-S0X-003 |
from US $3.58 |
||
|
29
|
29
17719-S3Y-003 NutFUEL PUMP MODULE LOCK |
17719-S3Y-003 |
US $13.58 |
||
|
30
|
30
74660-SDA-A00 Cap assy.FLOOR MAINTENANCE HOLE |
74660-SDA-A00 |
US $11.20 |
||
|
31
|
31
90150-S04-003 BoltEARTH, 6X16 |
90150-S04-003 |
US $1.88 |
||
|
32
|
32
90700-SDA-003 ClampFUEL TUBE(D17.0) |
90700-SDA-003 |
US $2.59 |
||
|
33
|
33
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $2.44 |
||
|
34
|
34
91593-SDA-A01 ClipFUEL TUBE |
91593-SDA-A01 |
from US $3.01 |
||
|
35
|
35
91594-S1A-E01 ClipFUEL FILLER CAP |
91594-S1A-E01 |
US $3.11 |
||
|
36
|
36
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
37
|
37
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
