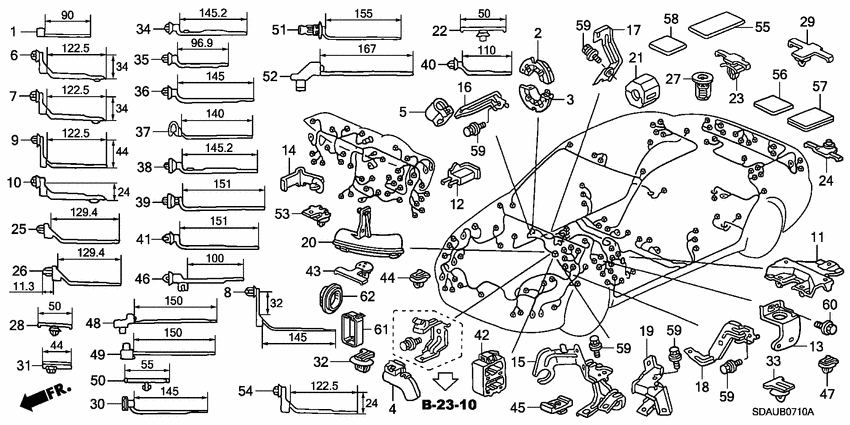

Harness band/bracket (LH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32112-S2K-003 BandCABLE (90MM) |
32112-S2K-003 |
US $1.61 |
||
|
2
|
2
32113-PLD-003 CollarHARNESS GROMMET |
32113-PLD-003 |
US $2.31 |
||
|
3
|
3
32113-PLD-003 CollarHARNESS GROMMET |
32113-PLD-003 |
US $2.31 |
||
|
4
|
4
32118-PLC-003 HolderCORRUGATED TUBE (DARK GREEN)(19MM) |
32118-PLC-003 |
US $2.52 |
||
|
5
|
5
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
6
|
6
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
7
|
7
32132-S6A-003 BandWIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
32132-S6A-003 |
US $2.73 |
||
|
8
|
8
32133-SLA-003 BandHARNESS OFFSET(30) (DARK GRAY)(145MM) |
32133-SLA-003 |
from US $0.46 |
||
|
9
|
9
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
10
|
10
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
11
|
11
32141-SDA-A00 ProtectorFLOOR HARNESS |
32141-SDA-A00 |
US $7.84 |
||
|
13
|
13
32151-SDA-A00 BracketCOUPLER |
32151-SDA-A00 |
US $2.52 |
||
|
14
|
14
32177-SDA-003 ClipFR. WIPER(BLACK) |
32177-SDA-003 |
US $2.87 |
||
|
15
|
15
32743-RAA-A02
Stay s
|
32743-RAA-A02 |
— | ||
|
16
|
16
32745-RAA-A00
Stay l
|
32745-RAA-A00 |
— | ||
|
17
|
17
32746-RAA-A01
Stay c
|
32746-RAA-A01 |
— | ||
|
18
|
18
32747-RAA-A00
Stay d
|
32747-RAA-A00 |
— | ||
|
20
|
20
32756-SDR-A00 GuideDOOR HARNESS |
32756-SDR-A00 |
US $11.34 |
||
|
23
|
23
90667-SB2-003 ClipWIRE HARNESS (GRAY) (HARNESS TAPING) (50MM) |
90667-SB2-003 |
US $1.54 |
||
|
24
|
24
91476-SB6-003 ClipROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) |
91476-SB6-003 |
US $2.03 |
||
|
25
|
25
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
26
|
26
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
28
|
28
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
29
|
29
91510-SA5-003 ClipOFFSET(10)(BROWN)(50MM) |
91510-SA5-003 |
US $2.38 |
||
|
30
|
30
91531-SDA-003 ClipHARNESS BAND (NATURAL) (145MM) |
91531-SDA-003 |
US $1.89 |
||
|
31
|
31
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
32
|
32
91533-SDA-003 ClipCOUPLER (BEIGE) |
91533-SDA-003 |
from US $1.33 |
||
|
33
|
33
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
34
|
34
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
35
|
35
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
36
|
36
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
37
|
37
91541-S6M-003 ClipHARNESS BAND (BLACK) (140MM) |
91541-S6M-003 |
US $1.89 |
||
|
38
|
38
91545-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
91545-SV4-003 |
US $3.11 |
||
|
39
|
39
91545-S2A-003 ClipHARNESS BAND (BROWN) (151MM) (WITH SEAL) |
91545-S2A-003 |
US $1.89 |
||
|
40
|
40
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
41
|
41
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
42
|
42
91555-RAA-A01 HolderCOUPLER |
91555-RAA-A01 |
US $5.46 |
||
|
43
|
43
91555-SE0-003 ClipWIRE HARNESS(BLACK) |
91555-SE0-003 |
US $2.17 |
||
|
45
|
45
91556-RAD-L01
Sub holder
|
91556-RAD-L01 |
— | ||
|
46
|
46
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
47
|
47
91556-SP0-003 ClipCOUPLER(BROWN) |
91556-SP0-003 |
from US $1.26 |
||
|
48
|
48
91559-PAA-A01 ClipHARNESS BAND(GRAY) (150MM) |
91559-PAA-A01 |
US $2.31 |
||
|
49
|
49
91559-RCA-A01 ClipHARNESS BAND(DARK GRAY) (150MM) |
91559-RCA-A01 |
US $2.59 |
||
|
50
|
50
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
52
|
52
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
53
|
53
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
54
|
54
91577-SS0-003 ClipWIRE HARNESS (BLUE) (122.5MM) |
91577-SS0-003 |
US $2.96 |
||
|
55
|
55
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $3.26 |
||
|
57
|
57
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
59
|
59
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
60
|
60
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
61
|
61
91726-SDA-300 Ring aGROMMET |
91726-SDA-300 |
US $8.54 |
||
|
62
|
62
91727-SDA-300 Ring cGROMMET |
91727-SDA-300 |
US $7.28 |
