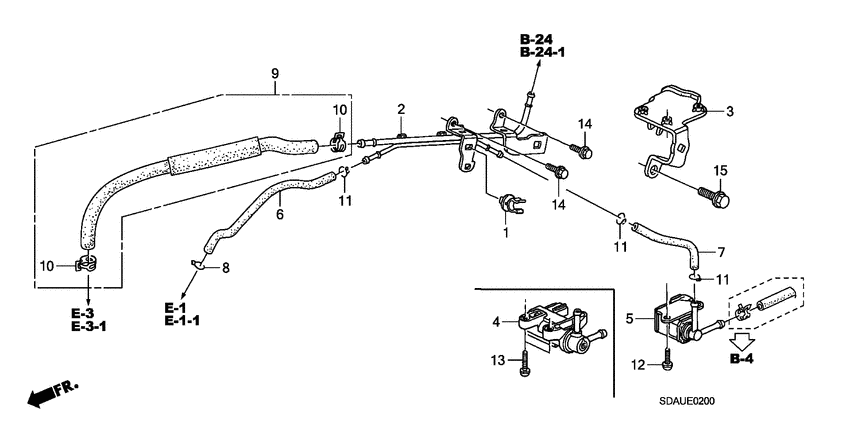

Install pipe/tubing (L4) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16725-PNA-003 Clamp aFUEL HOSE |
16725-PNA-003 |
from US $1.21 |
||
|
2
|
2
17400-RAA-A00 PipeINSTALL |
17400-RAA-A00 |
US $30.08 |
||
|
3
|
3
36161-RAA-A00
Stay comp
|
36161-RAA-A00 |
— | ||
|
4
|
4
36162-RAA-A01 ValvePURGE CONTROL SOLENOID |
36162-RAA-A01 |
US $160.83 |
||
|
6
|
6
36165-RAD-L10
Tube
|
36165-RAD-L10 |
— | ||
|
7
|
7
36167-RAA-A10
Tube
|
36167-RAA-A10 |
— | ||
|
8
|
8
36168-RAD-L10 ClipPURGE |
36168-RAD-L10 |
US $1.33 |
||
|
9
|
9
46408-SDA-A02
Tube a
|
46408-SDA-A02 |
— | ||
|
10
|
10
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
11
|
11
91402-SDC-000 ClipTUBE(B12) |
91402-SDC-000 |
US $0.91 |
||
|
13
|
13
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
14
|
14
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
15
|
15
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
