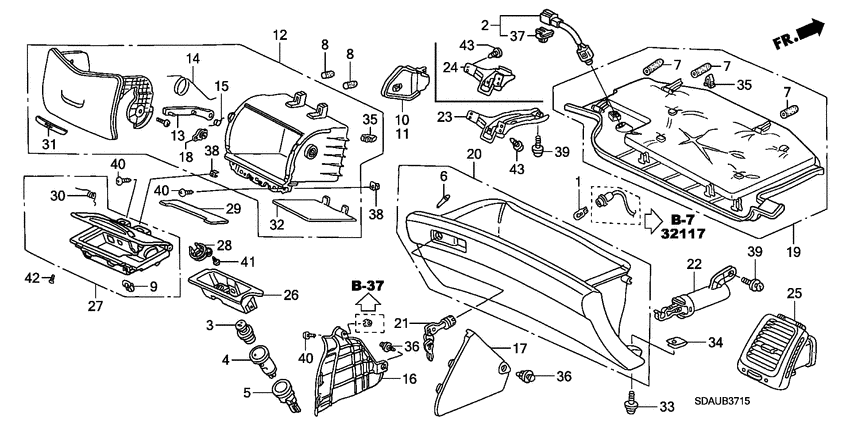

Instrument panel garnish (PASSENGER SIDE; LH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-S70-003 Bulb12V 3.8W 2CP |
33301-S70-003 |
US $2.04 |
||
|
3
|
3
39610-S2H-G01 Knob assy |
39610-S2H-G01 |
from US $9.52 |
||
|
4
|
4
39620-S0X-003
Socket assy
|
39620-S0X-003 |
— | ||
|
5
|
5
39630-S0X-003 Ring assyTYPE INCLUDING BULB |
39630-S0X-003 |
US $6.44 |
||
|
6
|
6
66418-SB2-000
Stopper
|
66418-SB2-000 |
— | ||
|
7
|
7
66844-SA7-000 CapINSTRUMENT PANEL STAY |
66844-SA7-000 |
US $4.07 |
||
|
8
|
8
77199-SDA-A00 CapINSTRUMENT |
77199-SDA-A00 |
US $1.40 |
||
|
9
|
9
77205-S0X-A01 ClipSNAP FITTING |
77205-S0X-A01 |
from US $1.66 |
||
|
10
|
10
77265-SDA-A00 BlindR. CENTER POCKET |
77265-SDA-A00 |
US $5.18 |
||
|
11
|
11
77266-SDA-A00 BlindL. CENTER POCKET |
77266-SDA-A00 |
US $5.18 |
||
|
12
|
12
77280-SDC-A35ZA Pocket assyCENTER *NH484L* |
77280-SDC-A35ZA |
US $194.56 |
||
|
12
|
12
77280-SDC-A35ZF Pocket assyCENTER *YR339L* |
77280-SDC-A35ZF |
US $194.56 |
||
|
13
|
13
77282-SDC-A01 G-sensor comp. |
77282-SDC-A01 |
US $13.44 |
||
|
14
|
14
77283-SDA-A01
Spring a
|
77283-SDA-A01 |
— | ||
|
15
|
15
77284-SDA-A01
Spring b
|
77284-SDA-A01 |
— | ||
|
16
|
16
77285-SDA-A00ZC CoverINSTRUMENT DRIVER CENTER LOWER *YR239L* |
77285-SDA-A00ZC |
US $11.62 |
||
|
16
|
16
77285-SDA-A00ZB CoverINSTRUMENT DRIVER CENTER LOWER *NH361L* |
77285-SDA-A00ZB |
US $11.62 |
||
|
16
|
16
77285-SDA-A00ZA CoverINSTRUMENT DRIVER CENTER LOWER *NH167L* |
77285-SDA-A00ZA |
US $11.62 |
||
|
17
|
17
77286-SDA-A00ZA CoverINSTRUMENT PASSENGER CENTER LOWER *NH167L* |
77286-SDA-A00ZA |
US $12.74 |
||
|
17
|
17
77286-SDA-A00ZC CoverINSTRUMENT PASSENGER CENTER LOWER *YR239L* |
77286-SDA-A00ZC |
US $12.74 |
||
|
17
|
17
77286-SDA-A00ZB CoverINSTRUMENT PASSENGER CENTER LOWER *NH361L* |
77286-SDA-A00ZB |
US $11.62 |
||
|
18
|
18
77289-SDA-A01 Damper |
77289-SDA-A01 |
US $8.82 |
||
|
19
|
19
77345-SDB-A00
Cover assy.
|
77345-SDB-A00 |
— | ||
| replacement | |||||
|
19
|
19
77345-SDG-P00 Cover assy.PASSENGER UNDER |
77345-SDG-P00 |
US $68.68 |
||
|
20
|
20
77500-SDC-D01ZC Box assyGLOVE *NH361L* |
77500-SDC-D01ZC |
US $124.80 |
||
|
20
|
20
77500-SDC-D01ZA Box assyGLOVE *NH167L* |
77500-SDC-D01ZA |
US $124.80 |
||
|
20
|
20
77500-SDC-D01ZB Box assyGLOVE *YR239L* |
77500-SDC-D01ZB |
US $124.80 |
||
|
21
|
21
77520-SDA-A01 CylinderGLOVE BOX |
77520-SDA-A01 |
US $22.14 |
||
|
22
|
22
77530-SDA-A02
Damper assy.
|
77530-SDA-A02 |
— | ||
|
23
|
23
77545-SDA-A00ZZ
Striker comp.
|
77545-SDA-A00ZZ |
— | ||
|
25
|
25
77620-SDA-A21ZB Outlet assyR. SIDE *YR248L* |
77620-SDA-A21ZB |
US $61.31 |
||
|
25
|
25
77620-SDA-A21ZA Outlet assyR. SIDE *NH167L* |
77620-SDA-A21ZA |
US $67.20 |
||
|
26
|
26
77700-SDC-Y01 Ashtray assy.FR. |
77700-SDC-Y01 |
US $21.25 |
||
|
27
|
27
77711-SDC-Y30 Holder compFR. ASHTRAY |
77711-SDC-Y30 |
US $44.16 |
||
|
28
|
28
77712-SDC-Y11 CoverCIGARETTE LIGHTER |
77712-SDC-Y11 |
US $2.38 |
||
|
29
|
29
77713-SDA-K31ZA PanelFR. ASHTRAY *NH484L* |
77713-SDA-K31ZA |
US $72.32 |
||
|
29
|
29
77713-SDA-K31ZH PanelFR. ASHTRAY *YR339L* |
77713-SDA-K31ZH |
US $72.32 |
||
|
30
|
30
77715-SDA-K11
Spring
|
77715-SDA-K11 |
— | ||
|
31
|
31
77756-SDA-A11ZA Plate comp. *tchrome*PLATING |
77756-SDA-A11ZA |
US $13.44 |
||
|
32
|
32
77758-SDA-A01
Sheet comp.
|
77758-SDA-A01 |
— | ||
|
33
|
33
90140-SDA-A00 Bolt-washer5X19 |
90140-SDA-A00 |
from US $1.39 |
||
|
34
|
34
90306-SA0-000 NutFLOATING, 5MM |
90306-SA0-000 |
from US $2.66 |
||
|
35
|
35
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
36
|
36
90671-SDA-003ZB Clip assy.6MM *NH361L* |
90671-SDA-003ZB |
US $1.61 |
||
|
36
|
36
90671-SDA-003ZC Clip assy.6MM *YR239L* |
90671-SDA-003ZC |
from US $2.48 |
||
|
36
|
36
90671-SDA-003ZA Clip assy.6MM *NH167L* |
90671-SDA-003ZA |
US $1.61 |
||
|
38
|
38
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
39
|
39
93894-050-160-7 Screw-washer5X16 |
93894-050-160-7 |
from US $0.44 |
||
|
40
|
40
93903-14480 ScrewTAPPING, 4X16 |
93903-14480 |
US $0.37 |
||
|
41
|
41
93903-22380 ScrewTAPPING, 3X12 |
93903-22380 |
from US $0.41 |
||
|
42
|
42
93905-32180 ScrewTAPPING, 3X8 |
93905-32180 |
US $0.37 |
||
|
43
|
43
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
