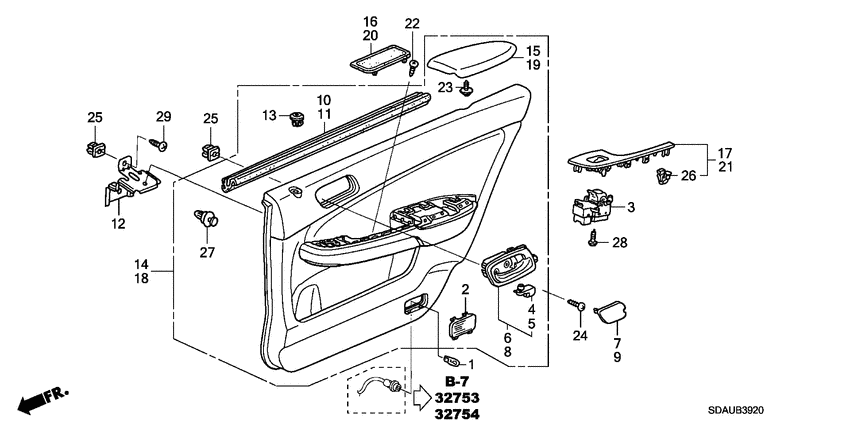

Rear door lining Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-S70-003 Bulb12V 3.8W 2CP |
33301-S70-003 |
US $2.04 |
||
|
2
|
2
34261-SDA-A01 Lens |
34261-SDA-A01 |
US $6.02 |
||
|
3
|
3
35770-SDA-A21
Switch assy
|
35770-SDA-A21 |
— | ||
|
4
|
4
72134-S2X-003
Snap
|
72134-S2X-003 |
— | ||
|
5
|
5
72174-S2X-003
Snap
|
72174-S2X-003 |
— | ||
|
6
|
6
72620-SDA-A02ZB Handle assyR. RR. DOOR INSIDE *YR248L* |
72620-SDA-A02ZB |
US $38.27 |
||
|
6
|
6
72620-SDA-A02ZA Handle assyR. RR. DOOR INSIDE *NH167L* |
72620-SDA-A02ZA |
US $38.27 |
||
|
7
|
7
72621-SDA-A01ZA CapR. RR. DOOR INSIDE HANDLE *NH167L* |
72621-SDA-A01ZA |
US $4.13 |
||
|
7
|
7
72621-SDA-A01ZB CapR. RR. DOOR INSIDE HANDLE *YR248L* |
72621-SDA-A01ZB |
US $4.13 |
||
|
8
|
8
72660-SDA-A02ZB Handle assyL. RR. DOOR INSIDE *YR248L* |
72660-SDA-A02ZB |
US $38.27 |
||
|
8
|
8
72660-SDA-A02ZA Handle assyL. RR. DOOR INSIDE *NH167L* |
72660-SDA-A02ZA |
US $38.27 |
||
|
9
|
9
72661-SDA-A01ZA CapL. RR. DOOR INSIDE HANDLE *NH167L* |
72661-SDA-A01ZA |
US $4.13 |
||
|
9
|
9
72661-SDA-A01ZB CapL. RR. DOOR INSIDE HANDLE *YR248L* |
72661-SDA-A01ZB |
US $4.13 |
||
|
10
|
10
72835-SDR-H01
Weatherstrip
|
72835-SDR-H01 |
— | ||
|
11
|
11
72875-SDR-H01
Weatherstrip
|
72875-SDR-H01 |
— | ||
|
12
|
12
83508-SDA-000ZZ BracketPULL POCKET |
83508-SDA-000ZZ |
US $3.78 |
||
|
13
|
13
83508-SDA-003ZB CoverLOCK KNOB *YR248L* |
83508-SDA-003ZB |
US $3.92 |
||
|
13
|
13
83508-SDA-003ZA
Cover
|
83508-SDA-003ZA |
— | ||
|
14
|
14
83700-SDR-H01ZB Lining assy.R. RR. DOOR (LEATHER) *TYPEA* (BLACK) |
83700-SDR-H01ZB |
US $454.40 |
||
|
14
|
14
83700-SDR-H01ZD Lining assy.R. RR. DOOR (LEATHER) *TYPEB* (GRAY/BLACK) |
83700-SDR-H01ZD |
US $454.40 |
||
|
14
|
14
83700-SDR-H01ZC
Lining assy.
|
83700-SDR-H01ZC |
— | ||
|
15
|
15
83702-SDA-A31ZA
Armrest assy
|
83702-SDA-A31ZA |
— | ||
|
15
|
15
83702-SDA-A31ZC
Armrest assy
|
83702-SDA-A31ZC |
— | ||
|
15
|
15
83702-SDA-A31ZB
Armrest assy
|
83702-SDA-A31ZB |
— | ||
|
16
|
16
83705-SDA-A01ZA CapR. RR. PULL POCKET *NH167L* |
83705-SDA-A01ZA |
US $3.36 |
||
|
17
|
17
83741-SDA-A32ZA Panel assy.R. RR. POWER SWITCH *NH484L* |
83741-SDA-A32ZA |
US $55.68 |
||
|
17
|
17
83741-SDA-A32ZC Panel assy.R. RR. POWER SWITCH *YR339L* |
83741-SDA-A32ZC |
US $55.68 |
||
|
18
|
18
83750-SDR-H01ZD Lining assy.L. RR. DOOR (LEATHER) *TYPEB* (GRAY/BLACK) |
83750-SDR-H01ZD |
US $454.40 |
||
|
18
|
18
83750-SDR-H01ZB Lining assy.L. RR. DOOR (LEATHER) *TYPEA* (BLACK) |
83750-SDR-H01ZB |
US $454.40 |
||
|
18
|
18
83750-SDR-H01ZC
Lining assy.
|
83750-SDR-H01ZC |
— | ||
|
19
|
19
83752-SDA-A31ZC
Armrest assy
|
83752-SDA-A31ZC |
— | ||
|
19
|
19
83752-SDA-A31ZB
Armrest assy
|
83752-SDA-A31ZB |
— | ||
|
19
|
19
83752-SDA-A31ZA
Armrest assy
|
83752-SDA-A31ZA |
— | ||
|
20
|
20
83755-SDA-A01ZA CapL. RR. PULL POCKET *NH167L* |
83755-SDA-A01ZA |
US $3.36 |
||
|
21
|
21
83791-SDA-A32ZC
Panel assy.
|
83791-SDA-A32ZC |
— | ||
|
21
|
21
83791-SDA-A32ZA
Panel assy.
|
83791-SDA-A32ZA |
— | ||
|
22
|
22
90101-S03-000 ScrewTAPPING, 4X16 |
90101-S03-000 |
US $1.05 |
||
|
23
|
23
90132-SS0-000 ScrewTAPPING, 4X10 (PO) |
90132-SS0-000 |
from US $1.12 |
||
|
24
|
24
90141-SDA-000 ScrewTAPPING, 5X12 |
90141-SDA-000 |
US $1.05 |
||
|
25
|
25
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
26
|
26
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
27
|
27
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
28
|
28
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
29
|
29
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
