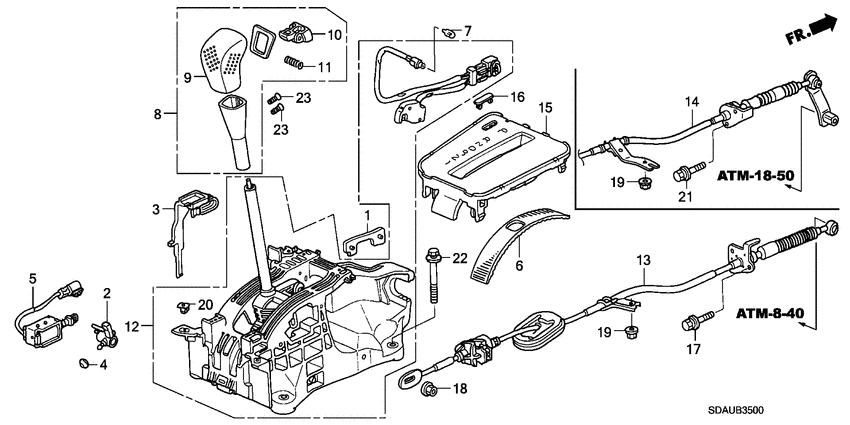

Select lever (LH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54020-SDC-A81 PlateDETENT |
54020-SDC-A81 |
US $34.82 |
||
|
2
|
2
54023-SDC-A81
Stopper
|
54023-SDC-A81 |
— | ||
|
3
|
3
54030-SDC-A81 ReleaseSHIFT LOCK |
54030-SDC-A81 |
US $10.92 |
||
|
4
|
4
54032-SEA-981 CushionSHIFT LOCK |
54032-SEA-981 |
US $10.50 |
||
|
5
|
5
54040-SDC-A81
Solenoid assy.
|
54040-SDC-A81 |
— | ||
|
6
|
6
54050-SDC-A82 CoverSELECT LEVER |
54050-SDC-A82 |
US $7.81 |
||
|
7
|
7
54070-SDC-A81 Bulb14V 1.4W |
54070-SDC-A81 |
from US $4.66 |
||
|
8
|
8
54130-SDC-A52ZA Knob assySELECT LEVER (LEATHER) *NH167L* |
54130-SDC-A52ZA |
US $218.88 |
||
|
9
|
9
54131-SDC-A52 Knob compLEATHER |
54131-SDC-A52 |
US $168.96 |
||
|
10
|
10
54132-SDC-A82 Knob comp.PUSH |
54132-SDC-A82 |
US $23.04 |
||
|
11
|
11
54133-SDC-A82
Spring
|
54133-SDC-A82 |
— | ||
|
12
|
12
54200-SDC-A83
Bracket comp.
|
54200-SDC-A83 |
— | ||
|
13
|
13
54315-SDA-A84
Wire
|
54315-SDA-A84 |
— | ||
|
15
|
15
54710-SDC-A81 Escutcheon comp. |
54710-SDC-A81 |
US $61.31 |
||
|
16
|
16
54716-SDC-A81 LidESCUTCHEON |
54716-SDC-A81 |
US $6.69 |
||
|
17
|
17
90106-SDA-A00 Bolt-washer6X25 |
90106-SDA-A00 |
US $1.82 |
||
|
18
|
18
90351-SB2-003 NutFLANGE, 8MM |
90351-SB2-003 |
from US $2.31 |
||
|
19
|
19
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
20
|
20
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
22
|
22
93405-080-350-8 Bolt-washer8X35 |
93405-080-350-8 |
US $0.81 |
||
|
23
|
23
93600-050-080-G ScrewFLAT, 5X8 |
93600-050-080-G |
from US $0.37 |
