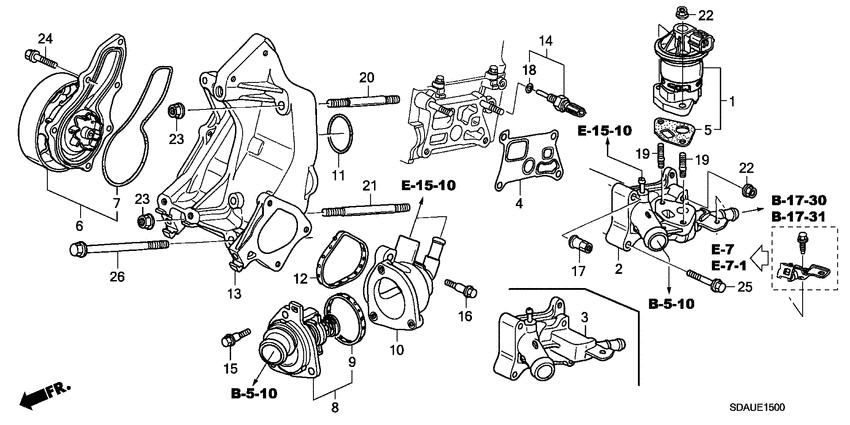

Water pump (L4) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18011-RAA-A00
Valve set
|
18011-RAA-A00 |
— | ||
|
2
|
2
18712-RAA-A00 Passage comp.EGR |
18712-RAA-A00 |
US $79.36 |
||
|
4
|
4
18714-RAA-A01 GasketEGR PASSAGE |
18714-RAA-A01 |
from US $11.07 |
||
|
5
|
5
18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) |
18715-PB2-000 |
from US $6.51 |
||
|
6
|
6
19200-RFE-003 Water Pump |
19200-RFE-003 |
from US $121.95 |
||
|
7
|
7
19222-RAD-003 PackingWATER PUMP |
19222-RAD-003 |
from US $3.64 |
||
|
8
|
8
19301-RAA-A01
Thermostat assy.
|
19301-RAA-A01 |
— | ||
|
8
|
8
19301-RAA-A02 Thermostat assyNIPPON THERMOSTAT |
19301-RAA-A02 |
US $68.02 |
||
|
9
|
9
19305-RAA-A01 SealTHERMOSTAT COVER (FUJI SEIKO) |
19305-RAA-A01 |
US $3.36 |
||
|
9
|
9
19305-PNA-003 SealTHERMOSTAT COVER (NIPPON THERMOSTAT) |
19305-PNA-003 |
US $3.34 |
||
|
10
|
10
19320-RAA-A02 Case comp.THERMOSTAT (NIPPON THERMOSTAT) |
19320-RAA-A02 |
from US $50.42 |
||
|
10
|
10
19320-RAA-A01 Case comp.THERMOSTAT (FUJI SEIKO) |
19320-RAA-A01 |
US $30.19 |
||
|
11
|
11
19322-PCX-003 O-ring43.8X3.1 |
19322-PCX-003 |
from US $2.89 |
||
|
12
|
12
19322-RAA-A01
Seal
|
19322-RAA-A01 |
— | ||
| replacement | |||||
|
12
|
12
19322-PNA-003 SealTHERMOSTAT CASE (NIPPON THERMOSTAT) |
19322-PNA-003 |
from US $4.22 |
||
|
12
|
12
19322-PNA-003 SealTHERMOSTAT CASE (NIPPON THERMOSTAT) |
19322-PNA-003 |
from US $4.22 |
||
|
13
|
13
19410-RAA-A00 PassageWATER |
19410-RAA-A00 |
US $176.53 |
||
|
14
|
14
37870-PNA-003 Sensor assyWATER TEMP (KEIHIN) |
37870-PNA-003 |
from US $30.21 |
||
|
15
|
15
90050-RAA-A01 BoltSPECIAL, 6X22 (FUJI SEIKO) |
90050-RAA-A01 |
US $2.66 |
||
|
15
|
15
90050-PNA-003 BoltSPECIAL, 6X19 (NIPPON THERMOSTAT) |
90050-PNA-003 |
US $1.19 |
||
|
16
|
16
90051-PNA-000 BoltSPECIAL, 6X28 |
90051-PNA-000 |
from US $1.33 |
||
|
17
|
17
90204-PH7-000 NutSPECIAL |
90204-PH7-000 |
US $4.48 |
||
|
18
|
18
91307-PNA-003 O-ring9.5X1.9 |
91307-PNA-003 |
from US $1.39 |
||
|
19
|
19
92900-08022-1B BoltSTUD, 8X22 |
92900-08022-1B |
from US $0.74 |
||
|
20
|
20
92900-10060-0B BoltSTUD, 10X60 |
92900-10060-0B |
US $1.33 |
||
|
21
|
21
92900-10100-0B BoltSTUD, 10X100 |
92900-10100-0B |
US $1.63 |
||
|
22
|
22
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
23
|
23
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
24
|
24
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
25
|
25
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
|
26
|
26
95701-101-050-8 BoltFLANGE, 10X105 |
95701-101-050-8 |
from US $1.63 |
||
