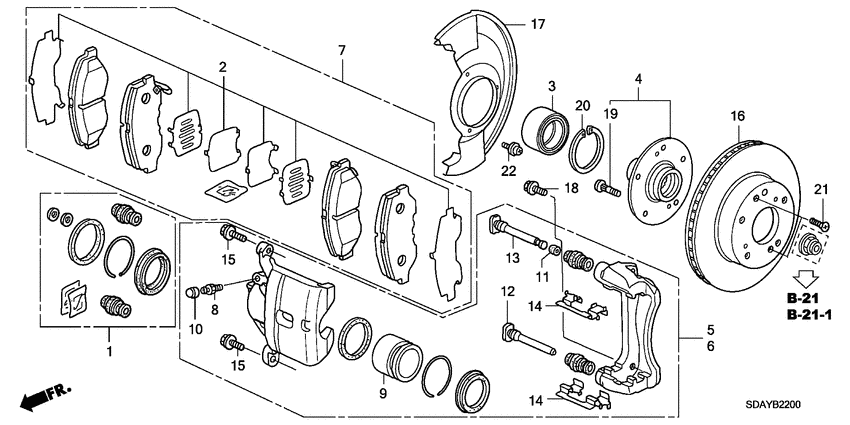

Front brake (L4) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.4 VT
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-SDA-A00 Caliper setFR. |
01463-SDA-A00 |
US $31.36 |
||
|
2
|
2
06455-SDC-A01
Shim set
|
06455-SDC-A01 |
— | ||
|
3
|
3
44300-SDA-A51
Bearing assy
|
44300-SDA-A51 |
— | ||
| replacement | |||||
|
3
|
3
44300TR4A51 BEARING ASSY FR H |
44300TR4A51 |
US $94.25 |
||
|
3
|
3
44300-SDA-A52
Bearing assy
|
44300-SDA-A52 |
— | ||
| replacement | |||||
|
3
|
3
44300-SDA-A53 Bearing assy |
44300-SDA-A53 |
from US $115.67 |
||
|
4
|
4
44600-SDA-A10 Hub assy, FR. |
44600-SDA-A10 |
US $119.68 |
||
|
5
|
5
45018-SDC-A01 Caliper sub assy.R. FR. |
45018-SDC-A01 |
US $487.68 |
||
|
6
|
6
45019-SDC-A01 Caliper sub assy.L. FR. |
45019-SDC-A01 |
US $487.68 |
||
|
7
|
7
45022-SDC-A10 Pad setFR. |
45022-SDC-A10 |
US $149.60 |
||
|
8
|
8
45215-671-672 ScrewBLEEDER |
45215-671-672 |
US $9.24 |
||
|
9
|
9
45216-S9A-A01
Piston
|
45216-S9A-A01 |
— | ||
| replacement | |||||
|
9
|
9
45216-TA0-A01 Piston |
45216-TA0-A01 |
US $36.61 |
||
|
10
|
10
45219-671-672 CapBLEEDER SCREW |
45219-671-672 |
from US $2.73 |
||
|
11
|
11
45233-S04-A01 Bush |
45233-S04-A01 |
from US $2.10 |
||
|
12
|
12
45235-S9A-A01 Pin a |
45235-S9A-A01 |
from US $8.63 |
||
|
13
|
13
45236-S9A-A01 Pin b |
45236-S9A-A01 |
from US $8.63 |
||
|
14
|
14
45237-S9A-003 ClipPAD |
45237-S9A-003 |
US $3.99 |
||
|
15
|
15
45240-S01-A01 Bolt |
45240-S01-A01 |
from US $2.29 |
||
|
16
|
16
45251-SDC-A00
Disk
|
45251-SDC-A00 |
— | ||
| replacement | |||||
|
16
|
16
45251TA0A02 DISK FR BRAKE |
45251TA0A02 |
from US $131.92 |
||
|
17
|
17
45255-SDA-000 GuardFR. SPLASH |
45255-SDA-000 |
US $37.70 |
||
|
18
|
18
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.03 |
||
|
19
|
19
90113-SA0-006 BoltWHEEL (SAGA) |
90113-SA0-006 |
from US $2.59 |
||
| replacement | |||||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.93 |
||
| replacement | |||||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-S5H-005 BoltWHEEL (THAI MEIRA) |
90113-S5H-005 |
from US $3.70 |
||
|
20
|
20
90681-SDA-A00 CirclipSPECIAL INTERNAL, 86MM |
90681-SDA-A00 |
US $9.61 |
||
|
21
|
21
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
22
|
22
93892-060-140-8 Screw-washer6X14 |
93892-060-140-8 |
from US $0.52 |
||
