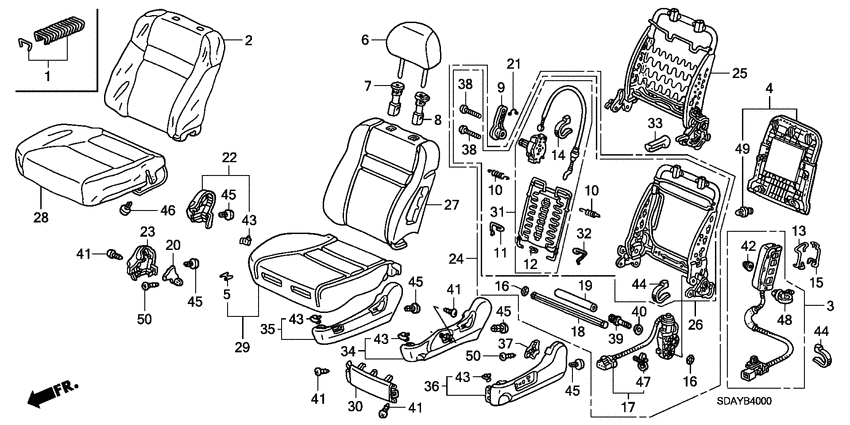

Front seat (L.) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.4 VT
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
81521-SDC-A22ZB CoverL. FR. SEATBACK TRIM *NH361L* |
81521-SDC-A22ZB |
US $332.80 |
||
|
2
|
2
81521-SDC-A22ZC CoverL. FR. SEATBACK TRIM *YR239L* |
81521-SDC-A22ZC |
US $332.80 |
||
|
5
|
5
81138-S5A-G21 ClipH |
81138-S5A-G21 |
US $0.91 |
||
|
6
|
6
81140-SDC-A02ZC Headrest assyFR. SEAT *YR239L* |
81140-SDC-A02ZC |
US $138.24 |
||
|
6
|
6
81140-SDC-A02ZB Headrest assyFR. SEAT *NH361L* |
81140-SDC-A02ZB |
US $138.24 |
||
|
7
|
7
81143-SDA-A01ZB GuideHEADREST FREE *NH361L* |
81143-SDA-A01ZB |
US $6.02 |
||
|
7
|
7
81143-SDA-A01ZC GuideHEADREST FREE *YR239L* |
81143-SDA-A01ZC |
US $6.02 |
||
|
8
|
8
81144-SDA-A01ZB Guide compHEADREST LOCK *NH361L* |
81144-SDA-A01ZB |
US $7.42 |
||
|
8
|
8
81144-SDA-A01ZC Guide compHEADREST LOCK *YR239L* |
81144-SDA-A01ZC |
US $7.42 |
||
|
22
|
22
81515-SDA-A21ZC
Cover
|
81515-SDA-A21ZC |
— | ||
|
22
|
22
81515-SDA-A21ZB
Cover
|
81515-SDA-A21ZB |
— | ||
|
25
|
25
81526-SDC-A01 Frame compL. FR. SEATBACK |
81526-SDC-A01 |
US $299.52 |
||
|
27
|
27
81527-SDC-A01
Pad comp
|
81527-SDC-A01 |
— | ||
|
28
|
28
81531-SDC-A22ZC CoverL. FR. CUSHION TRIM *YR239L* |
81531-SDC-A22ZC |
US $332.80 |
||
|
28
|
28
81531-SDC-A22ZB CoverL. FR. CUSHION TRIM *NH361L* |
81531-SDC-A22ZB |
US $332.80 |
||
|
29
|
29
81537-SDC-A21 Pad compL. FR. SEAT CUSHION |
81537-SDC-A21 |
US $153.60 |
||
|
33
|
33
81631-SDA-A01ZC KnobL. RECLINING *YR239L* |
81631-SDA-A01ZC |
US $4.13 |
||
|
33
|
33
81631-SDA-A01ZB KnobL. RECLINING *NH361L* |
81631-SDA-A01ZB |
US $4.20 |
||
|
34
|
34
81638-SDA-A21ZC
Cover
|
81638-SDA-A21ZC |
— | ||
|
34
|
34
81638-SDA-A21ZB
Cover
|
81638-SDA-A21ZB |
— | ||
|
41
|
41
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
43
|
43
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
45
|
45
90666-SA0-003YU ClipTRIM, 5MM *NH120L* |
90666-SA0-003YU |
US $1.89 |
||
|
46
|
46
90667-SA7-003YG ClipMAT, 5MM *NH120L* |
90667-SA7-003YG |
US $1.54 |
