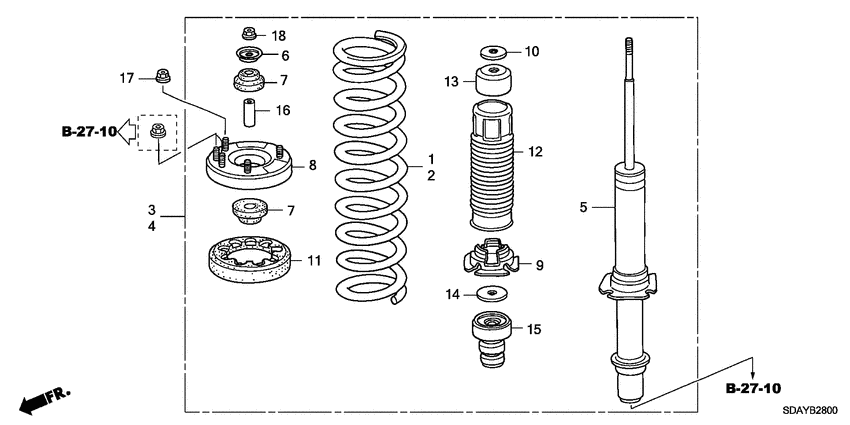

Front shock absorber Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.4 VT
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51401-SDA-Y03
Spring
|
51401-SDA-Y03 |
— | ||
|
1
|
1
51401-SDA-A13
Spring
|
51401-SDA-A13 |
— | ||
| replacement | |||||
|
1
|
1
51401-SEA-E12
Spring, Front
|
51401-SEA-E12 |
— | ||
|
2
|
2
51401-SDA-Y03
Spring
|
51401-SDA-Y03 |
— | ||
|
2
|
2
51401-SDA-A03
Spring
|
51401-SDA-A03 |
— | ||
|
3
|
3
51601-SDA-A22
Absorber assy
|
51601-SDA-A22 |
— | ||
|
3
|
3
51601-SDA-Y05
Absorber assy
|
51601-SDA-Y05 |
— | ||
|
4
|
4
51602-SDA-A05
Absorber assy
|
51602-SDA-A05 |
— | ||
|
4
|
4
51602-SDA-Y05
Absorber assy
|
51602-SDA-Y05 |
— | ||
|
5
|
5
51605-SDA-A04 Shork Absorber, Front |
51605-SDA-A04 |
from US $222.72 |
||
|
5
|
5
51605-SDA-Y04
Absorber unit
|
51605-SDA-Y04 |
— | ||
|
6
|
6
51621-S84-A01
Washer
|
51621-S84-A01 |
— | ||
|
7
|
7
51631-SV7-004 RubberSHOCK ABSORBER MOUNTING(SHOWA) |
51631-SV7-004 |
from US $7.31 |
||
|
8
|
8
51675-SDA-A01 BaseFR. SHOCK ABSORBER MOUNTING |
51675-SDA-A01 |
from US $37.24 |
||
|
9
|
9
51684-SDA-A02 MountFR. DUST COVER LOWER |
51684-SDA-A02 |
from US $13.19 |
||
|
10
|
10
51685-SH3-014 PlateDUST COVER(SHOWA) |
51685-SH3-014 |
US $2.80 |
||
|
10
|
10
51685-SR0-004 PlateDUST COVER (A.S.I. SHOWA) |
51685-SR0-004 |
US $2.94 |
||
|
11
|
11
51686-SDA-A01 RubberFR. SPRING MOUNTING |
51686-SDA-A01 |
from US $19.75 |
||
|
12
|
12
51688-SDA-A01 SleeveFR. DUST COVER |
51688-SDA-A01 |
from US $16.14 |
||
|
13
|
13
51689-SDA-A01 CoverFR. END DUST |
51689-SDA-A01 |
from US $8.08 |
||
|
14
|
14
51689-SH3-004 PlateBUMP STOP (SHOWA) |
51689-SH3-004 |
US $3.42 |
||
|
15
|
15
51722-SS0-004 RubberFR. BUMP STOPPER (POLYURETHAN KASEI) |
51722-SS0-004 |
from US $13.17 |
||
|
16
|
16
51728-SB0-004 CollarSHOCK ABSORBER MOUNTING (SHOWA) |
51728-SB0-004 |
from US $3.18 |
||
|
16
|
16
51728-SR0-003 CollarSHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) |
51728-SR0-003 |
from US $2.80 |
||
|
17
|
17
90300-S84-A00 NutSHOCK ABSORBER FLANGE (10MM) |
90300-S84-A00 |
US $2.44 |
||
|
18
|
18
90364-SG0-004 NutSELF-LOCK, 10MM (SHOWA) (NYLON) |
90364-SG0-004 |
US $2.93 |
||
