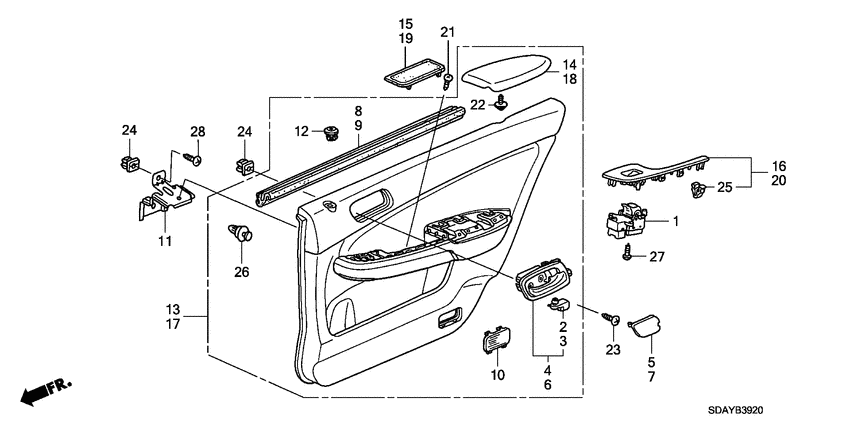

Rear door lining Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.4 VT
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35770-SDA-A01
Switch assy
|
35770-SDA-A01 |
— | ||
|
2
|
2
72134-S2X-003
Snap
|
72134-S2X-003 |
— | ||
|
3
|
3
72174-S2X-003
Snap
|
72174-S2X-003 |
— | ||
|
4
|
4
72620-SDA-A02ZA Handle assyR. RR. DOOR INSIDE *NH167L* |
72620-SDA-A02ZA |
US $38.27 |
||
|
4
|
4
72620-SDA-A02ZB Handle assyR. RR. DOOR INSIDE *YR248L* |
72620-SDA-A02ZB |
US $38.27 |
||
|
5
|
5
72621-SDA-A01ZB CapR. RR. DOOR INSIDE HANDLE *YR248L* |
72621-SDA-A01ZB |
US $4.13 |
||
|
5
|
5
72621-SDA-A01ZA CapR. RR. DOOR INSIDE HANDLE *NH167L* |
72621-SDA-A01ZA |
US $4.13 |
||
|
6
|
6
72660-SDA-A02ZB Handle assyL. RR. DOOR INSIDE *YR248L* |
72660-SDA-A02ZB |
US $38.27 |
||
|
6
|
6
72660-SDA-A02ZA Handle assyL. RR. DOOR INSIDE *NH167L* |
72660-SDA-A02ZA |
US $38.27 |
||
|
7
|
7
72661-SDA-A01ZB CapL. RR. DOOR INSIDE HANDLE *YR248L* |
72661-SDA-A01ZB |
US $4.13 |
||
|
7
|
7
72661-SDA-A01ZA CapL. RR. DOOR INSIDE HANDLE *NH167L* |
72661-SDA-A01ZA |
US $4.13 |
||
|
8
|
8
72835-SDC-A01
Weatherstrip
|
72835-SDC-A01 |
— | ||
|
9
|
9
72875-SDC-A01
Weatherstrip
|
72875-SDC-A01 |
— | ||
|
10
|
10
83504-SDA-A01 ReflectorDOOR |
83504-SDA-A01 |
from US $4.48 |
||
|
11
|
11
83508-SDA-000ZZ BracketPULL POCKET |
83508-SDA-000ZZ |
US $3.78 |
||
|
12
|
12
83508-SDA-003ZB CoverLOCK KNOB *YR248L* |
83508-SDA-003ZB |
US $3.92 |
||
|
12
|
12
83508-SDA-003ZA
Cover
|
83508-SDA-003ZA |
— | ||
|
13
|
13
83700-SDC-A12ZF Lining assy.R. RR. DOOR *TYPEF* (IVORY/TAUPE) |
83700-SDC-A12ZF |
US $316.16 |
||
|
13
|
13
83700-SDC-A12ZE Lining assy.R. RR. DOOR *TYPEB* (GRAY/BLACK) |
83700-SDC-A12ZE |
US $316.16 |
||
|
14
|
14
83702-SDA-A41ZC Armrest assyR. RR. DOOR *YR239L* |
83702-SDA-A41ZC |
US $52.48 |
||
|
14
|
14
83702-SDA-A41ZB Armrest assyR. RR. DOOR *NH361L* |
83702-SDA-A41ZB |
US $52.48 |
||
|
15
|
15
83705-SDA-A01ZA CapR. RR. PULL POCKET *NH167L* |
83705-SDA-A01ZA |
US $3.36 |
||
|
16
|
16
83741-SDA-A11ZA
Panel assy.
|
83741-SDA-A11ZA |
— | ||
|
17
|
17
83750-SDC-A12ZF Lining assy.L. RR. DOOR *TYPEF* (IVORY/TAUPE) |
83750-SDC-A12ZF |
US $316.16 |
||
|
17
|
17
83750-SDC-A12ZE Lining assy.L. RR. DOOR *TYPEB* (GRAY/BLACK) |
83750-SDC-A12ZE |
US $348.16 |
||
|
18
|
18
83752-SDA-A41ZC Armrest assyL. RR. DOOR *YR239L* |
83752-SDA-A41ZC |
US $52.48 |
||
|
18
|
18
83752-SDA-A41ZB Armrest assyL. RR. DOOR *NH361L* |
83752-SDA-A41ZB |
US $52.48 |
||
|
19
|
19
83755-SDA-A01ZA CapL. RR. PULL POCKET *NH167L* |
83755-SDA-A01ZA |
US $3.36 |
||
|
20
|
20
83791-SDA-A11ZA
Panel assy.
|
83791-SDA-A11ZA |
— | ||
|
21
|
21
90101-S03-000 ScrewTAPPING, 4X16 |
90101-S03-000 |
US $1.05 |
||
|
22
|
22
90132-SS0-000 ScrewTAPPING, 4X10 (PO) |
90132-SS0-000 |
from US $1.12 |
||
|
23
|
23
90141-SDA-000 ScrewTAPPING, 5X12 |
90141-SDA-000 |
US $1.05 |
||
|
24
|
24
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
25
|
25
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
26
|
26
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
27
|
27
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
28
|
28
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
