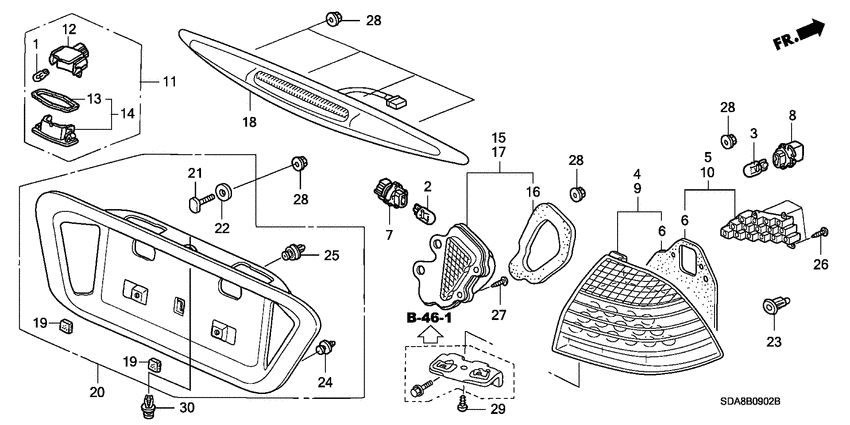

Taillight (3) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34901-SB0-671 Bulb12V 5W 3CP) (STANLEY |
34901-SB0-671 |
from US $0.99 |
||
|
2
|
2
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.38 |
||
|
3
|
3
33303-S2R-003 BulbWEDGE (12V 21W) (STANLEY) (AMBER) |
33303-S2R-003 |
from US $2.96 |
||
|
4
|
4
33501-SDA-Q11 Lamp unitR. |
33501-SDA-Q11 |
from US $142.45 |
||
|
5
|
5
33502-SDA-Q11 Led unitR. |
33502-SDA-Q11 |
US $337.92 |
||
|
6
|
6
33507-SDA-A31 GasketBASE |
33507-SDA-A31 |
US $15.36 |
||
|
7
|
7
33513-S50-003 SocketT20W S2 |
33513-S50-003 |
US $8.93 |
||
|
8
|
8
33514-S2R-003
Socket
|
33514-S2R-003 |
— | ||
|
9
|
9
33551-SDA-Q11 Lamp unitL. |
33551-SDA-Q11 |
US $299.52 |
||
|
10
|
10
33552-SDA-Q11 Led unitL. |
33552-SDA-Q11 |
US $337.92 |
||
|
11
|
11
34100-SZ3-A01 Light assyLICENSE |
34100-SZ3-A01 |
US $17.66 |
||
|
12
|
12
34102-S0A-003 Housing comp |
34102-S0A-003 |
US $10.22 |
||
|
13
|
13
34103-S0A-003 Gasket |
34103-S0A-003 |
US $2.03 |
||
|
14
|
14
34104-S0A-013 Lens comp |
34104-S0A-013 |
US $8.40 |
||
|
15
|
15
34151-SDA-K21 Lamp unitR. |
34151-SDA-K21 |
US $153.60 |
||
|
16
|
16
34153-SDA-A21 GasketBASE |
34153-SDA-A21 |
US $9.94 |
||
|
17
|
17
34156-SDA-K21 Lamp unitL. |
34156-SDA-K21 |
US $153.60 |
||
|
18
|
18
34270-SDA-A11 Light assyHIGH MOUNT STOP |
34270-SDA-A11 |
US $300.80 |
||
|
19
|
19
74827-S84-M00 ProtectorLICENSE PLATE |
74827-S84-M00 |
US $1.47 |
||
|
20
|
20
74890-SDC-K01ZB Garnish assyRR. LICENSE *B92P* |
74890-SDC-K01ZB |
US $203.52 |
||
|
20
|
20
74890-SDC-K01ZD Garnish assyRR. LICENSE *NH658P* |
74890-SDC-K01ZD |
US $224 |
||
|
20
|
20
74890-SDC-K01ZF Garnish assyRR. LICENSE *YR538M* |
74890-SDC-K01ZF |
US $203.52 |
||
|
20
|
20
74890-SDC-K01ZA Garnish assyRR. LICENSE *B536P* |
74890-SDC-K01ZA |
US $203.52 |
||
|
20
|
20
74890-SDC-K01ZC Garnish assyRR. LICENSE *NH624P* |
74890-SDC-K01ZC |
US $203.52 |
||
|
20
|
20
74890-SDC-K01ZE Garnish assyRR. LICENSE *NH700M* |
74890-SDC-K01ZE |
US $224 |
||
|
21
|
21
74895-S5A-000 BoltSPECIAL, 5MM |
74895-S5A-000 |
US $2.31 |
||
|
22
|
22
75523-SS0-000 PackingSEAL |
75523-SS0-000 |
US $0.98 |
||
|
23
|
23
90650-SDN-A01 GrommetRR. COMBINATION LIGHT |
90650-SDN-A01 |
US $1.33 |
||
|
24
|
24
91512-S50-003 ClipLICENSE GARNISH |
91512-S50-003 |
US $2.12 |
||
|
25
|
25
91560-S0X-A01 ClipDOOR LINING (NATURAL) |
91560-S0X-A01 |
US $1.61 |
||
|
26
|
26
93911-24420 ScrewTAPPING, 4X16 (PO) |
93911-24420 |
US $0.37 |
||
|
27
|
27
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
28
|
28
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
29
|
29
93913-15210 ScrewTAPPING, 5X12 (PO) |
93913-15210 |
US $0.37 |
||
|
30
|
30
91561-S84-A21ZA ClipRR. PANEL *NH120L* |
91561-S84-A21ZA |
US $1.47 |
