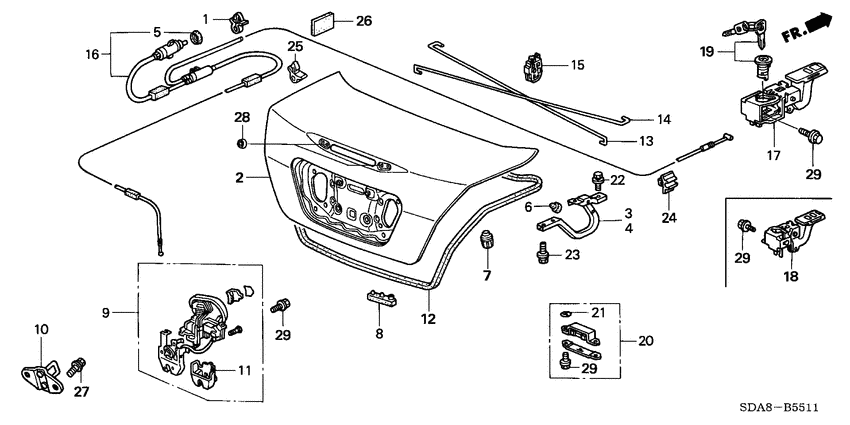

Trunk lid ('06) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17706-SC3-003 ClipFUEL PIPE |
17706-SC3-003 |
from US $2.59 |
||
|
2
|
2
68500-SDC-K20ZZ Lid compTRUNK |
68500-SDC-K20ZZ |
US $615.68 |
||
|
3
|
3
68610-SW5-A01ZZ Hinge compR. TRUNK |
68610-SW5-A01ZZ |
US $42.75 |
||
|
4
|
4
68660-SW5-A01ZZ Hinge compL. TRUNK |
68660-SW5-A01ZZ |
US $42.75 |
||
|
5
|
5
73219-693-951 SealFUEL LID OPENER (GREEN) |
73219-693-951 |
US $1.68 |
||
|
6
|
6
74822-SW5-003 CushionTRUNK HINGE |
74822-SW5-003 |
US $1.33 |
||
|
7
|
7
74829-SDA-A01
Stopper
|
74829-SDA-A01 |
— | ||
|
8
|
8
74829-S5A-000
Stopper
|
74829-S5A-000 |
— | ||
|
9
|
9
74851-SDA-K01
Lock
00000000 - 6C200493 |
74851-SDA-K01 |
— | ||
|
9
|
9
74851-SDA-K02
Lock
6C200494 - |
74851-SDA-K02 |
— | ||
|
10
|
10
74862-S84-A01 Striker assyTRUNK |
74862-S84-A01 |
US $9.52 |
||
|
11
|
11
74864-S30-003 Cover |
74864-S30-003 |
US $6.02 |
||
|
12
|
12
74865-SDC-A20
Weatherstrip
|
74865-SDC-A20 |
— | ||
|
13
|
13
74871-SDC-A30
Spring
|
74871-SDC-A30 |
— | ||
|
14
|
14
74872-SDC-A30
Spring
|
74872-SDC-A30 |
— | ||
|
15
|
15
74873-SM4-003 ClipTRUNK OPENER SPRING |
74873-SM4-003 |
from US $2.95 |
||
|
16
|
16
74880-SDA-A11 CableTRUNK & FUEL LID OPENER |
74880-SDA-A11 |
US $65.28 |
||
|
17
|
17
74882-S5A-A02ZD Opener assyTRUNK & FUEL LID *YR239L* 6C200324 - |
74882-S5A-A02ZD |
US $29.18 |
||
|
17
|
17
74882-S5A-A01ZA
Opener assy
00000000 - 6C200323 |
74882-S5A-A01ZA |
— | ||
|
17
|
17
74882-S5A-A01ZD
Opener assy
00000000 - 6C200323 |
74882-S5A-A01ZD |
— | ||
|
17
|
17
74882-S5A-A02ZA Opener assyTRUNK & FUEL LID *NH167L* 6C200324 - |
74882-S5A-A02ZA |
US $29.18 |
||
|
19
|
19
74886-SDA-A01 CylinderTRUNK REMOTE CONTROL |
74886-SDA-A01 |
US $32.31 |
||
|
20
|
20
74899-S84-A01 DamperTRUNK DYNAMIC |
74899-S84-A01 |
US $27.26 |
||
|
21
|
21
75353-671-000 LockSCREW |
75353-671-000 |
US $1.94 |
||
|
22
|
22
90108-S0A-003 BoltFLANGE, 6X15 |
90108-S0A-003 |
from US $1.41 |
||
|
23
|
23
90109-SM4-000 BoltSPECIAL, 6X35 |
90109-SM4-000 |
US $1.40 |
||
|
24
|
24
90684-SD4-003 ClipFUEL LID OPENER |
90684-SD4-003 |
US $1.82 |
||
|
26
|
26
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $3.26 |
||
|
27
|
27
93404-060-160-7 Bolt-washer6X16 |
93404-060-160-7 |
from US $0.52 |
||
|
28
|
28
95551-11000 PlugBLIND, 11MM |
95551-11000 |
from US $1.04 |
||
|
29
|
29
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
