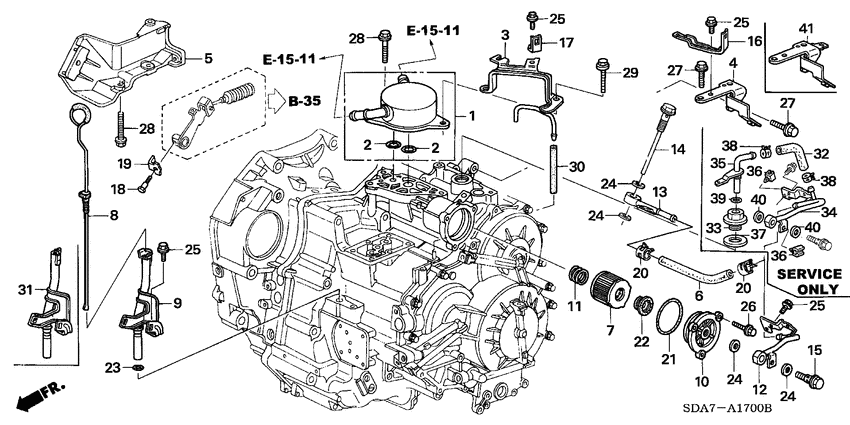

Oil level gauge/ atf pipe (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 VT
- area code
- KY
- sunroof
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
6
|
6
25213-RAY-003 HoseATF, 177MM (BRIDGESTONE) |
25213-RAY-003 |
US $10.50 |
||
|
8
|
8
25610-RAY-013 Gauge comp.ATF |
25610-RAY-013 |
US $12.93 |
||
|
14
|
14
25950-RAY-000 Bolt compJOINT 4000384 - |
25950-RAY-000 |
US $7.56 |
||
|
14
|
14
25950-PL4-000 Bolt compJOINT 00000000 - 4000383 |
25950-PL4-000 |
US $10.08 |
||
|
15
|
15
25951-639-000 BoltJOINT 00000000 - 4000383 |
25951-639-000 |
from US $11.23 |
||
|
15
|
15
25951-RGR-000 BoltJOINT 4000384 - |
25951-RGR-000 |
US $5.32 |
||
|
24
|
24
94109-12000 WasherDRAIN PLUG, 12MM 00000000 - 4000383 |
94109-12000 |
from US $0.34 |
||
|
24
|
24
90471-RGR-000 WasherDRAIN PLUG, 12MM 4000384 - |
90471-RGR-000 |
US $1.57 |
||
|
31
|
31
25613-RAY-010 Pipe compATF GAUGE |
25613-RAY-010 |
US $13.57 |
||
|
41
|
41
21236-RAY-A00 Bracket comp.HARNESS |
21236-RAY-A00 |
US $9.24 |
