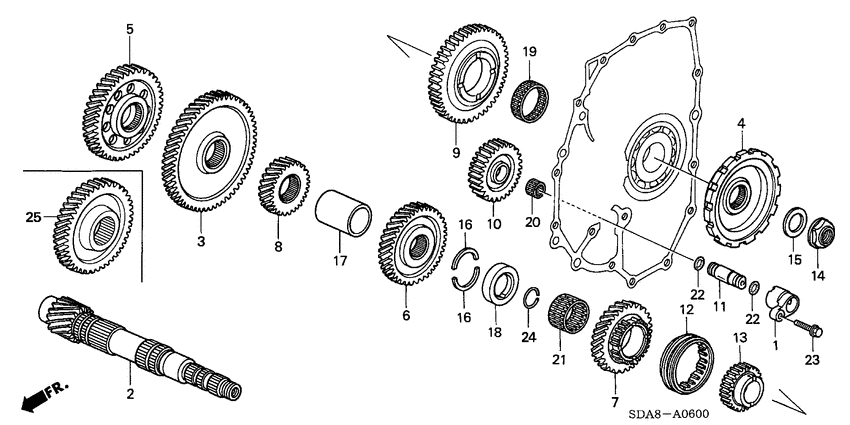

Countershaft (L4) Diagram Honda ACCORD
- Year
- 2005
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21215-PRP-000 HolderIDLE SHAFT |
21215-PRP-000 |
US $7.99 |
||
|
2
|
2
23221-RCL-J00 Countershaft |
23221-RCL-J00 |
US $339.20 |
||
|
3
|
3
23421-RFK-000 GearCOUNTERSHAFT LOW |
23421-RFK-000 |
US $76.80 |
||
|
4
|
4
23427-PRP-000 GearPARKING 00000000 - 3015226 |
23427-PRP-000 |
US $106.24 |
||
|
4
|
4
23427-PRP-010 GearPARKING 3015227 - |
23427-PRP-010 |
US $105.60 |
||
|
5
|
5
23441-RFK-000 GearCOUNTERSHAFT SECOND |
23441-RFK-000 |
US $110.72 |
||
|
6
|
6
23451-RCL-000 GearCOUNTERSHAFT THIRD |
23451-RCL-000 |
US $67.84 |
||
|
7
|
7
23471-RCL-010 GearCOUNTERSHAFT FOURTH |
23471-RCL-010 |
US $80 |
||
|
8
|
8
23491-RFK-900 GearCOUNTERSHAFT FIFTH |
23491-RFK-900 |
US $72.96 |
||
|
9
|
9
23531-PRP-010 GearCOUNTERSHAFT REVERSE |
23531-PRP-010 |
US $61.95 |
||
|
10
|
10
23541-PRP-000 GearREVERSE IDLE |
23541-PRP-000 |
US $35.07 |
||
|
11
|
11
23542-P6H-000
Shaft
|
23542-P6H-000 |
— | ||
|
12
|
12
23565-PRP-010 SelectorREVERSE GEAR |
23565-PRP-010 |
US $35.84 |
||
|
13
|
13
23566-PRP-000 HubSELECTOR |
23566-PRP-000 |
US $34.56 |
||
|
14
|
14
90201-PRP-000 NutFLANGE, 24MM (LEFT HAND THREAD) |
90201-PRP-000 |
US $3.36 |
||
|
15
|
15
90402-P0Z-000
Washer
|
90402-P0Z-000 |
— | ||
|
16
|
16
90431-P6H-000 Cotter31MM |
90431-P6H-000 |
US $1.89 |
||
|
17
|
17
90441-RFK-010 Collar37X41X54.3 |
90441-RFK-010 |
US $9.24 |
||
|
18
|
18
90445-PPV-000 Collar35X47X7.8 |
90445-PPV-000 |
US $10.36 |
||
|
19
|
19
91024-PRP-004 BearingNEEDLE, 40X46X14.5 (KOYO) |
91024-PRP-004 |
US $8.40 |
||
|
20
|
20
91025-P0X-003 BearingNEEDLE, 15X20X16 (NTN) |
91025-P0X-003 |
US $4.34 |
||
|
21
|
21
91028-P0Z-013 BearingNEEDLE, 35X41X25.8 (NTN) |
91028-P0Z-013 |
US $9.10 |
||
|
22
|
22
91306-P0X-003 O-ring8.1X4 (NOK) |
91306-P0X-003 |
US $3.22 |
||
|
23
|
23
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
24
|
24
90614-P0Z-000 RingSNAP, 35MM |
90614-P0Z-000 |
US $1.19 |
