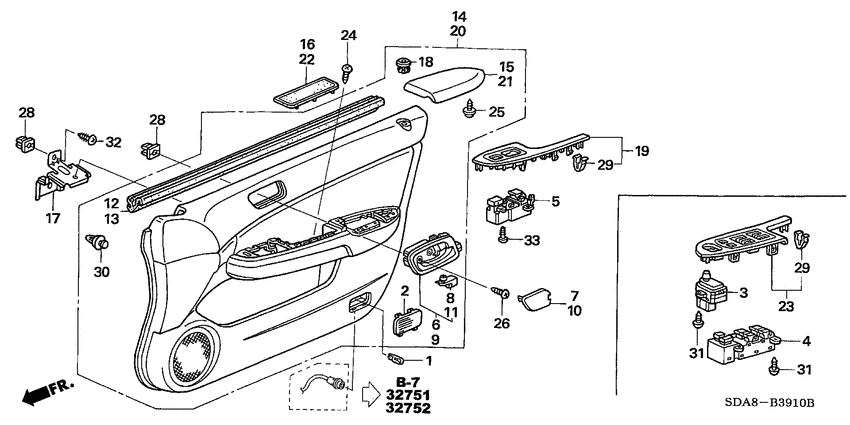

Front door lining (LH) Diagram Honda ACCORD
- Year
- 2005
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KD
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-S70-003 Bulb12V 3.8W 2CP |
33301-S70-003 |
US $2.04 |
||
|
2
|
2
34261-SDA-A01 Lens |
34261-SDA-A01 |
US $6.02 |
||
|
3
|
3
35190-SDA-F51
Switch assy
|
35190-SDA-F51 |
— | ||
|
4
|
4
35750-SDA-602
Switch assy
|
35750-SDA-602 |
— | ||
|
5
|
5
35760-SDA-A21
Switch assy
|
35760-SDA-A21 |
— | ||
|
6
|
6
72120-SDA-A02ZB Handle assyR. FR. DOOR INSIDE *YR248L* |
72120-SDA-A02ZB |
US $38.27 |
||
|
6
|
6
72120-SDA-A02ZA Handle assyR. FR. DOOR INSIDE *NH167L* |
72120-SDA-A02ZA |
US $38.27 |
||
|
7
|
7
72121-SDA-A01ZB CapR. FR. DOOR INSIDE HANDLE *YR248L* |
72121-SDA-A01ZB |
US $4.13 |
||
|
7
|
7
72121-SDA-A01ZA CapR. FR. DOOR INSIDE HANDLE *NH167L* |
72121-SDA-A01ZA |
US $4.13 |
||
|
8
|
8
72134-S2X-003
Snap
|
72134-S2X-003 |
— | ||
|
9
|
9
72160-SDA-A02ZB Handle assyL. FR. DOOR INSIDE *YR248L* |
72160-SDA-A02ZB |
US $38.27 |
||
|
9
|
9
72160-SDA-A02ZA Handle assyL. FR. DOOR INSIDE *NH167L* |
72160-SDA-A02ZA |
US $38.27 |
||
|
10
|
10
72161-SDA-A01ZA CapL. FR. DOOR INSIDE HANDLE *NH167L* |
72161-SDA-A01ZA |
US $4.13 |
||
|
10
|
10
72161-SDA-A01ZB CapL. FR. DOOR INSIDE HANDLE *YR248L* |
72161-SDA-A01ZB |
US $4.13 |
||
|
11
|
11
72174-S2X-003
Snap
|
72174-S2X-003 |
— | ||
|
12
|
12
72335-SDC-A01
Weatherstrip
|
72335-SDC-A01 |
— | ||
|
13
|
13
72375-SDC-A01
Weatherstrip
|
72375-SDC-A01 |
— | ||
|
14
|
14
83500-SDC-A61ZA Lining assy.R. FR. DOOR (LEATHER) *NH167L* |
83500-SDC-A61ZA |
US $522.24 |
||
|
14
|
14
83500-SDC-A61ZC Lining assy.R. FR. DOOR (LEATHER) *YR239L* |
83500-SDC-A61ZC |
US $522.24 |
||
|
15
|
15
83502-SDA-A31ZC
Armrest assy
|
83502-SDA-A31ZC |
— | ||
|
15
|
15
83502-SDA-A31ZA
Armrest assy
|
83502-SDA-A31ZA |
— | ||
|
16
|
16
83505-SDA-A11ZA CapFR. PULL POCKET (SUB) *NH167L* |
83505-SDA-A11ZA |
US $3.29 |
||
|
17
|
17
83508-SDA-000ZZ BracketPULL POCKET |
83508-SDA-000ZZ |
US $3.78 |
||
|
18
|
18
83508-SDA-003ZA
Cover
|
83508-SDA-003ZA |
— | ||
|
18
|
18
83508-SDA-003ZB CoverLOCK KNOB *YR248L* |
83508-SDA-003ZB |
US $3.92 |
||
|
19
|
19
83541-SDA-A31ZA
Panel assy.
|
83541-SDA-A31ZA |
— | ||
|
19
|
19
83541-SDA-A31ZB Panel assy.FR. POWER SWITCH (SUB) *YR252L* |
83541-SDA-A31ZB |
US $74.24 |
||
|
20
|
20
83550-SDC-A61ZA Lining assy.L. FR. DOOR (LEATHER) *NH167L* |
83550-SDC-A61ZA |
US $522.24 |
||
|
20
|
20
83550-SDC-A61ZC Lining assy.L. FR. DOOR (LEATHER) *YR239L* |
83550-SDC-A61ZC |
US $522.24 |
||
|
21
|
21
83552-SDA-A31ZC
Armrest assy
|
83552-SDA-A31ZC |
— | ||
|
21
|
21
83552-SDA-A31ZA
Armrest assy
|
83552-SDA-A31ZA |
— | ||
|
22
|
22
83555-SDA-A11ZA CapFR. PULL POCKET (MASTER) *NH167L* |
83555-SDA-A11ZA |
US $2.94 |
||
|
23
|
23
83591-SDA-A31ZB Panel assy.FR. POWER SWITCH (MASTER) *YR252L* |
83591-SDA-A31ZB |
US $74.24 |
||
|
23
|
23
83591-SDA-A31ZA
Panel assy.
|
83591-SDA-A31ZA |
— | ||
|
24
|
24
90101-S03-000 ScrewTAPPING, 4X16 |
90101-S03-000 |
US $1.05 |
||
|
25
|
25
90132-SS0-000 ScrewTAPPING, 4X10 (PO) |
90132-SS0-000 |
from US $1.12 |
||
|
26
|
26
90141-SDA-000 ScrewTAPPING, 5X12 |
90141-SDA-000 |
US $1.05 |
||
|
28
|
28
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
29
|
29
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
30
|
30
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
31
|
31
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
32
|
32
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
33
|
33
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
