	Description	OEM Part #	Price
1	1 01473-SV4-000 Caliper set	01473-SV4-000	—
	replacement
1	1 01473-SV4-010 SET RR CALIPER	01473-SV4-010	from US $24.71
2	2 06430-S0A-J00 Pad set RR. (WITHOUT SHIM)	06430-S0A-J00	US $80.64
3	3 06435-S84-J00 Shim set RR.	06435-S84-J00	US $4.91
4	4 42200-SDA-A51 Bearing assy RR. HUB UNIT	42200-SDA-A51	US $204.80
5	5 42326-ST7-Z00 Cap	42326-ST7-Z00	—
	replacement
5	5 42326-SLJ-000 Cap, Hub unit	42326-SLJ-000	from US $4.65
6	6 42510-SDA-A00 Disk RR. BRAKE	42510-SDA-A00	US $149.60
7	7 43018-SDC-A00 Caliper sub assy. R. RR.	43018-SDC-A00	US $302.08
8	8 43019-SDC-A00 Caliper sub assy. L. RR.	43019-SDC-A00	US $302.08
9	9 43022-SV4-G22 Pad set	43022-SV4-G22	—
	replacement
9	9 43022-SV4-G23 Set PAD RR (9CLP-	43022-SV4-G23	US $112.20
10	10 43215-SM4-951 Piston assy.	43215-SM4-951	US $26.11
11	11 43223-SD2-932 BEARING A	43223-SD2-932	from US $5.18
12	12 43224-SD2-931 Spring b ADJUSTING	43224-SD2-931	US $9.45
13	13 43227-SG0-013 Spring PAD	43227-SG0-013	US $6.03
14	14 43228-SD2-933 Shaft a	43228-SD2-933	from US $17.91
15	15 43229-SD2-931 Rod	43229-SD2-931	from US $2.52
16	16 43233-S5A-J01 Piston comp SLEEVE	43233-S5A-J01	from US $13.44
	replacement
16	16 43233-TR0-A01 Piston, sleeve	43233-TR0-A01	from US $11.06
17	17 43235-S84-A51 Pin a	43235-S84-A51	from US $7.25
18	18 43236-S04-003 Spacer	43236-S04-003	US $9.59
19	19 43238-SF1-003 Ring RETAINING	43238-SF1-003	from US $3.22
20	20 43241-SF1-003 Guide SPRING	43241-SF1-003	from US $3.85
21	21 43243-SD2-931 Nut PARKING	43243-SD2-931	from US $3.34
22	22 43244-SG0-003 Retainer	43244-SG0-003	from US $3.71
23	23 43246-S84-A51 Spring	43246-S84-A51	—
24	24 43247-S84-A52 Arm R.	43247-S84-A52	US $13.86
25	25 43248-SD2-933 Shaft b	43248-SD2-933	US $36.74
26	26 43249-S04-003 Bolt ADJUSTER	43249-S04-003	from US $6.02
27	27 43253-SDA-A51 Guard	43253-SDA-A51	—
28	28 43254-SDA-A51 Guard L. RR. SPLASH	43254-SDA-A51	US $37.85
29	29 43262-S84-A51 Pin b	43262-S84-A51	from US $7.25
30	30 43266-S84-A51 Spring	43266-S84-A51	—
31	31 43267-S84-A52 Arm L.	43267-S84-A52	US $13.86
32	32 43352-SM4-951 Screw BLEEDER	43352-SM4-951	from US $3.26
33	33 43353-SD5-003 Cap BLEEDER SCREW	43353-SD5-003	from US $2.12
34	34 45240-SC2-003 Bolt FLANGE, 8X22	45240-SC2-003	from US $3.03
35	35 90103-SV4-003 Bolt FLANGE, 10X30	90103-SV4-003	US $2.94
36	36 90113-SA0-025 Bolt WHEEL (NAGOYA RASHI)	90113-SA0-025	from US $2.93
	replacement
36	36 90113-SM1-005 Bolt WHEEL (ROCKNEL FASTENER)	90113-SM1-005	from US $3.70
36	36 90113-S5H-005 Bolt WHEEL (THAI MEIRA)	90113-S5H-005	from US $3.70
36	36 90113-SA0-006 Bolt WHEEL (SAGA)	90113-SA0-006	from US $2.59
	replacement
36	36 90113-SM1-005 Bolt WHEEL (ROCKNEL FASTENER)	90113-SM1-005	from US $3.70
36	36 90113-SM1-005 Bolt WHEEL (ROCKNEL FASTENER)	90113-SM1-005	from US $3.70
37	37 90305-S30-003 Nut SPINDLE	90305-S30-003	US $5.62
38	38 93402-100-250-8 Bolt-washer 10X25	93402-100-250-8	from US $0.81
39	39 93600-060-140-H Screw FLAT, 6X14	93600-060-140-H	from US $0.44
40	40 94111-10800 Washer SPRING, 10MM	94111-10800	from US $0.44
41	41 95701-060-120-8 Bolt FLANGE, 6X12	95701-060-120-8	from US $0.52

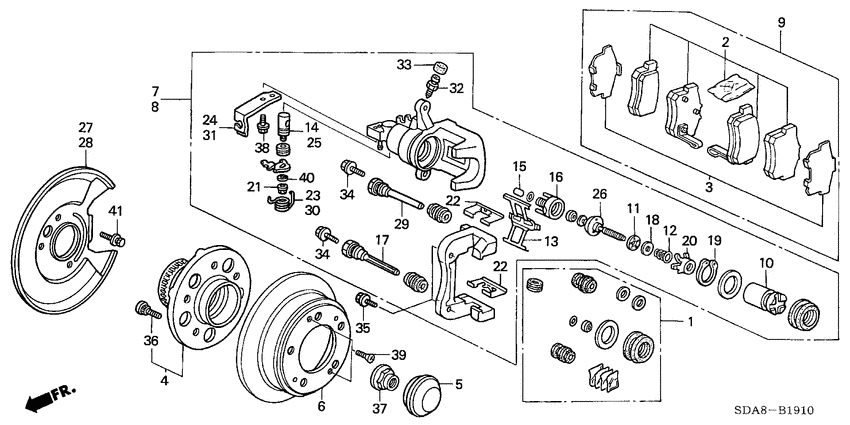

Rear brake Diagram Honda ACCORD General 7070673-549608

Rear brake Diagram Honda ACCORD General 7070673-549608
