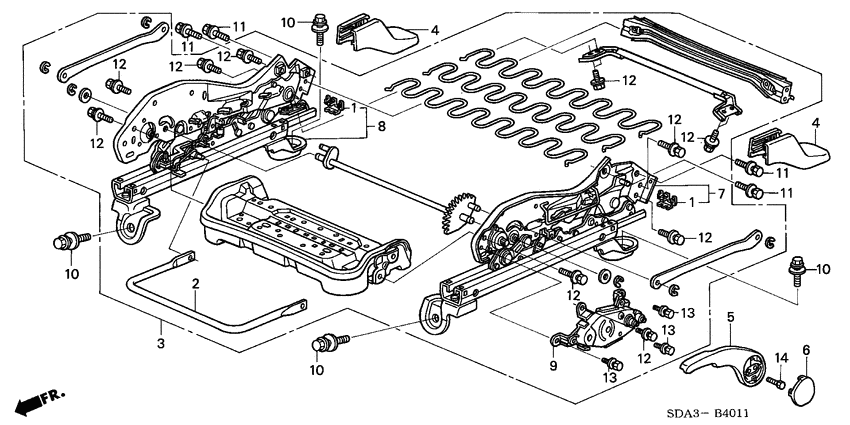

Front seat components (L.; MANUAL HEIGHT) Diagram Honda ACCORD
- Year
- 2005
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.4 VT
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81272-S5A-J01 CapSLIDE ADJUSTER UPPER END |
81272-S5A-J01 |
US $3.08 |
||
|
2
|
2
81273-SDA-A01 Lever |
81273-SDA-A01 |
US $17.79 |
||
|
3
|
3
81536-SDA-A21
Frame comp
|
81536-SDA-A21 |
— | ||
|
4
|
4
81595-SDA-A01ZC CoverRR. FOOT DRIVER (MANUAL) *YR239L* |
81595-SDA-A01ZC |
US $5.46 |
||
|
4
|
4
81595-SDA-A01ZB CoverRR. FOOT DRIVER (MANUAL) *NH361L* |
81595-SDA-A01ZB |
US $5.46 |
||
|
5
|
5
81621-SDA-A21ZC
Handle
|
81621-SDA-A21ZC |
— | ||
|
5
|
5
81621-SDA-A21ZB
Handle
|
81621-SDA-A21ZB |
— | ||
|
6
|
6
81622-SDA-A21ZC
Cap
|
81622-SDA-A21ZC |
— | ||
|
6
|
6
81622-SDA-A21ZB
Cap
|
81622-SDA-A21ZB |
— | ||
|
7
|
7
81660-SDA-A21
Adjuster
|
81660-SDA-A21 |
— | ||
|
8
|
8
81670-SDA-A21
Adjuster
|
81670-SDA-A21 |
— | ||
|
9
|
9
81725-SDA-A21
Ratchet comp.
|
81725-SDA-A21 |
— | ||
|
10
|
10
90135-S7A-J50
Bolt-washer
|
90135-S7A-J50 |
— | ||
|
11
|
11
90143-SR3-000 Bolt-washer10X22 |
90143-SR3-000 |
US $2.38 |
||
|
12
|
12
90143-ST5-900 Bolt-washer8X22 |
90143-ST5-900 |
US $1.61 |
||
|
13
|
13
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
14
|
14
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
14
|
14
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
