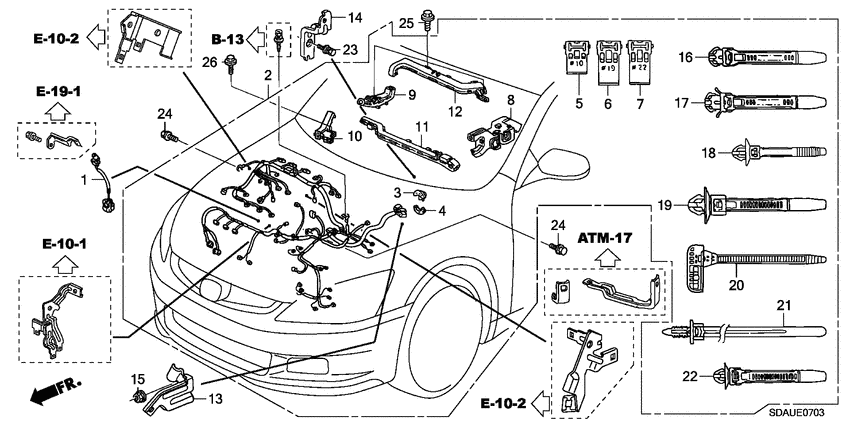

Engine wire harness (V6; RH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- SIR
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30531-RCA-A01
Sub cord
|
30531-RCA-A01 |
— | ||
|
2
|
2
32110-RCB-U53 HarnessENGINE WIRE |
32110-RCB-U53 |
US $814.08 |
||
|
3
|
3
32113-RFE-003 Collar aHARNESS GROMMET |
32113-RFE-003 |
US $3.22 |
||
|
4
|
4
32114-RFE-003 Collar bHARNESS GROMMET |
32114-RFE-003 |
US $2.87 |
||
|
5
|
5
32115-P64-003 HolderCORRUGATED (DARK BLUE) (10MM) |
32115-P64-003 |
US $2.38 |
||
|
6
|
6
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
7
|
7
32119-P2E-A01 HolderCORRUGATED (DARK BLUE) (22MM) |
32119-P2E-A01 |
US $2.31 |
||
|
8
|
8
32129-RCA-A00 Holder cHARNESS |
32129-RCA-A00 |
US $14.59 |
||
|
9
|
9
32130-RCA-A00 Holder comp. dHARNESS |
32130-RCA-A00 |
US $12.18 |
||
|
10
|
10
32131-RCA-A01 Holder comp. eHARNESS |
32131-RCA-A01 |
US $7.98 |
||
|
11
|
11
32132-RCA-A00 Holder fWIRE HARNESS |
32132-RCA-A00 |
US $11.62 |
||
|
12
|
12
32133-RCA-A00 Holder comp. gHARNESS |
32133-RCA-A00 |
US $15.23 |
||
|
13
|
13
32745-RCB-U00
Stay e
|
32745-RCB-U00 |
— | ||
|
14
|
14
32746-RAD-U00
Stay c
|
32746-RAD-U00 |
— | ||
|
15
|
15
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
16
|
16
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
17
|
17
91507-RTA-003 Clip bHARNESS BAND (DARK GREEN) (129.4MM) |
91507-RTA-003 |
from US $1.01 |
||
|
18
|
18
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $3.40 |
||
|
19
|
19
91558-P8C-A01 ClipHARNESS BAND (VIOLET) (150MM) |
91558-P8C-A01 |
US $1.89 |
||
|
20
|
20
91559-RCA-A01 ClipHARNESS BAND(DARK GRAY) (150MM) |
91559-RCA-A01 |
US $2.59 |
||
|
21
|
21
91559-SP0-003 ClipNUT, 6MM |
91559-SP0-003 |
US $1.89 |
||
|
22
|
22
91577-SS0-003 ClipWIRE HARNESS (BLUE) (122.5MM) |
91577-SS0-003 |
US $2.96 |
||
|
23
|
23
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
26
|
26
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
