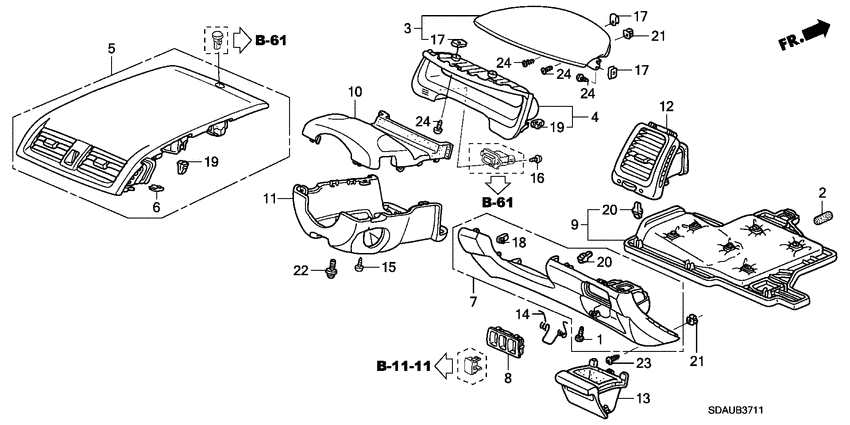

Instrument panel garnish (DRIVER SIDE; RH) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- SIR
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
2
|
2
66844-SA7-000 CapINSTRUMENT PANEL STAY |
66844-SA7-000 |
US $4.07 |
||
|
3
|
3
77201-SDC-U01ZA
Visor assy
|
77201-SDC-U01ZA |
— | ||
|
3
|
3
77201-SDC-U01ZB
Visor assy
|
77201-SDC-U01ZB |
— | ||
|
4
|
4
77202-SDC-U01ZA
Visor assy
|
77202-SDC-U01ZA |
— | ||
|
5
|
5
77270-SDA-A91ZA Panel assy.UPPER *NH482L* |
77270-SDA-A91ZA |
US $124.80 |
||
|
6
|
6
77279-SDA-A01 ClipSNAP FITTING |
77279-SDA-A01 |
US $3.36 |
||
|
7
|
7
77301-SDC-U02ZB Cover comp.INSTRUMENT DRIVER LOWER *YR239L* |
77301-SDC-U02ZB |
US $66.56 |
||
|
7
|
7
77301-SDC-U02ZA Cover comp.INSTRUMENT DRIVER LOWER *NH361L* |
77301-SDC-U02ZA |
US $66.56 |
||
|
8
|
8
77302-SDA-A01ZA GarnishSWITCH *NH167L* |
77302-SDA-A01ZA |
US $5.74 |
||
|
9
|
9
77320-SDD-U00 Cover assy.DRIVER UNDER |
77320-SDD-U00 |
US $42.37 |
||
|
10
|
10
77350-SDA-A01ZB Cover assy.COLUMN UPPER *YR248L* |
77350-SDA-A01ZB |
US $14.08 |
||
|
10
|
10
77350-SDA-A01ZA Cover assy.COLUMN UPPER *NH167L* |
77350-SDA-A01ZA |
US $15.49 |
||
|
11
|
11
77360-SDC-003ZB CoverCOLUMN LOWER *YR248L* |
77360-SDC-003ZB |
US $20.99 |
||
|
11
|
11
77360-SDC-003ZA CoverCOLUMN LOWER *NH167L* |
77360-SDC-003ZA |
US $23.04 |
||
|
12
|
12
77620-SDA-A21ZB Outlet assyR. SIDE *YR248L* |
77620-SDA-A21ZB |
US $61.31 |
||
|
12
|
12
77620-SDA-A21ZA Outlet assyR. SIDE *NH167L* |
77620-SDA-A21ZA |
US $67.20 |
||
|
13
|
13
77751-SDC-U01ZB Pocket comp.COIN *YR239L* |
77751-SDC-U01ZB |
US $30.85 |
||
|
13
|
13
77751-SDC-U01ZA Pocket comp.COIN *NH361L* |
77751-SDC-U01ZA |
US $28.03 |
||
|
14
|
14
77752-SDC-U01
Spring
|
77752-SDC-U01 |
— | ||
|
15
|
15
90101-S2K-000 ScrewTAPPING, 4X16(IT) |
90101-S2K-000 |
US $1.26 |
||
|
16
|
16
90111-SDA-003 ScrewTAPPING, 3X10 |
90111-SDA-003 |
US $1.33 |
||
|
17
|
17
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
18
|
18
90665-S04-003 ClipSNAP FITTING |
90665-S04-003 |
US $1.61 |
||
|
19
|
19
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $1.60 |
||
|
20
|
20
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.88 |
||
|
21
|
21
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
22
|
22
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
23
|
23
93903-14480 ScrewTAPPING, 4X16 |
93903-14480 |
US $0.37 |
||
|
24
|
24
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
