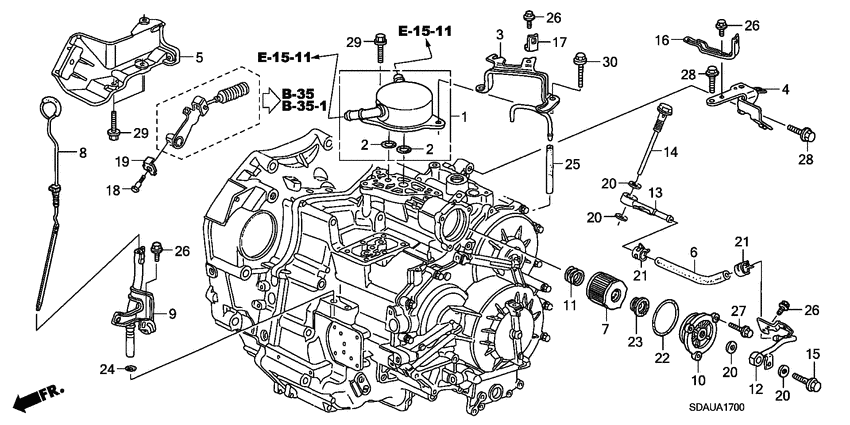

Oil level gauge/ atf pipe (V6) Diagram Honda ACCORD
- Year
- 2007
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- SIR
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19430-RCA-A51
Warmer comp.
|
19430-RCA-A51 |
— | ||
|
2
|
2
19435-P8E-A01 O-ringATF WARMER |
19435-P8E-A01 |
from US $1.61 |
||
|
3
|
3
21235-RAY-000 Bracket comp.SUB EARTH |
21235-RAY-000 |
US $13.57 |
||
|
4
|
4
21236-RAY-A00 Bracket comp.HARNESS |
21236-RAY-A00 |
US $9.24 |
||
|
5
|
5
24901-P8C-000 HolderCONTROL WIRE |
24901-P8C-000 |
US $23.55 |
||
|
6
|
6
25213-RAY-003 HoseATF, 177MM (BRIDGESTONE) |
25213-RAY-003 |
US $10.50 |
||
|
7
|
7
25450-RAY-003 Element compATF |
25450-RAY-003 |
US $15.10 |
||
|
8
|
8
25610-RAY-023 Gauge comp.ATF |
25610-RAY-023 |
US $14 |
||
|
9
|
9
25613-RAY-010 Pipe compATF GAUGE |
25613-RAY-010 |
US $13.57 |
||
|
10
|
10
25802-RAY-000 CapATF PASSAGE BODY |
25802-RAY-000 |
US $26.88 |
||
|
11
|
11
25803-RAY-000
Spring
|
25803-RAY-000 |
— | ||
|
12
|
12
25910-RAY-000 Pipe comp. aATF |
25910-RAY-000 |
US $20.10 |
||
|
13
|
13
25920-P7W-000 Pipe comp. bATF |
25920-P7W-000 |
US $13.57 |
||
|
14
|
14
25950-RAY-000 Bolt compJOINT |
25950-RAY-000 |
US $7.56 |
||
|
15
|
15
25951-RGR-000 BoltJOINT |
25951-RGR-000 |
US $5.32 |
||
|
16
|
16
32744-RCB-U50
Stay d
|
32744-RCB-U50 |
— | ||
|
17
|
17
32748-RCA-A50
Stay g
|
32748-RCA-A50 |
— | ||
|
18
|
18
90001-PA9-000 BoltHEX., 6MM |
90001-PA9-000 |
from US $1.89 |
||
|
19
|
19
90433-P0G-000 WasherLOCK, 6MM |
90433-P0G-000 |
US $2.02 |
||
|
20
|
20
90471-RGR-000 WasherDRAIN PLUG, 12MM |
90471-RGR-000 |
US $1.60 |
||
|
21
|
21
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
21
|
21
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
22
|
22
91301-RAY-004 O-ring48.5X2.95 (ARAI) |
91301-RAY-004 |
from US $4.20 |
||
|
23
|
23
91302-RAY-003 FilterGASKET |
91302-RAY-003 |
from US $3.43 |
||
|
24
|
24
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
25
|
25
95005-450-652-0 Tube4.5X65 (95005-45001-20M) |
95005-450-652-0 |
US $0.89 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
27
|
27
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
28
|
28
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
29
|
29
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
|
30
|
30
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
