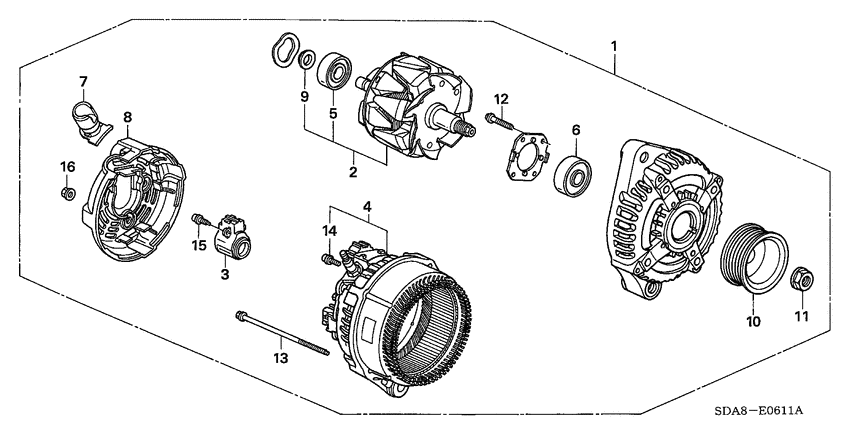

Alternator (DENSO; V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-RCB-Y02 Alternator assyCSD48) (DENSO |
31100-RCB-Y02 |
US $1,410.56 |
||
|
2
|
2
31101-RCB-Y01 Rotor assy. |
31101-RCB-Y01 |
US $279.04 |
||
|
3
|
3
31105-RAA-A01 Holder assy.BRUSH |
31105-RAA-A01 |
from US $19.60 |
||
|
4
|
4
31108-RDJ-A01 Frame assyRR. STATOR |
31108-RDJ-A01 |
US $715.52 |
||
|
5
|
5
31111-PT0-003 BearingRR. GENERATOR |
31111-PT0-003 |
from US $14.69 |
||
|
6
|
6
31114-PGK-A01 BearingFR. |
31114-PGK-A01 |
US $14.28 |
||
|
7
|
7
31119-RDJ-A01 BushINSULATION |
31119-RDJ-A01 |
US $3.78 |
||
|
8
|
8
31135-RJA-A01 CoverRR. END |
31135-RJA-A01 |
US $12.18 |
||
|
9
|
9
31138-PD1-004 CoverBEARING |
31138-PD1-004 |
from US $3.18 |
||
|
10
|
10
31141-P1E-003 Pulley |
31141-P1E-003 |
US $37.63 |
||
|
11
|
11
31142-PD1-004 NutPULLEY LOCK |
31142-PD1-004 |
from US $3.03 |
||
|
12
|
12
31146-PE9-941 Screw-washer |
31146-PE9-941 |
from US $1.40 |
||
|
13
|
13
31145-PGK-A01 Bolt |
31145-PGK-A01 |
US $2.45 |
||
|
14
|
14
31147-PGK-A01 Screw |
31147-PGK-A01 |
US $1.18 |
||
|
15
|
15
31147-PT0-003 Screw-washer |
31147-PT0-003 |
from US $1.41 |
||
|
16
|
16
90231-PGK-A01 NutHEX., 5MM |
90231-PGK-A01 |
US $1.19 |
