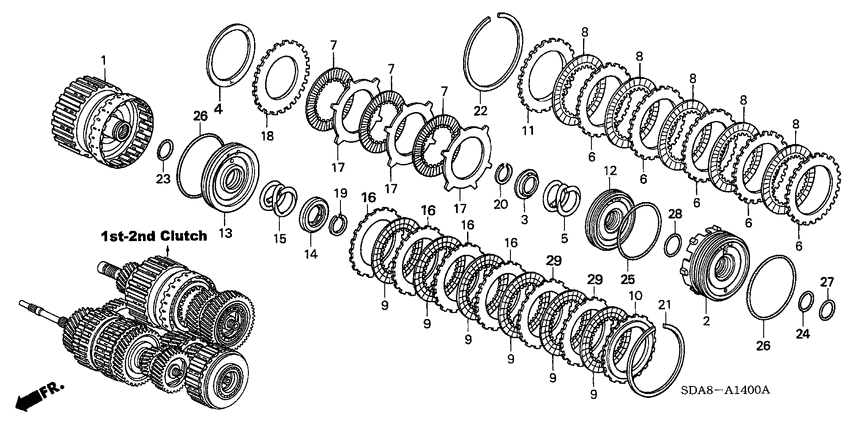

Clutch (1ST-2ND; V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22510-PGF-003 Guide compCLUTCH (1-2) |
22510-PGF-003 |
US $349.44 |
||
|
2
|
2
22520-P7W-003 Piston compLOW CLUTCH |
22520-P7W-003 |
US $82.56 |
||
|
3
|
3
22533-P7W-003 SeatRETURN SPRING |
22533-P7W-003 |
US $3.01 |
||
|
4
|
4
22537-P0Z-003
Spring
|
22537-P0Z-003 |
— | ||
|
5
|
5
22542-P7W-003
Spring
|
22542-P7W-003 |
— | ||
|
6
|
6
22543-P7W-003 PlateLOW CLUTCH |
22543-P7W-003 |
from US $9.24 |
||
|
7
|
7
22544-PX4-701 DiskCLUTCH |
22544-PX4-701 |
US $19.46 |
||
|
8
|
8
22544-P7W-003 DiskLOW CLUTCH |
22544-P7W-003 |
from US $20.10 |
||
|
9
|
9
22545-PGH-A02 DiskSECOND CLUTCH |
22545-PGH-A02 |
US $20.10 |
||
|
10
|
10
22552-PY4-003 PlateCLUTCH END (2) (2.2MM) |
22552-PY4-003 |
US $20.99 |
||
|
10
|
10
22558-PY4-003 PlateCLUTCH END (8) (2.8MM) |
22558-PY4-003 |
US $20.99 |
||
|
10
|
10
22553-PY4-003 PlateCLUTCH END (3) (2.3MM) |
22553-PY4-003 |
US $20.99 |
||
|
10
|
10
22559-PY4-003 PlateCLUTCH END (9) (2.9MM) |
22559-PY4-003 |
US $20.99 |
||
|
10
|
10
22554-PY4-003 PlateCLUTCH END (4) (2.4MM) |
22554-PY4-003 |
US $20.99 |
||
|
10
|
10
22555-PY4-003 PlateCLUTCH END (5) (2.5MM) |
22555-PY4-003 |
US $20.99 |
||
|
10
|
10
22556-PY4-003 PlateCLUTCH END (6) (2.6MM) |
22556-PY4-003 |
US $20.99 |
||
|
10
|
10
22551-PY4-003 PlateCLUTCH END (1) (2.1MM) |
22551-PY4-003 |
US $20.99 |
||
|
10
|
10
22557-PY4-003 PlateCLUTCH END (7) (2.7MM) |
22557-PY4-003 |
US $20.99 |
||
|
11
|
11
22554-P7W-003 PlateCLUTCH END (4) (3.4MM) |
22554-P7W-003 |
US $16.77 |
||
|
11
|
11
22555-P7W-003 PlateCLUTCH END (5) (3.5MM) |
22555-P7W-003 |
US $16.77 |
||
|
11
|
11
22556-P7W-003 PlateCLUTCH END (6) (3.6MM) |
22556-P7W-003 |
US $16.77 |
||
|
11
|
11
22551-P7W-003 PlateCLUTCH END (1) (3.1MM) |
22551-P7W-003 |
US $16.77 |
||
|
11
|
11
22557-P7W-003 PlateCLUTCH END (7) (3.7MM) |
22557-P7W-003 |
US $29.77 |
||
|
11
|
11
22552-P7W-003 PlateCLUTCH END (2) (3.2MM) |
22552-P7W-003 |
US $16.77 |
||
|
11
|
11
22558-P7W-003 PlateCLUTCH END (8) (3.8MM) |
22558-P7W-003 |
US $16.77 |
||
|
11
|
11
22553-P7W-003 PlateCLUTCH END (3) (3.3MM) |
22553-P7W-003 |
US $16.77 |
||
|
11
|
11
22559-P7W-003 PlateCLUTCH END (9) (3.9MM) |
22559-P7W-003 |
US $16.77 |
||
|
12
|
12
22570-P7W-003 Piston compCLUTCH (L-H) |
22570-P7W-003 |
US $49.79 |
||
|
13
|
13
22620-P7W-003 Piston compSECOND CLUTCH |
22620-P7W-003 |
US $72.83 |
||
|
14
|
14
22633-P7W-003 SeatRETURN SPRING |
22633-P7W-003 |
US $3.36 |
||
|
15
|
15
22641-P7W-003
Spring
|
22641-P7W-003 |
— | ||
|
16
|
16
22643-P7W-003 PlateSECOND CLUTCH |
22643-P7W-003 |
US $9.24 |
||
|
17
|
17
22673-P7W-003 PlateCLUTCH (L-H) |
22673-P7W-003 |
US $9.38 |
||
|
18
|
18
22675-P7W-003 Plate bCLUTCH (L-H) |
22675-P7W-003 |
US $20.99 |
||
|
19
|
19
90603-PX4-000 CirclipEXTERNAL, 47MM |
90603-PX4-000 |
US $1.40 |
||
|
20
|
20
90603-P0Z-000 CirclipEXTERNAL, 44MM |
90603-P0Z-000 |
US $2.59 |
||
|
21
|
21
90605-PY4-000 RingSNAP, 137MM |
90605-PY4-000 |
US $3.22 |
||
|
22
|
22
90605-P0Z-000 RingSNAP, 141MM |
90605-P0Z-000 |
US $4.20 |
||
|
23
|
23
91302-PX4-004 O-ring46.8X2.2 (NOK) |
91302-PX4-004 |
from US $3.26 |
||
|
24
|
24
91302-P0Z-003 O-ring44.1X2.2(NOK) |
91302-P0Z-003 |
from US $2.31 |
||
|
25
|
25
91303-PF4-004 O-ring110X2.2 (NOK) |
91303-PF4-004 |
US $4 |
||
|
26
|
26
91303-PY4-004 O-ring119.1X2.3 (NOK) |
91303-PY4-004 |
US $3.22 |
||
|
27
|
27
91303-P0Z-003 O-ring45.1X2.2 (NOK) |
91303-P0Z-003 |
US $2.31 |
||
|
28
|
28
91304-P0Z-003 O-ring52.1X2.2 (NOK) |
91304-P0Z-003 |
US $2.31 |
||
|
29
|
29
22643-RKE-003 PlateCLUTCH WAVE (1.6MM) |
22643-RKE-003 |
US $9.24 |
