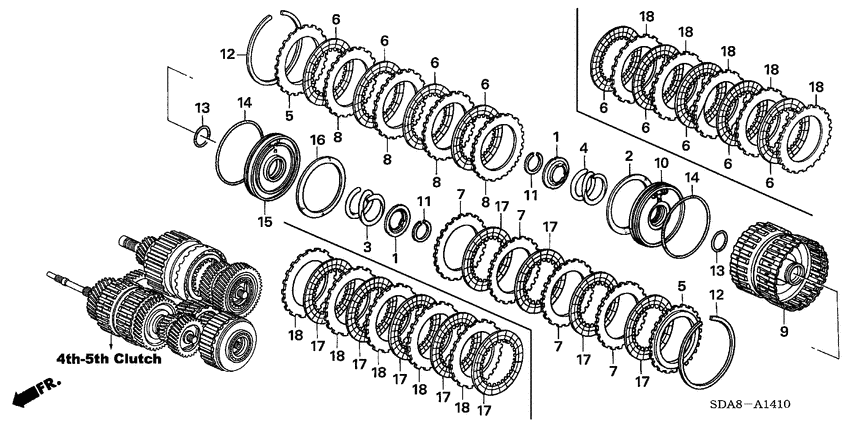

Clutch (4TH-5TH; V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22533-PX4-010 SeatRETURN SPRING |
22533-PX4-010 |
US $2.73 |
||
|
2
|
2
22539-RKE-003
Spring
|
22539-RKE-003 |
— | ||
|
3
|
3
22541-RGR-003
Spring
|
22541-RGR-003 |
— | ||
|
4
|
4
22542-RGR-003
Spring
|
22542-RGR-003 |
— | ||
|
5
|
5
22565-P7T-003 PlateCLUTCH END (5) (2.5MM) |
22565-P7T-003 |
US $16.77 |
||
|
5
|
5
22566-P7T-003 PlateCLUTCH END (6) (2.6MM) |
22566-P7T-003 |
US $16.77 |
||
|
5
|
5
22561-P7T-003 PlateCLUTCH END (1) (2.1MM) |
22561-P7T-003 |
US $16.77 |
||
|
5
|
5
22567-P7T-003 PlateCLUTCH END (7) (2.7MM) |
22567-P7T-003 |
US $29.77 |
||
|
5
|
5
22562-P7T-003 PlateCLUTCH END (2) (2.2MM) |
22562-P7T-003 |
US $16.77 |
||
|
5
|
5
22568-P7T-003 PlateCLUTCH END (8) (2.8MM) |
22568-P7T-003 |
US $29.77 |
||
|
5
|
5
22563-P7T-003 PlateCLUTCH END (3) (2.3MM) |
22563-P7T-003 |
US $16.77 |
||
|
5
|
5
22569-P7T-003 PlateCLUTCH END (9) (2.9MM) |
22569-P7T-003 |
US $16.77 |
||
|
5
|
5
22564-P7T-003 PlateCLUTCH END (4) (2.4MM) |
22564-P7T-003 |
US $16.77 |
||
|
6
|
6
22644-P7T-003 DiskCLUTCH |
22644-P7T-003 |
US $20.10 |
||
|
9
|
9
22661-RGR-013 Guide compCLUTCH (4-5) |
22661-RGR-013 |
US $303.36 |
||
|
10
|
10
22530-RAY-L01 Piston compCLUTCH |
22530-RAY-L01 |
US $61.95 |
||
|
11
|
11
90603-PX4-000 CirclipEXTERNAL, 47MM |
90603-PX4-000 |
US $1.40 |
||
|
12
|
12
90605-PY4-000 RingSNAP, 137MM |
90605-PY4-000 |
US $3.22 |
||
|
13
|
13
91302-PX4-004 O-ring46.8X2.2 (NOK) |
91302-PX4-004 |
from US $3.26 |
||
|
14
|
14
91303-P7T-003 O-ring116.7X2.2 (F.C.C) |
91303-P7T-003 |
US $4.20 |
||
|
15
|
15
22530-RAY-L01 Piston compCLUTCH |
22530-RAY-L01 |
US $61.95 |
||
|
16
|
16
22539-RKE-003
Spring
|
22539-RKE-003 |
— | ||
|
17
|
17
22644-RDG-003 DiskCLUTCH |
22644-RDG-003 |
US $20.22 |
||
|
18
|
18
22657-RGR-013 PlateCLUTCH (1.6) |
22657-RGR-013 |
US $9.66 |
