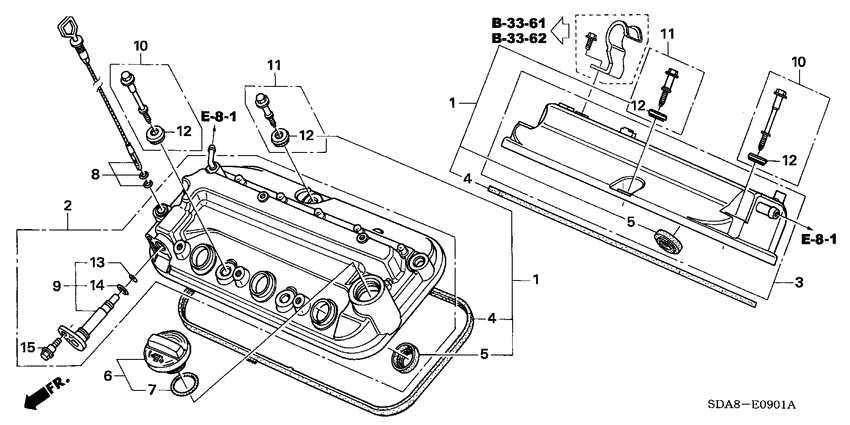

Cylinder head cover (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-RCA-A00 Packing setHEAD COVER |
12030-RCA-A00 |
US $56.19 |
||
|
2
|
2
12310-RCA-A02 Cover comp.FR. CYLINDER HEAD 00000000 - 4700586 |
12310-RCA-A02 |
US $220.16 |
||
|
2
|
2
12310-RCA-A03 Cover comp. FR. CYLINDER HEAD4700587 - |
12310-RCA-A03 |
US $279.75 |
||
|
3
|
3
12320-RCA-A00 Cover comp.RR. CYLINDER HEAD |
12320-RCA-A00 |
US $190.72 |
||
|
4
|
4
12341-RCA-A00 PackingHEAD COVER |
12341-RCA-A00 |
US $20.35 |
||
|
5
|
5
12342-RCA-A01 SealSPARK PLUG TUBE (CHICAGO RAWHIDE) |
12342-RCA-A01 |
US $4.44 |
||
| replacement | |||||
|
5
|
5
12342-RYE-004 Seal,spark plug t |
12342-RYE-004 |
from US $8.53 |
||
|
5
|
5
12342-P2F-A01 SealSPARK PLUG TUBE (NOK) |
12342-P2F-A01 |
US $5.15 |
||
| replacements | |||||
|
5
|
5
12342-P08-004 Seal |
12342-P08-004 |
from US $5.48 |
||
| replacement | |||||
|
5
|
5
12342-RYE-004 Seal,spark plug t |
12342-RYE-004 |
from US $8.53 |
||
|
5
|
5
12342-RYE-004 Seal,spark plug t |
12342-RYE-004 |
from US $8.53 |
||
|
5
|
5
12342-P08-004 Seal |
12342-P08-004 |
from US $5.48 |
||
| replacement | |||||
|
5
|
5
12342-RYE-004 Seal,spark plug t |
12342-RYE-004 |
from US $8.53 |
||
|
6
|
6
15610-P5G-000 Cap assy.OIL FILLER |
15610-P5G-000 |
US $38 |
||
|
7
|
7
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
8
|
8
15650-RJA-004 Gauge comp.OIL LEVEL |
15650-RJA-004 |
US $9.94 |
||
|
9
|
9
17130-RCA-A02 Valve assy.PCV |
17130-RCA-A02 |
from US $21.99 |
||
|
10
|
10
90010-P8A-A00 Bolt aHEAD COVER |
90010-P8A-A00 |
from US $9.16 |
||
|
11
|
11
90012-P8A-A00 Bolt bHEAD COVER |
90012-P8A-A00 |
from US $7.98 |
||
|
12
|
12
90442-P8A-A00 WasherHEAD COVER |
90442-P8A-A00 |
from US $3.96 |
||
|
13
|
13
91307-RCA-A01 O-ring10.2X1.8 |
91307-RCA-A01 |
from US $2.19 |
||
|
14
|
14
91308-RCA-A01 O-ring14.8X1.8 |
91308-RCA-A01 |
from US $3.01 |
||
|
15
|
15
90007-679-000 Bolt aTIMING BELT COVER |
90007-679-000 |
from US $2.22 |
||
