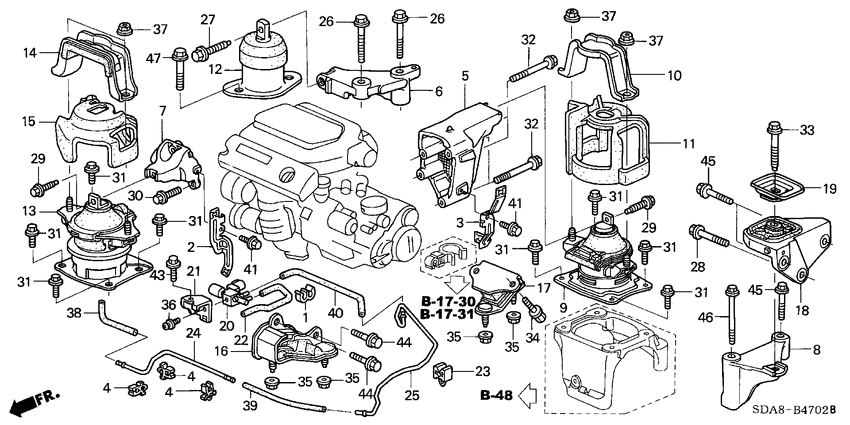

Engine mounts (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
36534-RCA-A50
Stay
|
36534-RCA-A50 |
— | ||
|
3
|
3
36536-RCA-A00
Stay
|
36536-RCA-A00 |
— | ||
|
4
|
4
46392-SL0-003 Clip d |
46392-SL0-003 |
US $1.96 |
||
|
5
|
5
50610-SDB-A01 BracketENGINE RR. MOUNTING |
50610-SDB-A01 |
US $80.64 |
||
|
6
|
6
50620-SDB-A00 BracketENGINE SIDE MOUNTING |
50620-SDB-A00 |
US $30.85 |
||
|
7
|
7
50630-SDB-A00 BracketFR. ENGINE MOUNTING |
50630-SDB-A00 |
US $57.73 |
||
|
8
|
8
50670-SDB-A01 BracketTRANSMISSION UPPER MOUNT |
50670-SDB-A01 |
US $59.52 |
||
|
9
|
9
50810-SDB-A02 Rubber assy.ENGINE RR. MOUNTING |
50810-SDB-A02 |
US $204.80 |
||
|
10
|
10
50815-SDA-A01
Stopper
|
50815-SDA-A01 |
— | ||
|
11
|
11
50819-SDB-A01 InsulatorENGINE RR. MOUNTING HEAT |
50819-SDB-A01 |
US $22.02 |
||
|
12
|
12
50820-SDB-A01 Rubber assy.ENGINE SIDE MOUNTING |
50820-SDB-A01 |
US $249.83 |
||
|
13
|
13
50830-SDB-A04 Rubber assy.FR. ENGINE MOUNTING (AT) |
50830-SDB-A04 |
US $283.86 |
||
|
14
|
14
50835-SDA-A02
Stopper
|
50835-SDA-A02 |
— | ||
|
15
|
15
50839-SDB-A01 RubberENGINE FR. MOUNTING HEAT INSULATOR |
50839-SDB-A01 |
US $21.63 |
||
|
16
|
16
50850-SDB-A00 RubberFR. TRANSMISSION LOWER MOUNTING |
50850-SDB-A00 |
from US $46.72 |
||
|
17
|
17
50860-SDB-A00 RubberRR. TRANSMISSION LOWER MOUNTING |
50860-SDB-A00 |
US $33.54 |
||
|
18
|
18
50870-SDB-A02 RubberTRANSMISSION UPPER MOUNTING |
50870-SDB-A02 |
US $81.60 |
||
|
19
|
19
50875-SDA-A11 PlateTRANSMISSION UPPER MOUNT STOPPER |
50875-SDA-A11 |
US $13.82 |
||
|
20
|
20
50913-SDA-A01
Valve assy.
|
50913-SDA-A01 |
— | ||
|
21
|
21
50931-SDB-A02
Stay
|
50931-SDB-A02 |
— | ||
|
22
|
22
50933-SDB-A02
Tube
|
50933-SDB-A02 |
— | ||
|
23
|
23
50933-SZ3-003 ClipACCUMULATOR PIPE |
50933-SZ3-003 |
US $1.61 |
||
|
24
|
24
50942-SDB-A00 Pipe |
50942-SDB-A00 |
US $11.62 |
||
|
25
|
25
50945-SDB-A01 PipeELECTRONIC CONTROL MOUNT SOLENOID |
50945-SDB-A01 |
US $14.85 |
||
|
26
|
26
90127-S73-000 BoltFLANGE, 10X60 |
90127-S73-000 |
US $4.20 |
||
|
27
|
27
90161-SDA-A01 BoltFLANGE, 12X45 |
90161-SDA-A01 |
US $2.28 |
||
|
28
|
28
90162-SDA-A00 BoltSPECIAL, 10X34 |
90162-SDA-A00 |
US $1.82 |
||
|
29
|
29
90163-SDA-A01 BoltFLANGE, 10X35 |
90163-SDA-A01 |
US $1.61 |
||
|
30
|
30
90163-SDB-A00 BoltFLANGE, 10X30 |
90163-SDB-A00 |
from US $1.61 |
||
|
31
|
31
90163-S5A-000 BoltFLANGE, 10X20 |
90163-S5A-000 |
from US $1.19 |
||
|
32
|
32
90167-SDA-A00 BoltFLANGE, 12X85 |
90167-SDA-A00 |
US $2.73 |
||
|
33
|
33
90169-SDA-A01 BoltFLANGE, 10X62 |
90169-SDA-A01 |
US $2.80 |
||
|
34
|
34
90187-SL4-000 BoltFLANGE, 10X22 |
90187-SL4-000 |
US $2.66 |
||
|
35
|
35
90371-S87-A00 NutFLANGE, 10MM |
90371-S87-A00 |
US $1.61 |
||
|
36
|
36
93892-050-081-7 Screw-washer5X8 |
93892-050-081-7 |
US $0.44 |
||
|
37
|
37
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
38
|
38
95005-351-301-0
Tube
|
95005-351-301-0 |
— | ||
| replacement | |||||
|
38
|
38
95005-352-0010S
Tube 35x200
|
95005-352-0010S |
— | ||
|
39
|
39
95005-352-651-0
Tube
|
95005-352-651-0 |
— | ||
|
40
|
40
95005-356-001-0 Tube3.5X600 (95005-35001-10M) |
95005-356-001-0 |
from US $6.07 |
||
|
41
|
41
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
43
|
43
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
44
|
44
95701-100-200-8 BoltFLANGE, 10X20 |
95701-100-200-8 |
from US $0.74 |
||
|
45
|
45
95701-100-450-8 BoltFLANGE, 10X45 |
95701-100-450-8 |
from US $0.89 |
||
|
46
|
46
95701-100-950-8 BoltFLANGE, 10X95 |
95701-100-950-8 |
from US $1.48 |
||
|
47
|
47
95701-120-650-8 BoltFLANGE, 12X65 |
95701-120-650-8 |
from US $1.48 |
||
