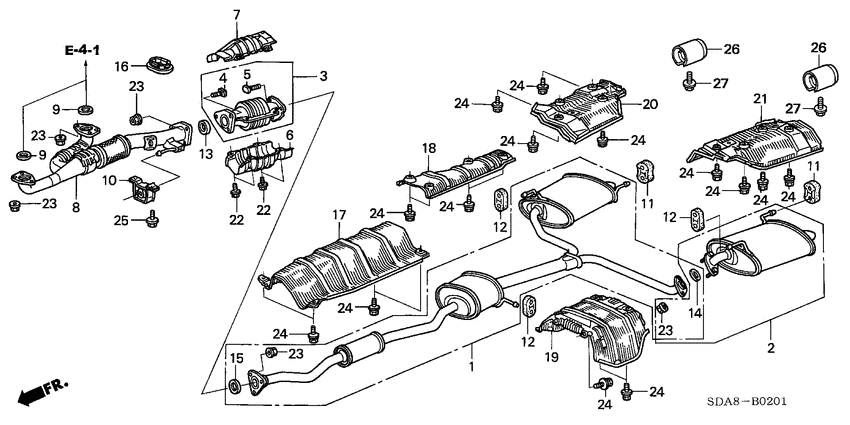

Exhaust pipe (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18030-SDB-A12
Silencer comp
|
18030-SDB-A12 |
— | ||
|
2
|
2
18035-SDB-A11
Silencer comp
|
18035-SDB-A11 |
— | ||
|
3
|
3
18160-RCA-A00 Converter comp. |
18160-RCA-A00 |
US $1,169.92 |
||
|
4
|
4
18176-PT0-003 BoltCONVERTER |
18176-PT0-003 |
US $7 |
||
|
5
|
5
18176-P08-003 BoltCONVERTER |
18176-P08-003 |
US $7 |
||
|
6
|
6
18181-RCA-A00 CoverLOWER |
18181-RCA-A00 |
US $38.27 |
||
|
7
|
7
18182-RCA-A00 CoverUPPER |
18182-RCA-A00 |
US $38.27 |
||
|
8
|
8
18210-SDB-A01 Pipe aEX. |
18210-SDB-A01 |
US $613.12 |
||
|
9
|
9
18212-SA7-003 GasketEX. PIPE (ISHINO) |
18212-SA7-003 |
from US $5.37 |
||
|
10
|
10
18215-SDA-A41 RubberEX. MOUNTING |
18215-SDA-A41 |
US $21.25 |
||
|
11
|
11
18215-S2A-000 RubberEX. MOUNTING |
18215-S2A-000 |
from US $7.55 |
||
|
12
|
12
18215-S84-A20 RubberEX. MOUNTING |
18215-S84-A20 |
from US $5.62 |
||
|
13
|
13
18393-SDB-A00 GasketPRE-CHAMBER |
18393-SDB-A00 |
US $7.49 |
||
|
14
|
14
18303-SE1-S01 GasketSILENCER |
18303-SE1-S01 |
US $6.02 |
||
|
15
|
15
18302-SP0-003 GasketEX. PIPE |
18302-SP0-003 |
from US $5.77 |
||
|
16
|
16
36533-RAA-A10 Grommet31X41 |
36533-RAA-A10 |
US $6.02 |
||
|
17
|
17
74601-SDC-A01
Plate
|
74601-SDC-A01 |
— | ||
|
18
|
18
74651-SDA-A00 PlateTANK BAFFLE |
74651-SDA-A00 |
US $19.90 |
||
|
19
|
19
74653-SDC-A00 PlatePRE SILENCER BAFFLE |
74653-SDC-A00 |
US $29.18 |
||
|
20
|
20
74654-SDB-A00 PlateR. SILENCER BAFFLE |
74654-SDB-A00 |
US $18.56 |
||
|
21
|
21
74694-SDB-A00 PlateL. SILENCER BAFFLE |
74694-SDB-A00 |
US $18.56 |
||
|
22
|
22
90023-PK1-000
Bolt
|
90023-PK1-000 |
— | ||
| replacement | |||||
|
22
|
22
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
23
|
23
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
24
|
24
93404-060-120-5
Bolt-washer
|
93404-060-120-5 |
— | ||
| replacement | |||||
|
24
|
24
93404-060-140-5 Bolt-washer6X14 |
93404-060-140-5 |
from US $0.52 |
||
|
25
|
25
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
26
|
26
18310-SDA-A01 FinisherEX. PIPE |
18310-SDA-A01 |
US $92.16 |
||
|
27
|
27
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
