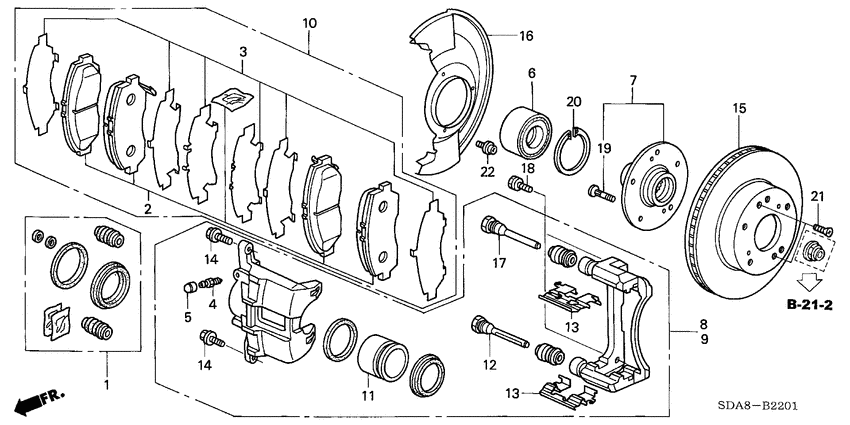

Front brake (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-S87-A00 Front Caliper Seal Set |
01463-S87-A00 |
US $35.09 |
||
|
3
|
3
06455-S3N-J00
Shim set
|
06455-S3N-J00 |
— | ||
|
4
|
4
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
5
|
5
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
6
|
6
44300-SDA-A51
Bearing assy
|
44300-SDA-A51 |
— | ||
| replacement | |||||
|
6
|
6
44300TR4A51 BEARING ASSY FR H |
44300TR4A51 |
US $94.25 |
||
|
7
|
7
44600-SDA-A10 Hub assy, FR. |
44600-SDA-A10 |
US $119.68 |
||
|
8
|
8
45018-SDD-A00 Caliper sub assy.R. FR. |
45018-SDD-A00 |
US $426.24 |
||
|
9
|
9
45019-SDD-A00 Caliper sub assy.L. FR. |
45019-SDD-A00 |
US $426.24 |
||
|
10
|
10
45022-SDR-A10 Pad setFR. |
45022-SDR-A10 |
US $140.80 |
||
|
11
|
11
45216-SM4-003 Piston |
45216-SM4-003 |
US $26.11 |
||
|
12
|
12
45235-S0K-A01 Pin a |
45235-S0K-A01 |
from US $8.68 |
||
|
13
|
13
45237-S7A-N02 Retainer |
45237-S7A-N02 |
from US $4.76 |
||
|
14
|
14
45240-SM4-003 BoltFLANGE, 10X24 |
45240-SM4-003 |
from US $2.17 |
||
|
15
|
15
45251-SDC-A00
Disk
|
45251-SDC-A00 |
— | ||
| replacement | |||||
|
15
|
15
45251TA0A02 DISK FR BRAKE |
45251TA0A02 |
from US $131.92 |
||
|
16
|
16
45255-SDA-000 GuardFR. SPLASH |
45255-SDA-000 |
US $37.70 |
||
|
17
|
17
45262-S0K-A01 Pin b |
45262-S0K-A01 |
from US $8.68 |
||
|
18
|
18
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.03 |
||
|
19
|
19
90113-SA0-006 BoltWHEEL (SAGA) |
90113-SA0-006 |
from US $2.59 |
||
| replacement | |||||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.93 |
||
| replacement | |||||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-S5H-005 BoltWHEEL (THAI MEIRA) |
90113-S5H-005 |
from US $3.70 |
||
|
20
|
20
90681-SDA-A00 CirclipSPECIAL INTERNAL, 86MM |
90681-SDA-A00 |
US $9.61 |
||
|
21
|
21
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
22
|
22
93892-060-140-8 Screw-washer6X14 |
93892-060-140-8 |
from US $0.52 |
||
