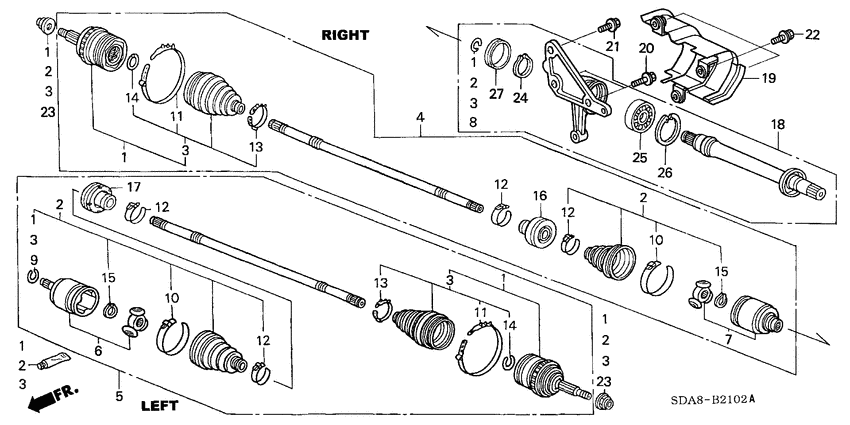

Front driveshaft/half sha ft (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44014-SDC-A50 Joint setOUTBOARD |
44014-SDC-A50 |
US $373.06 |
||
|
1
|
1
44014-SDD-A00 Joint setOUTBOARD |
44014-SDD-A00 |
US $344.32 |
||
|
2
|
2
44017-S3X-000
Boot set
|
44017-S3X-000 |
— | ||
| replacement | |||||
|
2
|
2
44017-S3X-010 Boot set |
44017-S3X-010 |
US $80.04 |
||
|
2
|
2
44017-S3X-900
Boot set
|
44017-S3X-900 |
— | ||
| replacement | |||||
|
2
|
2
44017-S3X-901 Boot set |
44017-S3X-901 |
US $71.40 |
||
|
3
|
3
44018-S9A-000
Boot set
|
44018-S9A-000 |
— | ||
| replacement | |||||
|
3
|
3
44018-S9A-020 Boot set |
44018-S9A-020 |
US $87.52 |
||
|
3
|
3
44018-S1K-C01
Boot set
|
44018-S1K-C01 |
— | ||
| replacement | |||||
|
3
|
3
44018-S1K-C03 Boot set |
44018-S1K-C03 |
US $71.40 |
||
|
4
|
4
44305-SDD-A00 Driveshaft assy.R. |
44305-SDD-A00 |
US $771.84 |
||
|
5
|
5
44306-SDD-A00 Driveshaft assy.L. |
44306-SDD-A00 |
US $771.84 |
||
|
6
|
6
44310-S3X-900 Joint compINBOARD |
44310-S3X-900 |
US $308.48 |
||
|
7
|
7
44310-S9A-900
Joint comp
|
44310-S9A-900 |
— | ||
| replacement | |||||
|
7
|
7
44310-SDA-A61 JOINT COMPINBOAR |
44310-SDA-A61 |
US $379.98 |
||
|
8
|
8
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44319-S1K-300
Set ring
|
44319-S1K-300 |
— | ||
|
10
|
10
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
11
|
11
44327-SX0-C02 BandOUTBOARD BOOT (NIPPON HATSUJO) |
44327-SX0-C02 |
US $7.98 |
||
|
12
|
12
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
13
|
13
44329-SX0-C02 BandDRIVESHAFT (NIPPON HATSUJO) |
44329-SX0-C02 |
US $6.19 |
||
|
14
|
14
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
US $1.75 |
||
|
15
|
15
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
16
|
16
44351-S4X-003 DamperDYNAMIC |
44351-S4X-003 |
US $24.58 |
||
|
17
|
17
44351-S3N-003 DamperDYNAMIC |
44351-S3N-003 |
US $24.83 |
||
|
18
|
18
44500-SDB-A00
Shaft assy
|
44500-SDB-A00 |
— | ||
|
19
|
19
44517-SDB-A00 Cover comp.HEAT |
44517-SDB-A00 |
US $29.06 |
||
|
20
|
20
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
21
|
21
90165-SE0-000
Bolt
|
90165-SE0-000 |
— | ||
|
22
|
22
90165-S5B-003 BoltFLANGE, 8X24 |
90165-S5B-003 |
US $1.61 |
||
|
23
|
23
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
from US $6.35 |
||
|
24
|
24
90681-SR3-000 CirclipEXTERNAL, 33MM |
90681-SR3-000 |
from US $2.66 |
||
|
25
|
25
91057-SR3-008 BearingHALF SHAFT(NTN) |
91057-SR3-008 |
from US $14.65 |
||
|
26
|
26
94520-55000 CirclipINTERNAL, 55MM |
94520-55000 |
from US $1.48 |
||
|
27
|
27
91260-SDB-A01 SealHALF SHAFT OUTER(NOK) |
91260-SDB-A01 |
from US $7.49 |
||
